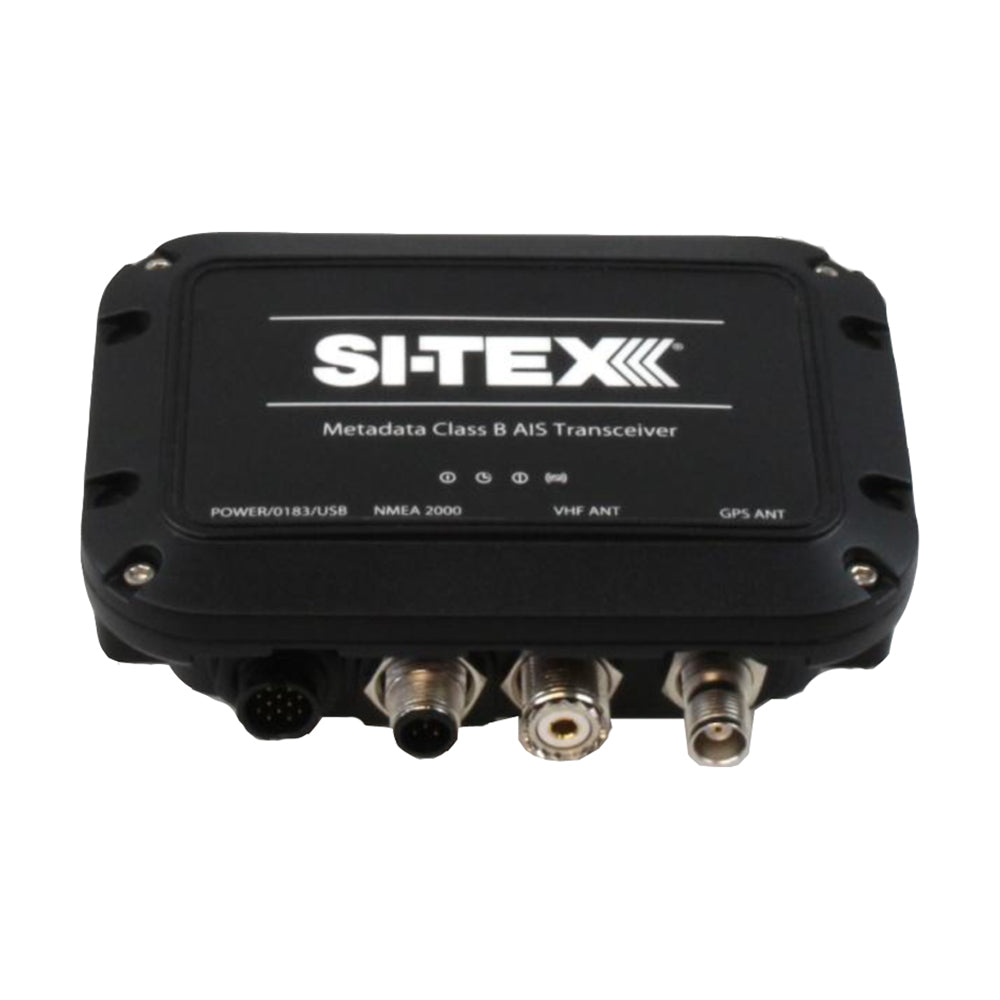

SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed

The SI-TEX MDA-1 Metadata is a Class B AIS transceiver for vessels that need to send and receive AIS data. It uses a compact waterproof module with an internal 50-channel GPS smart antenna and supports NMEA0183, NMEA2000 and USB connections.

Units sold in the US must be programmed by a qualified technician as required by the FCC. Programming requires a completed form, a copy of the MMSI Registration or FCC Ship Station License, and the vessel master or owner's signature.

• Brand: SI-TEX
• Model: MDA-1 Metadata
• Product type: Class B AIS transceiver
• Module size: 5.5" x 3.9" x 1.9"
• Waterproof rating: IPx7
• AIS engine: Rmax Class B
• GPS: Internal 50-channel GPS smart antenna
• Mounting note: Mount with a clear view of the sky when using the internal GPS antenna
• Power: 12 to 24V DC
• Power consumption: 150mA @12VDC, <2W average
• Interfaces: USB, NMEA2000, IEC61162-1 NMEA0183 output at 38400 baud, IEC61162-1 NMEA0183 input at 4800 baud
• Input: Silent mode switch input
• Included: 2m power and NMEA0183 cable, user manual and quick start guide, product CD, fixing screws
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns.
