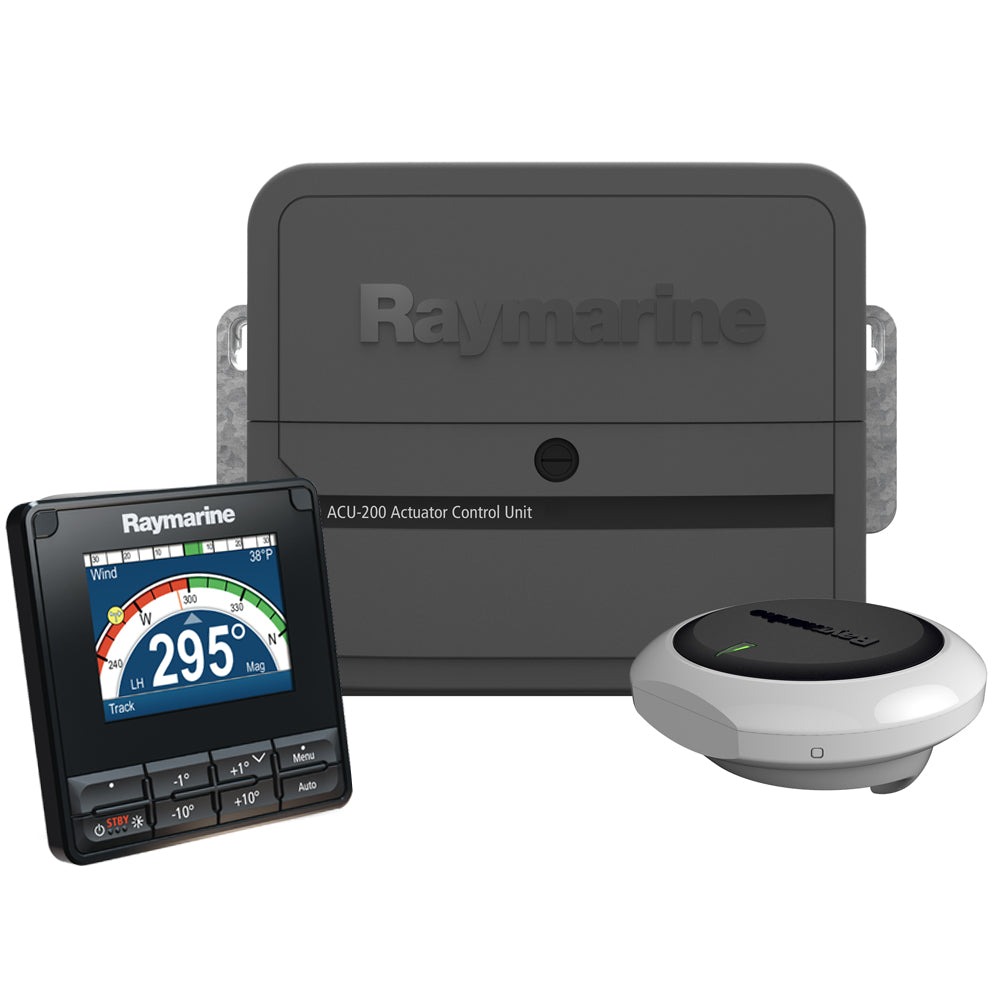

Raymarine EV-200 Sail Evolution Autopilot

The Raymarine EV-200 Sail Evolution Autopilot is a sailboat autopilot package built around Raymarine's Evolution sensor core and p70s control head. It is intended for installations using a Type 1 Linear or Rotary Drive Unit, which is sold separately, and supports 12V or 24V DC vessel systems.

The EV-1 sensor core monitors vessel motion in three dimensions, while the p70s gives sailors push-button control through Raymarine's LightHouse interface. The kit also includes the ACU-200 actuator control unit, rudder reference, cabling, and mounting hardware needed for the listed system components.

• Autopilot package: EV-200 Sail Evolution system
• Drive compatibility: Use with any Type 1 Linear or Rotary Drive Unit, sold separately
• Power: 12V or 24V DC operation
• Networking: SeaTalk ng network compatible
• ACU: ACU-200 provides auxiliary power to the SeaTalk ng network
• Included control head: p70s Autopilot Controller with push-button operation
• Included components: EV-1 Sensor Core, p70s Autopilot Control Head, ACU-200 Actuator Control Unit, M81105 Rotary Rudder Reference, Evolution Cabling Kit, EV Unit O-Ring Pack, and wall mounting bracket
• Sensor core: 9-axis solid-state sensor monitors heading, pitch, roll, and yaw
• EV-1 installation: Mounts above or below deck
• EV-1 protection: Fully sealed enclosure built to IPX6 and IPX7 waterproofing and submersion standards
• Accuracy: Solid-state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Display support: Provides heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
• p70s viewing: 160 degree viewing angles with anti-reflective coating
• p70s power use: Typically 132mA/1.6W
• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Setup: Startup wizard supports pilot configuration
• Dimming: Supports system and group dimming and illumination
• Data: Supports multiple data sources through SeaTalk ng
