Raymarine EV-100 Wheel Evolution Autopilot

The Raymarine EV-100 Wheel Evolution Autopilot is a packaged wheel-pilot system for sailboats with 12V DC electrical systems. It is intended for boats up to 16,500 lbs and includes the core pilot components needed for a wheel-drive Evolution setup.

The system uses Raymarine's EV-1 sensor core to track vessel motion and connect with the included control head and actuator control unit over SeaTalk ng. The p70s controller provides push-button autopilot operation with supported modes for sailing and navigation use.

• Boat rating: for vessels up to 16,500 lbs (7,500 kg)
• Power system: 12V DC
• Wheel compatibility: fits most sailboat wheels
• Drive style: wheel drive with simple clutch engagement
• Autopilot technology: Evolution Ai with no calibration required
• Included controller: p70s Autopilot Control Head

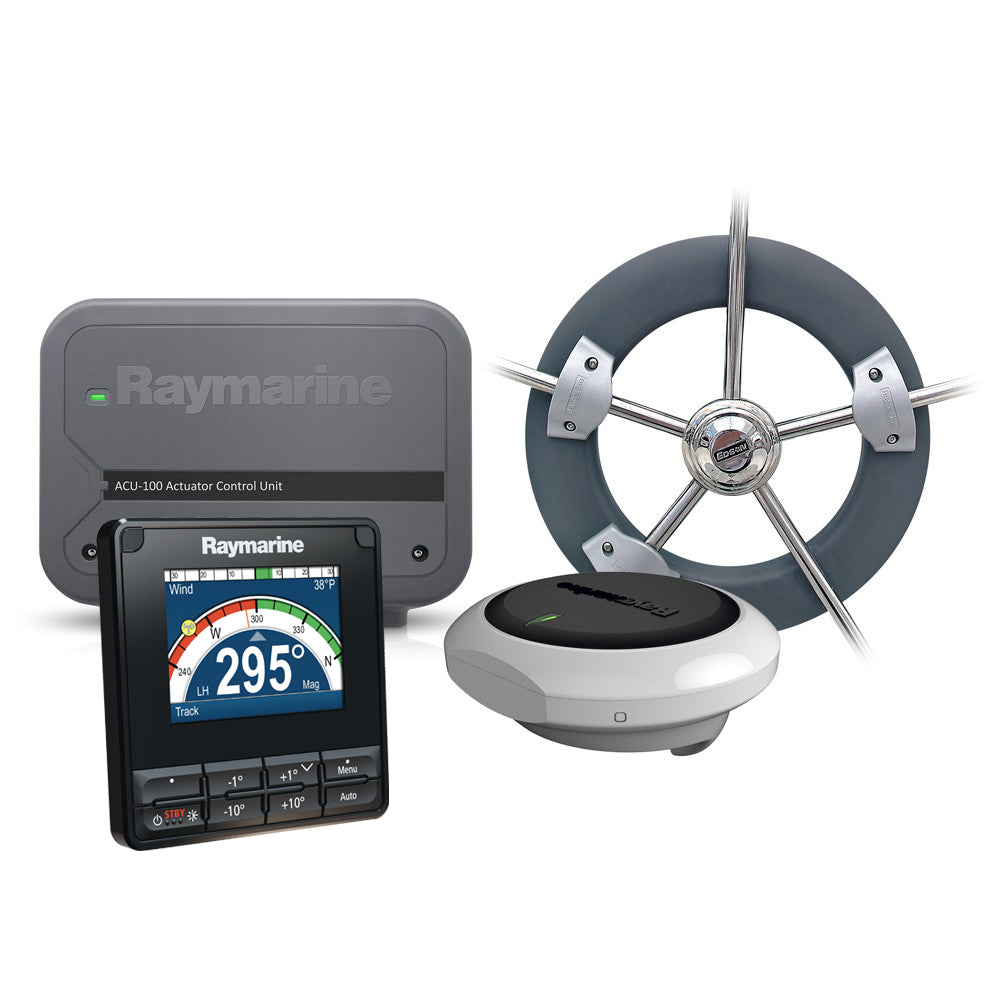

• Included components: EV-1 Sensor Core, p70s Autopilot Control Head, ACU-100 Actuator Control Unit, Wheel Drive and Evolution cabling kit
• Additional included parts: EV Unit O-Ring Pack, set of 2, and wall mounting bracket
• EV-1 sensor: 9-axis sensing for heading, pitch, roll and yaw
• Sensor mounting: suitable above or below deck
• Waterproof rating: EV sensor enclosure is sealed to IPX6 and IPX7 standards
• Networking: SeaTalk ng connection with support for SeaTalk ng, NMEA2000 and SeaTalk1 connectivity
• Sensor accuracy: solid-state sensor technology with dynamic accuracy within 2 degrees in all conditions
• Controller display: 160 degree viewing angles with anti-reflective coating
• Controller power draw: typically 132mA / 1.6W
• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer and Jog Steer
