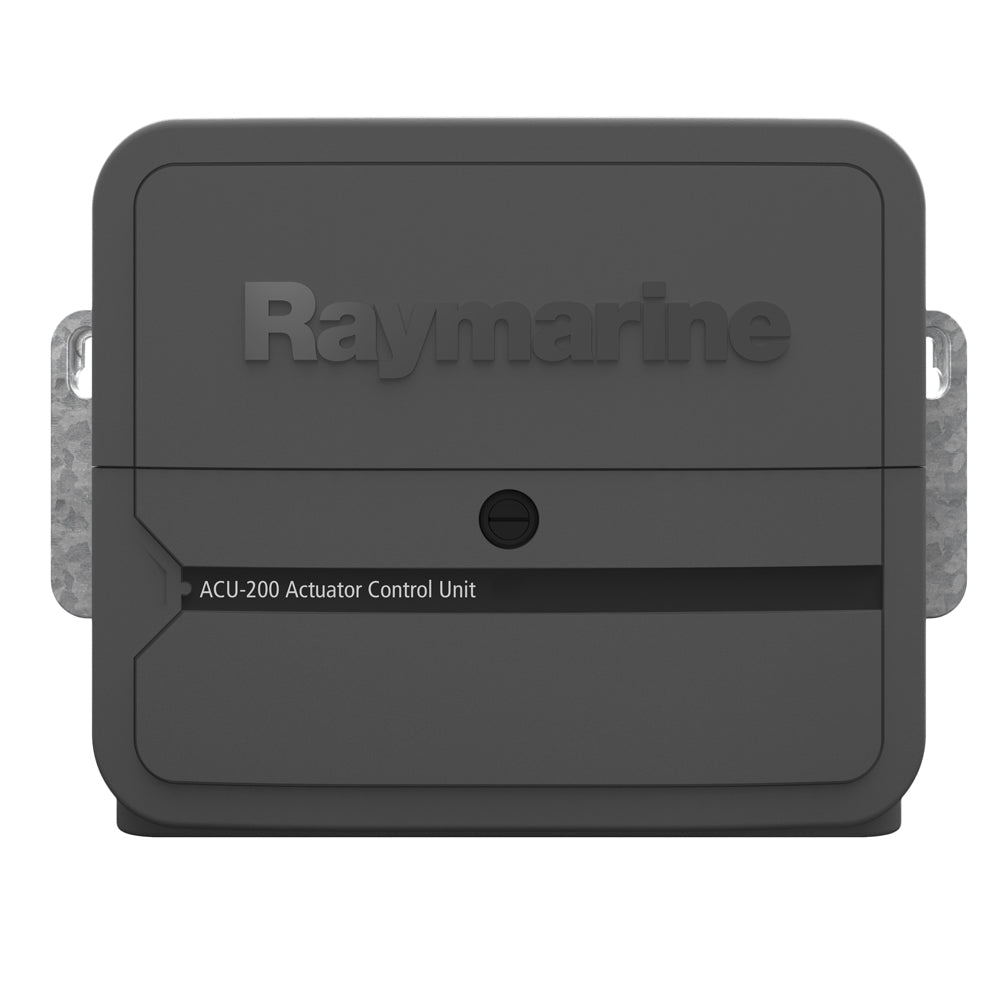

• Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives
1 1

Raymarine

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

OM-RAYMARINE-ACU200ACUATOR-E70099

$862.52
$999.99 $862.52
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Raymarine Authorized Reseller
Authorized Raymarine ResellerGenuine Raymarine product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

PartsType

Power your boat's autopilot drive and SeaTalk ng bus with the Raymarine ACU-200 actuator control unit. It suits steering installations using Type 1 hydraulic, linear or rotary mechanical drives.

Key features

  • Supplies up to 15 amps continuously to operate the autopilot drive.
  • Selectable 12V or 24V clutch output accommodates the drive's clutch supply requirements.
  • Provides a fuse-protected 12V power output for the SeaTalk ng bus.
  • Accepts a nominal 12V or 24V supply for installation in either electrical system.

Specifications

  • Model: ACU-200
  • Drive compatibility: Type 1 hydraulic, linear and rotary mechanical drives
  • Maximum continuous drive output: 15A at supply voltage
  • Continuous clutch output: Up to 2.0A; selectable 12V or 24V
  • Nominal supply: 12V or 24V
  • Operating voltage: 10.8–31.2V DC
  • Main supply standby consumption: 300mA at 12V/24V
  • SeaTalk ng supply standby consumption: 20mA at 12V
  • SeaTalk ng LEN: 1
  • SeaTalk ng power output: 3A at 12V; 3A fuse protection
  • Data connection: SeaTalk ng
  • Operating temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage temperature: -30°C to +70°C (-22°F to +158°F)
  • Maximum relative humidity: 93%
  • Water resistance: Drip resistant
  • Dimensions (W x H x D): 285 x 211.5 x 64.5mm (11.2 x 8.3 x 2.5 in)
  • Weight: 2.2kg (4.84lbs)
  • European conformance: 2004/108/EC
  • Australia and New Zealand conformance: C-Tick, Compliance Level 2

Good to know

The M81105 Rotary Rudder Reference is included.

Specifications

TypeParts
BrandRaymarine
Manufacturer part #E70099
UPC723193768914
Boxed dimensions17 x 11 x 7 in
Shipping weight6.8 lb
Country of originHUNGARY
