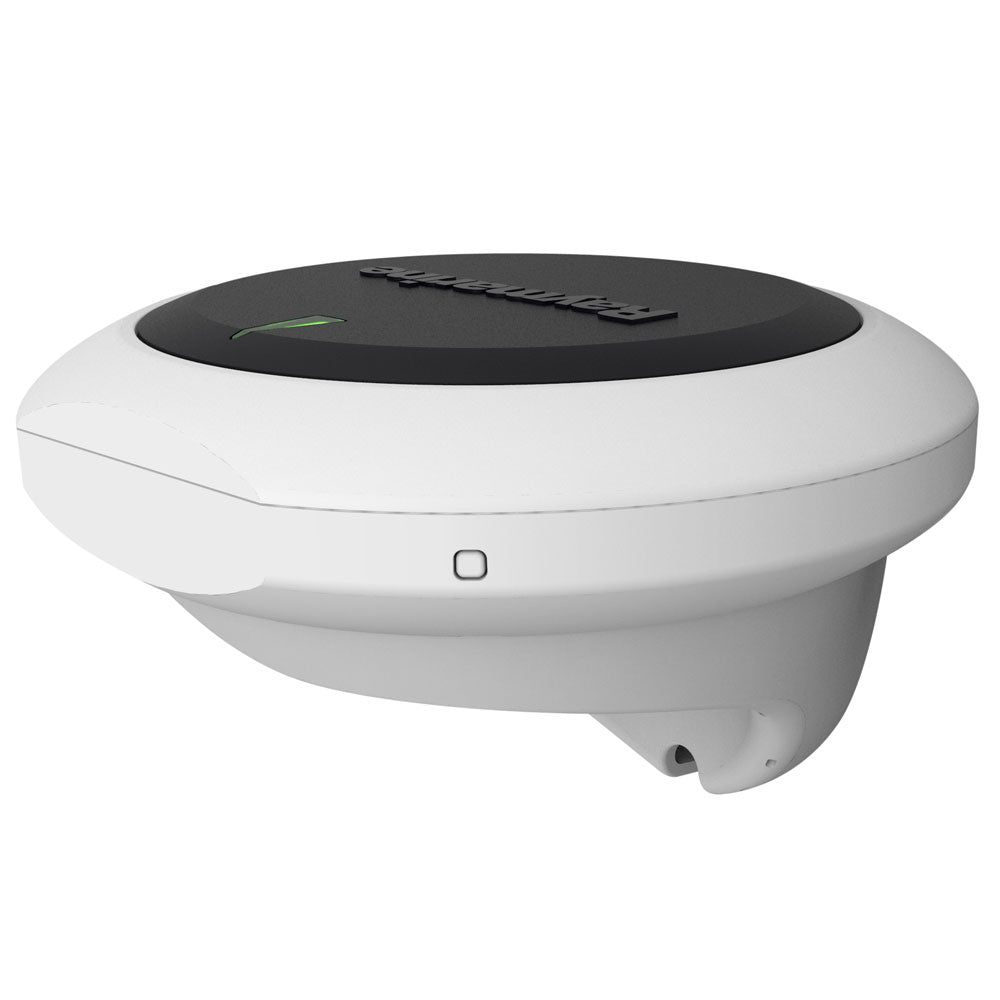

Raymarine EV-1 Sensor Core

The Raymarine EV-1 Sensor Core is the central motion and heading sensor for Evolution mechanical and hydraulic autopilot systems. It uses a 9-axis sensor package in a sealed housing to monitor vessel movement and provide heading data for connected Raymarine systems.

• System compatibility: Evolution mechanical and hydraulic autopilot systems
• Sensor type: 9-axis sensor core
• Motion data: Monitors heading, pitch, roll and yaw
• Installation: Can be mounted above deck or below deck
• Water protection: Sealed enclosure built to IPX6 and IPX7 waterproofing and submersion standards
• Networking: SeaTalkng connection for power and data to the Evolution ACU, control head, extended SeaTalkng and NMEA2000 networks
• Accuracy: Solid-state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Compensation: Auto-compensation for onboard magnetic fields
• Display support: Provides heading data for MARPA, radar overlay and heading modes on Raymarine multifunction displays
