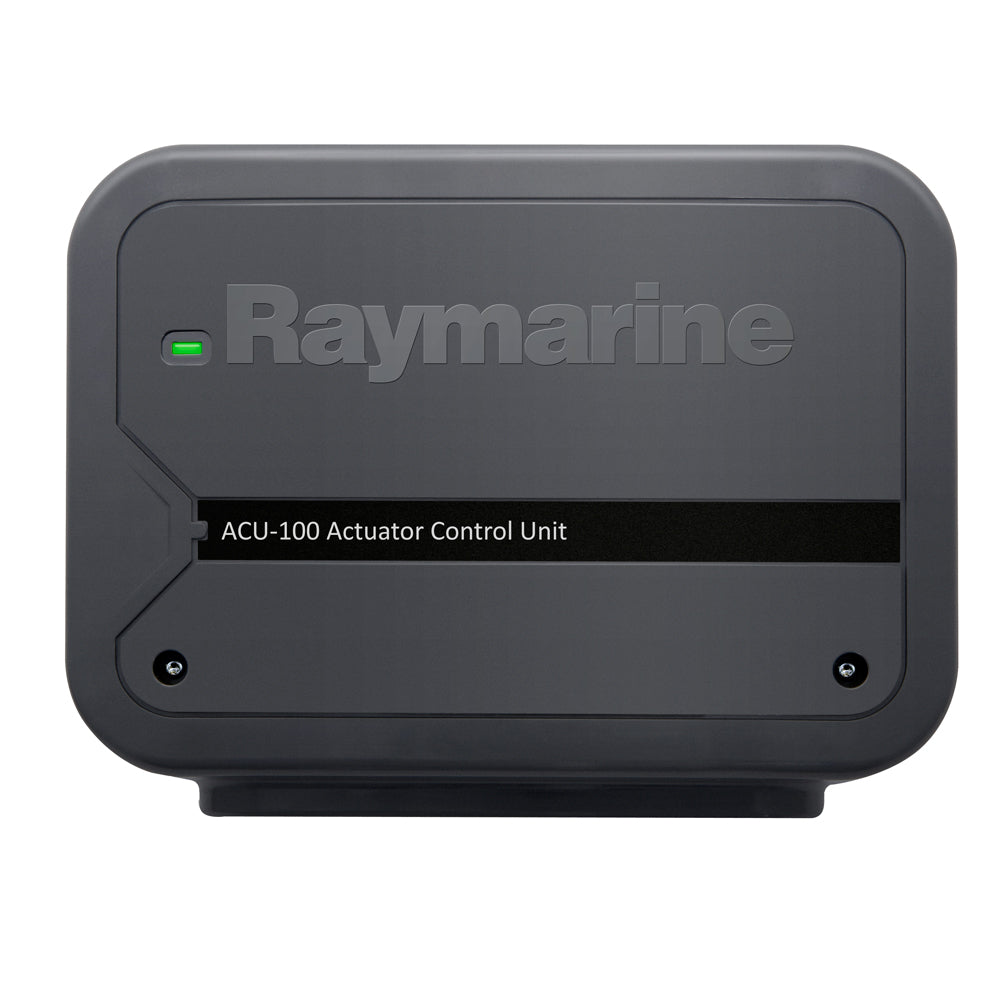

Raymarine ACU-100 Actuator Control Unit

Raymarine ACU-100 Actuator Control Unit

OM-RAYMARINE-ACU100ACTUATOR-E70098

$565.58
$649.99 $565.58
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Raymarine Authorized Reseller
Authorized Raymarine ResellerGenuine Raymarine product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

PartsType
Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections
  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalkng Power Supply
No power supply to SeaTalkng
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
No power supply to SeaTalkng
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
  • Connector Panel: IPX2
  • Drive Electronics: IPX6


Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2

Specifications

TypeParts
BrandRaymarine
Manufacturer part #E70098
UPC723193768907
Boxed dimensions12 x 8 x 4 in
Shipping weight2.0 lb
Country of originCHINA

Manuals & documents

Installation guidePDF ↓
