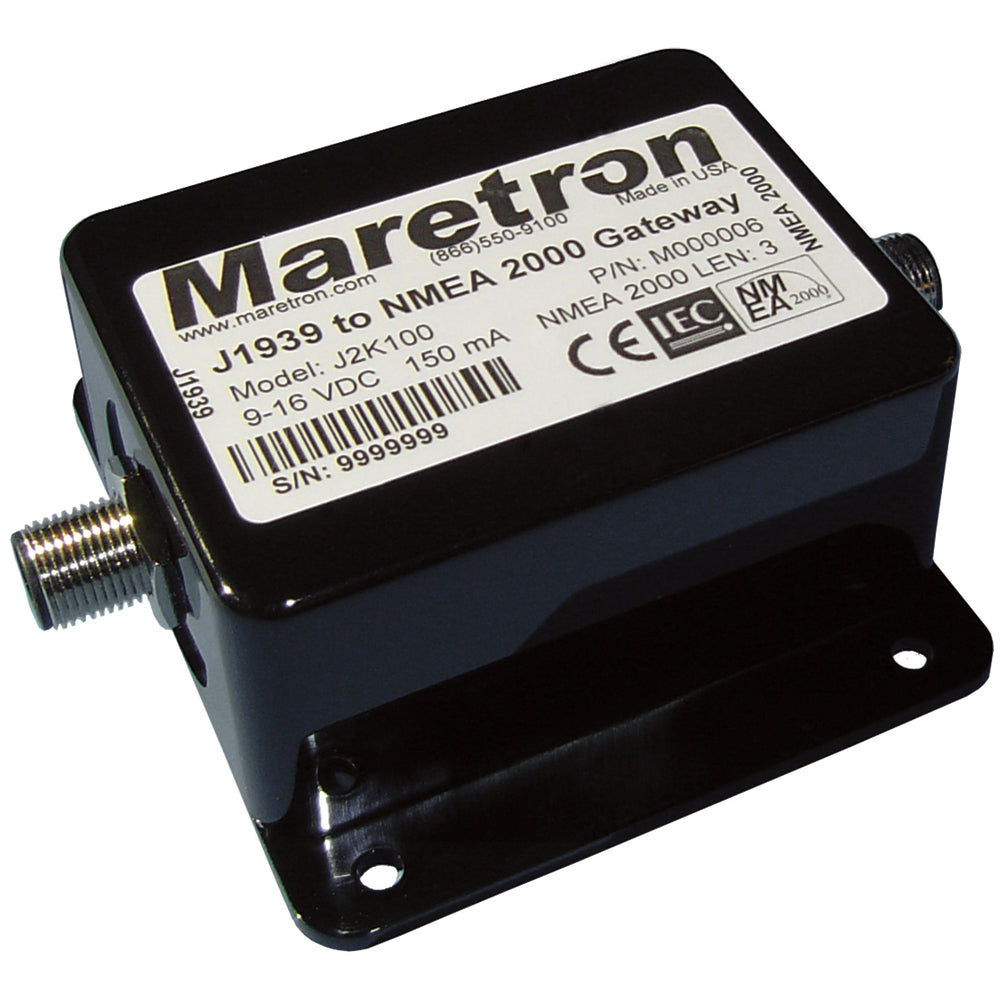

Maretron J2K100 NMEA 2000® / J1939 Bridge

Bring data from compatible engines, transmissions and gensets onto your boat's NMEA 2000 network with the Maretron J2K100 bridge. It translates J1939 data for viewing on compatible NMEA 2000 displays around the vessel, helping you monitor machinery from different locations.

Key features

• Routes machinery data through a single NMEA 2000 cable for monitoring throughout the boat.
• Listens to J1939 traffic without sending messages onto that network, leaving existing control and status communications undisturbed.
• Draws its power from NMEA 2000, so it places no power demand on the J1939 network.
• Supports monitoring of engine operating information, transmission readings and AC generator output.
• Works with the Maretron DSM200 and GPS100 as a fuel-computer system displaying gallons per hour and/or miles per gallon.

Specifications

• Brand: Maretron
• Model: J2K100
• Data conversion: J1939 to NMEA 2000
• Equipment compatibility: Compatible J1939 engines, transmissions and gensets
• Power source: NMEA 2000 interface
• J1939 operation: Receive only
• AC generator data: Current, frequency and voltage
• Engine data: Tachometer, hours, coolant pressure, coolant water temperature, oil pressure, oil temperature, boost pressure, fuel rate, percent torque and rated speed
• Identification data: VIN and software ID
• Transmission data: Gear, oil pressure and oil temperature

Good to know

The fuel-computer configuration uses the J2K100 together with a Maretron DSM200 universal display and GPS100 GPS antenna/receiver. Machinery data can be viewed on NMEA 2000 compatible displays.
