• Maretron Micro Double-Ended Cordset - 0.5M
1 1

Maretron

Maretron Micro Double-Ended Cordset - 0.5M

Maretron Micro Double-Ended Cordset - 0.5M

OM-MARETRON-MICRODOUBLEEND-CMCG1CF005

$44.61
$44.61
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
Backbone/Drop CablesNMEA 2000 Connectors

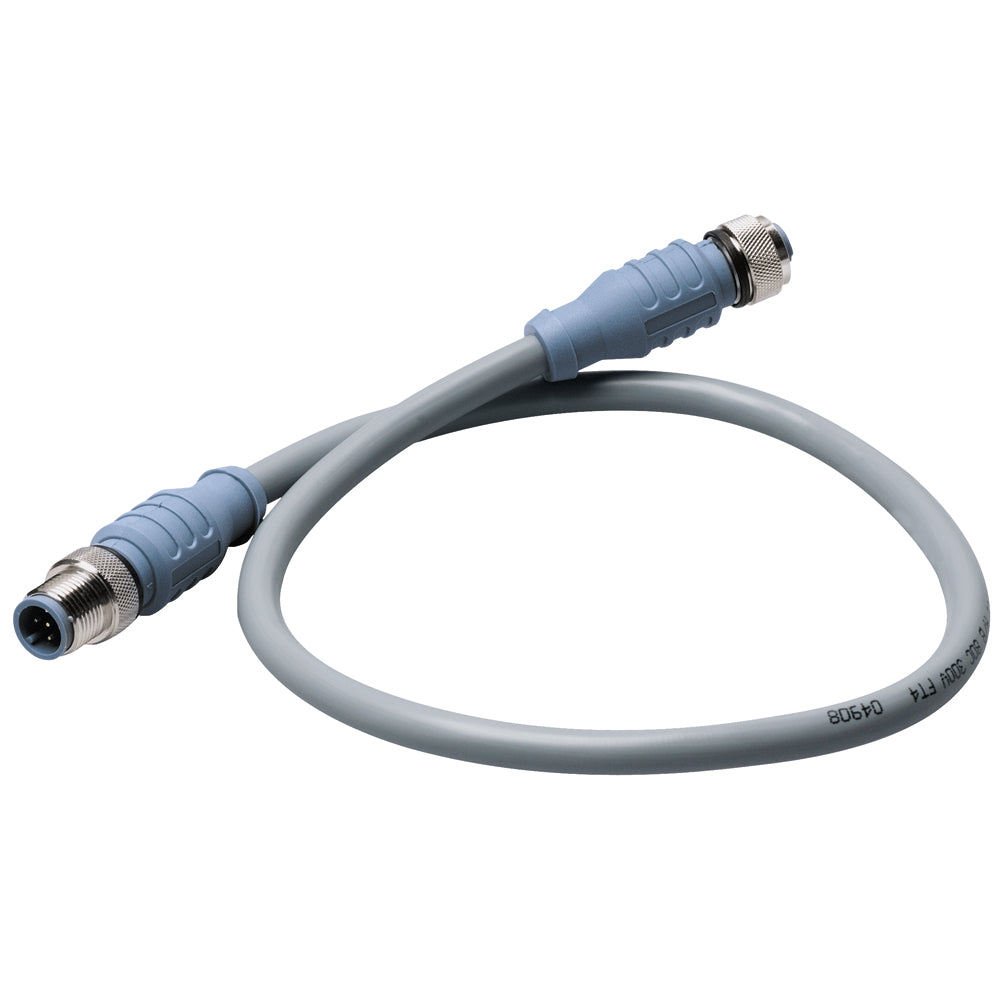

The Maretron Micro Double-Ended Cordset is a 0.5 meter marine network cable for NMEA 2000 installations. It combines molded thermoplastic PUR connector components with a gray PVC jacket and multiple shielding layers.

  • Product: Micro double-ended cordset
  • Length: 0.5M
  • Mechanical contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Connector outside diameter: 0.59 inch
  • Current rating: 4.0 Amps
  • Voltage rating: 250 V
  • Cable outer jacket: PVC, gray
  • Conductor insulation: HDPE data pair and SRPVC power pair
  • Conductors: 4X22 AWG plus 22 AWG drain wire
  • Shielding: Overall foil, power pair foil and data pair foil
  • Environmental protection: IEC IP68 and NEMA 1, 3, 4, 6P
  • Temperature rating: -40° C to 80° C, -40° F to 176° F
  • Approvals: UL PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V; CSA CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4; NMEA 2000 Approved

Specifications

Data InterfaceNMEA 2000
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-00.5
UPC873804001500
Boxed dimensions7 x 5 x 1 in
Shipping weight0.1 lb
Country of originMEXICO
