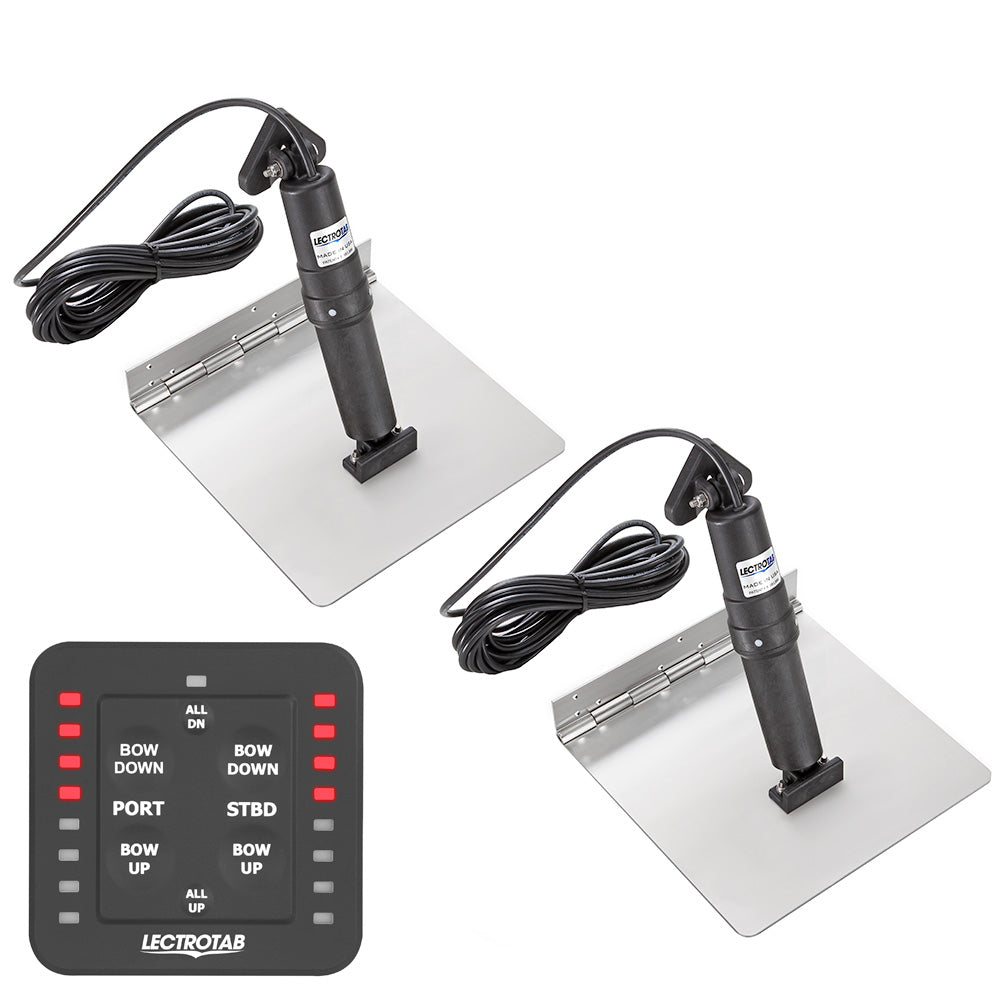

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 24

One-touch leveling and 12 x 24-inch stainless steel tabs come together in this Lectrotab XKA trim tab kit. For owners of boats from 28 to 48 feet, it provides precise tab positioning through quiet electric actuators with no hydraulic oil to leak.

Key features

• Adjust leveling through the included one-touch LED control.
• Rolled, pinned hinges strengthen the tab assembly without requiring welds.
• Maintenance-free electric actuators handle tab movement without hydraulics.
• Internal braking keeps the tabs from shifting unintentionally when cruising or backing down.
• The ram seal's upper location protects it from damage associated with ram fouling and barnacle growth.
• Non-metallic, permanently sealed actuator enclosures withstand corrosion, sunlight and underwater exposure.

Specifications

• Model: XKA
• Tab dimensions (L x W): 12 x 24 inches (30 x 61 cm)
• Boat length: 28–48 feet (8.5–14.5 m)
• Tab material: 12-gauge 304 stainless steel
• Actuator voltage: 12 V DC
• Actuator stroke: 2.25 inches (57 mm)
• Actuator cable length: 23 feet (7 m)
• Actuator vertical height: 11.875 inches (302 mm)
• Actuator push-force load test: 1000 lb
• Rocker switch dimensions (W x H): 3 x 3 inches (77 x 77 mm)
• Rocker switch cutout (H x W): 2.25 x 2.5 inches
• Rocker switch operating voltage: 12 or 24 V

Good to know

Package contents are one One-Touch Control, a pair of stainless steel tabs, two actuators with 23-foot (7 m) cables and an instruction manual. Use the 12 V DC actuator rating when planning power; the separate control rating is 12 or 24 V.
