• Lectrotab XKA Stainless Steel Trim Tab - 12 x 24
1 1

Lectrotab

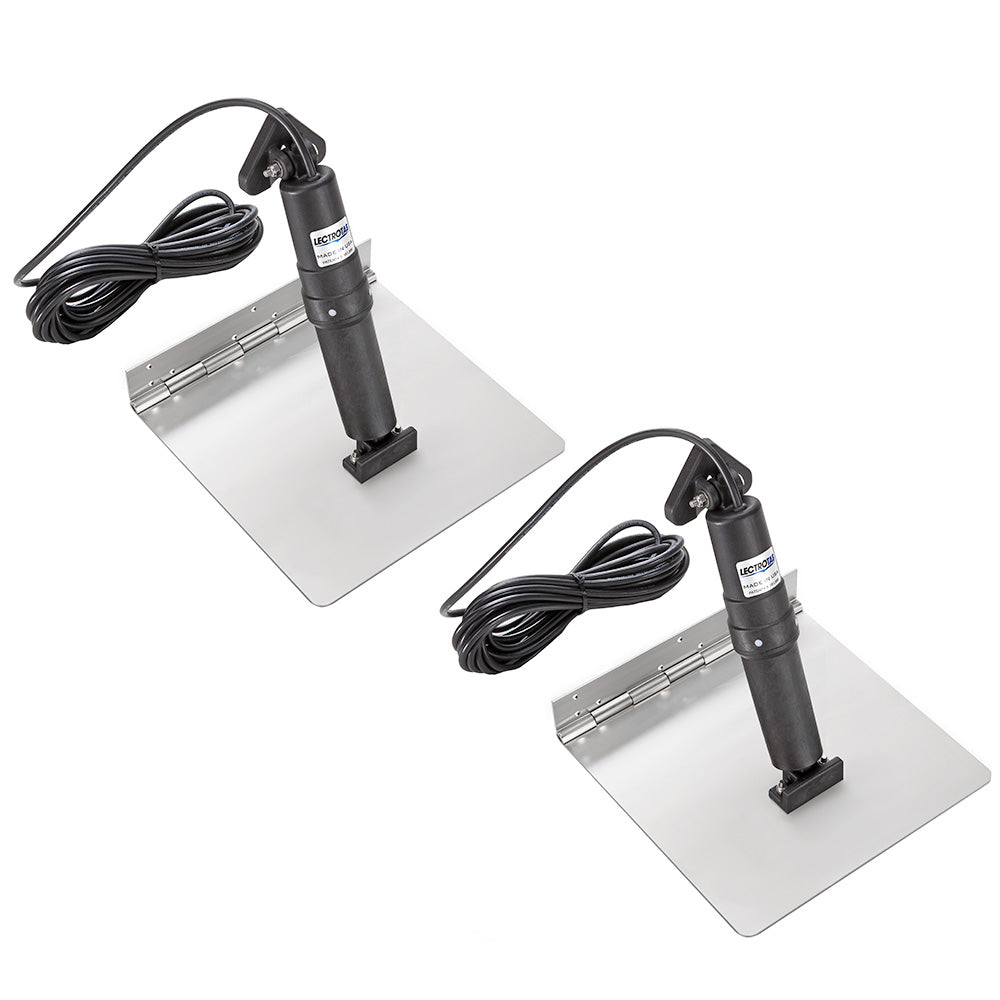

Lectrotab XKA Stainless Steel Trim Tab - 12 x 24

Lectrotab XKA Stainless Steel Trim Tab - 12 x 24

OM-LECTROTAB-XKASTAINLESSST-XKA12X24

$1,240.87
$1,782.00 $1,240.87
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

Electro-MechanicalActuator Type
Stainless SteelConstruction

Adjust tab position on a 28–48 foot boat with the Lectrotab XKA 12 x 24 stainless steel trim tab kit. Two electric actuators move the tabs quietly, using a non-hydraulic design that requires no oil and keeps the actuator assembly self-contained.

Key features

  • Weld-free hinges use a continuous rolled section and pin to give the tabs added strength.
  • Built-in actuator brakes prevent unwanted tab movement when moving ahead or backing down.
  • Protected upper ram seals avoid damage caused by fouling or barnacles on the ram.
  • Non-metallic actuator exteriors withstand corrosion, sunlight and underwater exposure.
  • Sealed actuators combine internal pressure equalization with maintenance-free operation.
  • No actuator components need to be installed inside the boat, simplifying the installation layout.

Specifications

  • Model: XKA
  • Tab length x width: 12 x 24 inches (30 x 61 cm)
  • Boat length: 28–48 feet (8.5–14.5 m)
  • Tab material: 12-gauge 304 stainless steel
  • Actuator supply: 12 V DC
  • Actuator stroke: 2.25 inches (57 mm)
  • Actuator cable length: 23 feet (7 m)
  • Actuator vertical height: 11.875 inches (302 mm)
  • Actuator load test: 1,000 lb pushing force

Good to know

Supplied contents are two stainless steel tabs, two actuators with 23-foot cables and an instruction manual. A control switch is not supplied.

Specifications

Actuator TypeElectro-Mechanical
ConstructionStainless Steel
BrandLectrotab
Manufacturer part #XKA12X24
UPC850046155703
Boxed dimensions21 x 16 x 5 in
Shipping weight31.3 lb
