Overview

100/32aAmperage

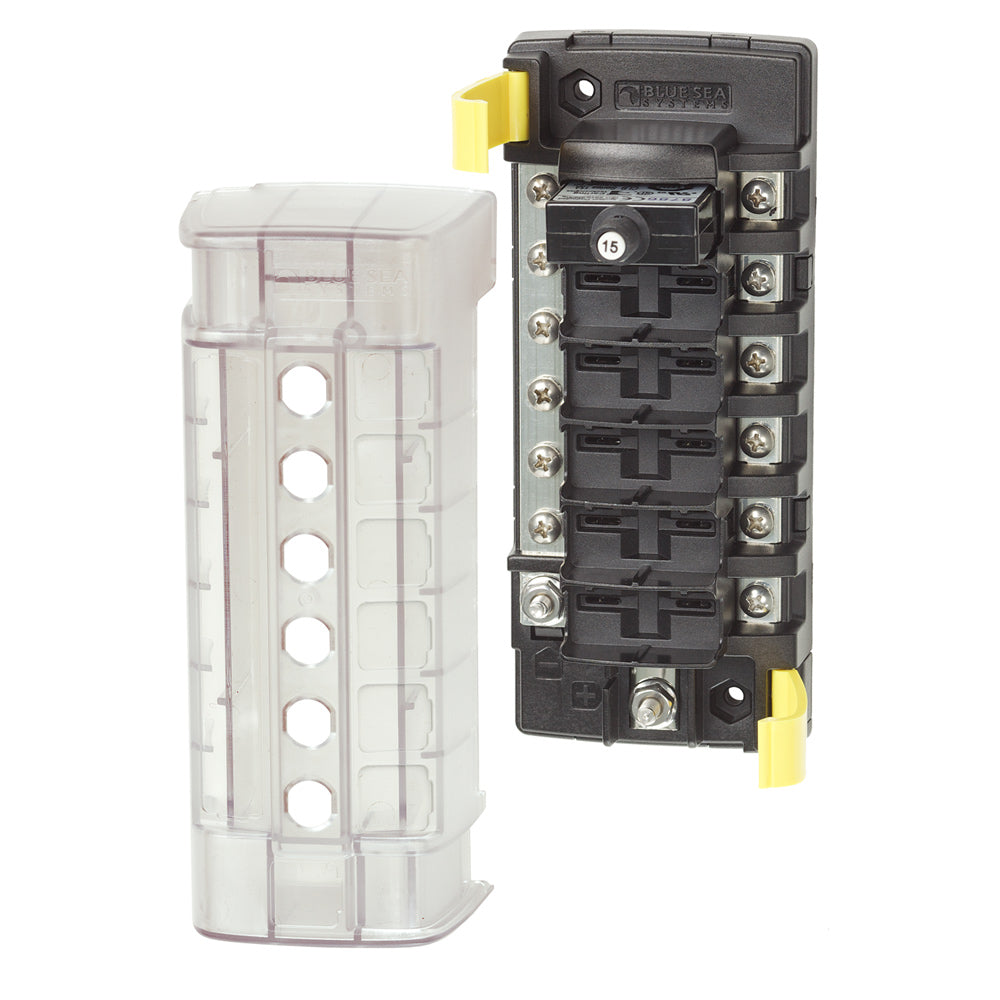

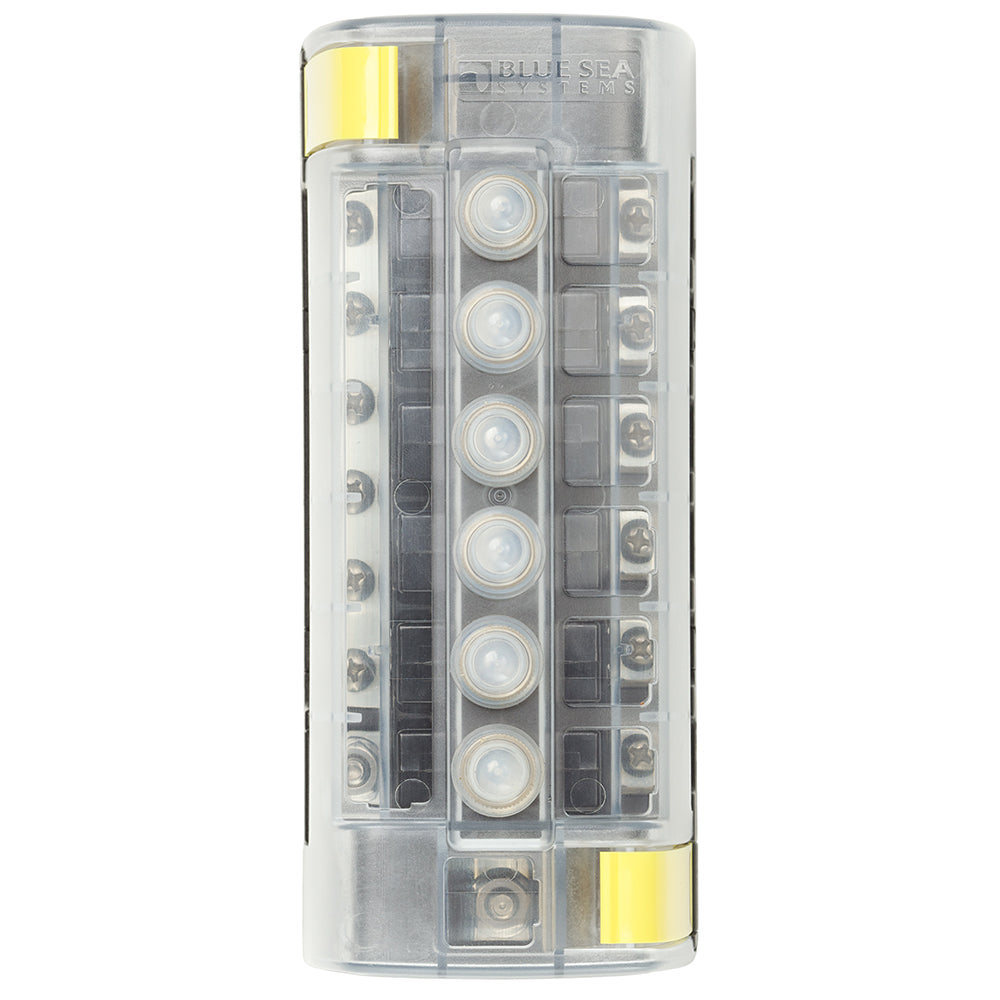

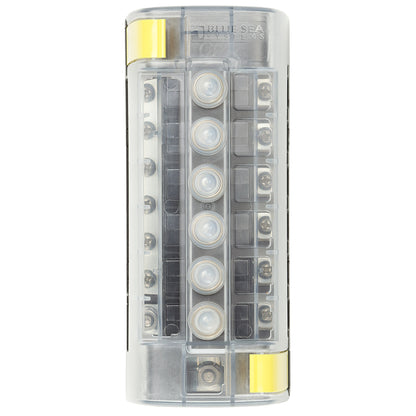

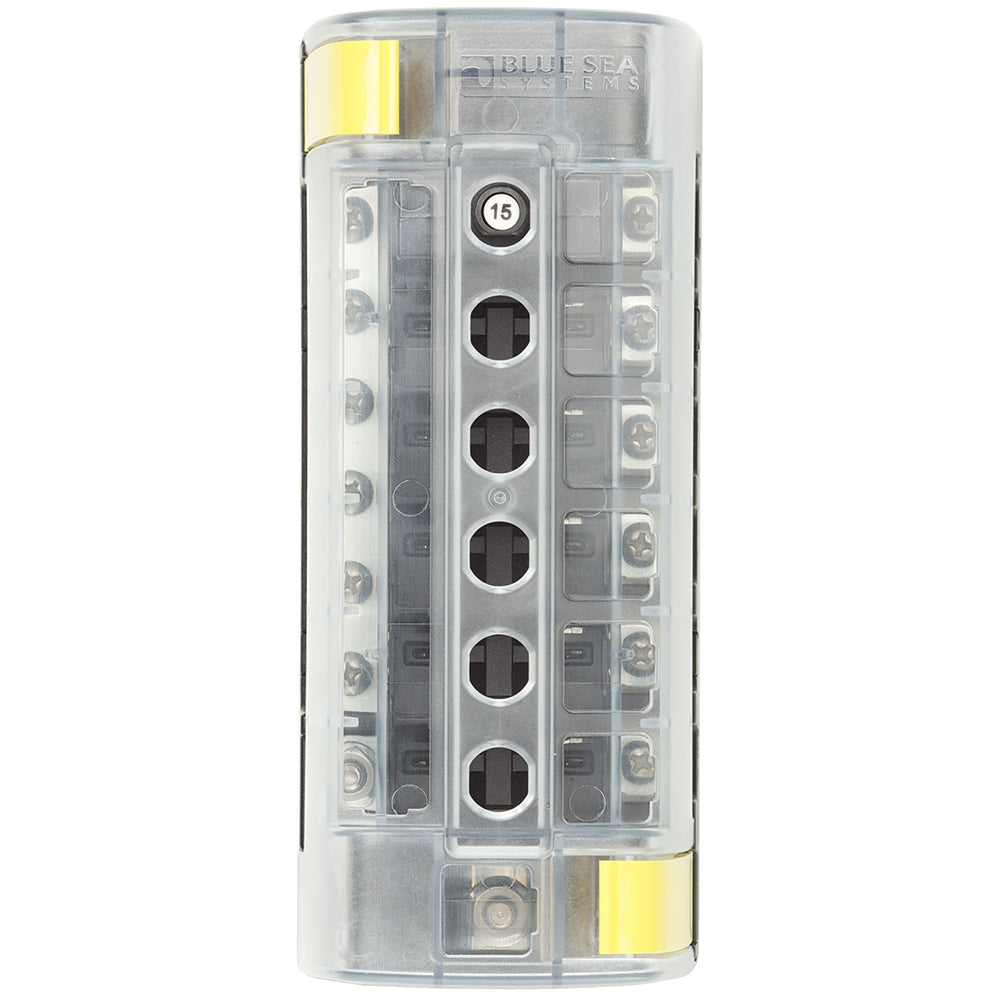

The Blue Sea Systems 5052 ST CLB Circuit Breaker Block organizes up to 6 branch circuits with a negative bus in one DC distribution block. It uses snap-in quick connect clips for CLB circuit breakers and includes a clear insulating cover with label recesses.

  • Positions: 6 circuits
  • Negative bus: Yes
  • Source: Common source
  • Maximum amperage: 100A per block; 32A per circuit
  • Maximum voltage: 32V DC
  • Bus and terminal material: Tin-plated copper busses and screw terminals
  • Cover: Clear insulating clip-on cover with square format label recesses
  • Compliance: Cover satisfies ABYC/USCG insulation requirements
  • Wire access: Breakouts allow wire entry from two directions
  • Terminal compatibility: Accepts ring terminals
  • Optional accessories: Push button waterproof boots or dress nuts can be installed over the cover
  • Mounting: #8 screw (M4) or #8 nut
  • Mounting centers: 5.63 inches (143 mm)
  • Screw terminal type: #8-32 screws with captive star lock washer
  • Operating temperature: -10 degrees C to 60 degrees C
  • Height: 6.69 inches (169.93 mm)
  • Weight: 0.75 lb (0.34 kg)

Specifications

Amperage100/32a
BrandBlue Sea Systems
Manufacturer part #5052
UPC632085050528
Boxed dimensions11 x 5 x 3 in
Shipping weight0.9 lb
Country of originUNITED STATES
