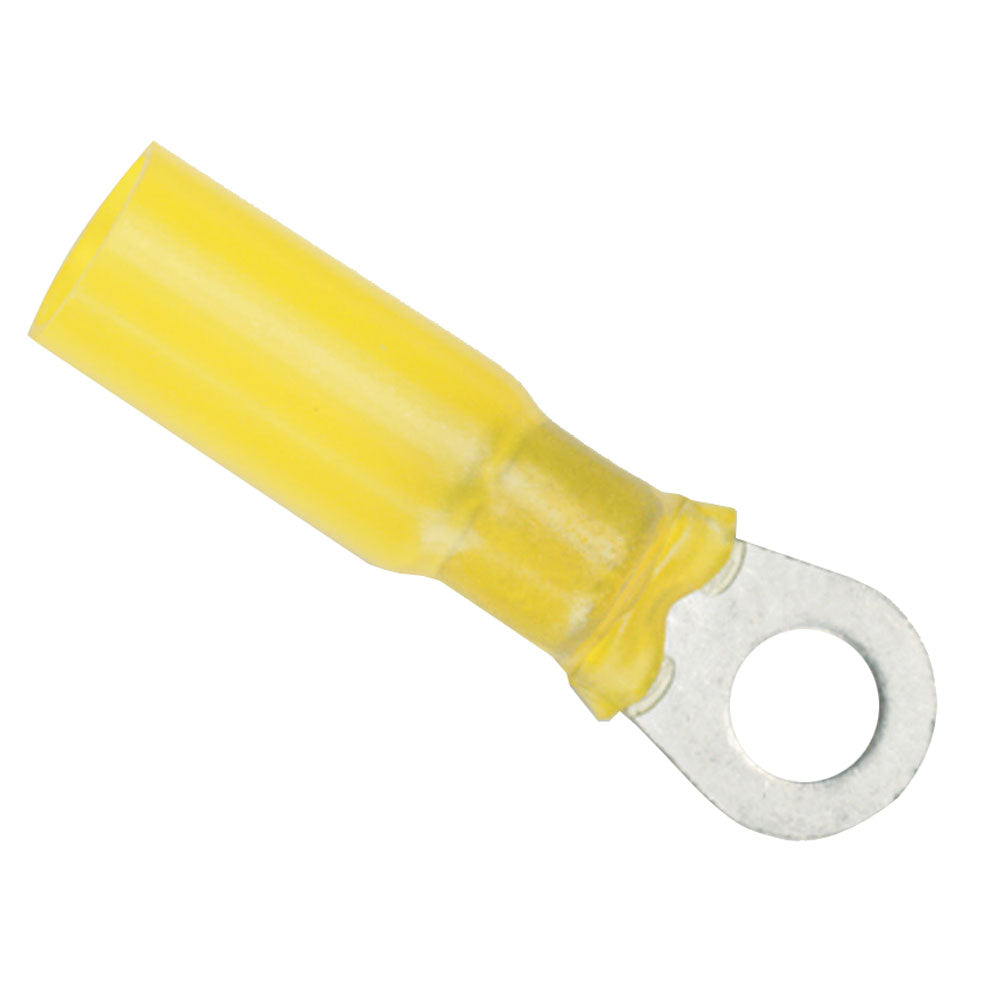

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-1210GAUGE-312225

$30.92
$35.78 $30.92
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Ring TerminalsType
#8Post Size
25Package Qty
YesHeat Shrink
12-10 AWGGauge

These Ancor heat shrink ring terminals are made for marine electrical terminations using 12-10 gauge wire and a #8 screw. The 25-pack includes tinned copper terminals with heat-activated adhesive insulation for sealed, strain-relieved connections.

  • Wire gauge: 12-10 gauge
  • Screw size: #8
  • Quantity: 25 terminals
  • Wire range: 3-5 mm
  • Tubing: Cross-linked polyolefin
  • Insulator: Nylon
  • Seal: Heat-activated adhesive lining
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: -40 degrees C to 110 degrees C
  • Terminal material: Tinned pure copper with brazed seam
  • Certifications: UL Listed and CSA Recognized
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

TypeRing Terminals
Post Size#8
Package Qty25
Heat ShrinkYes
Gauge12-10 AWG
BrandAncor
Manufacturer part #312225
UPC091887316049
Boxed dimensions4 x 4 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
