• Blue Sea 5032 ST-Blade Split Bus Fuse Block
1 1

Blue Sea Systems

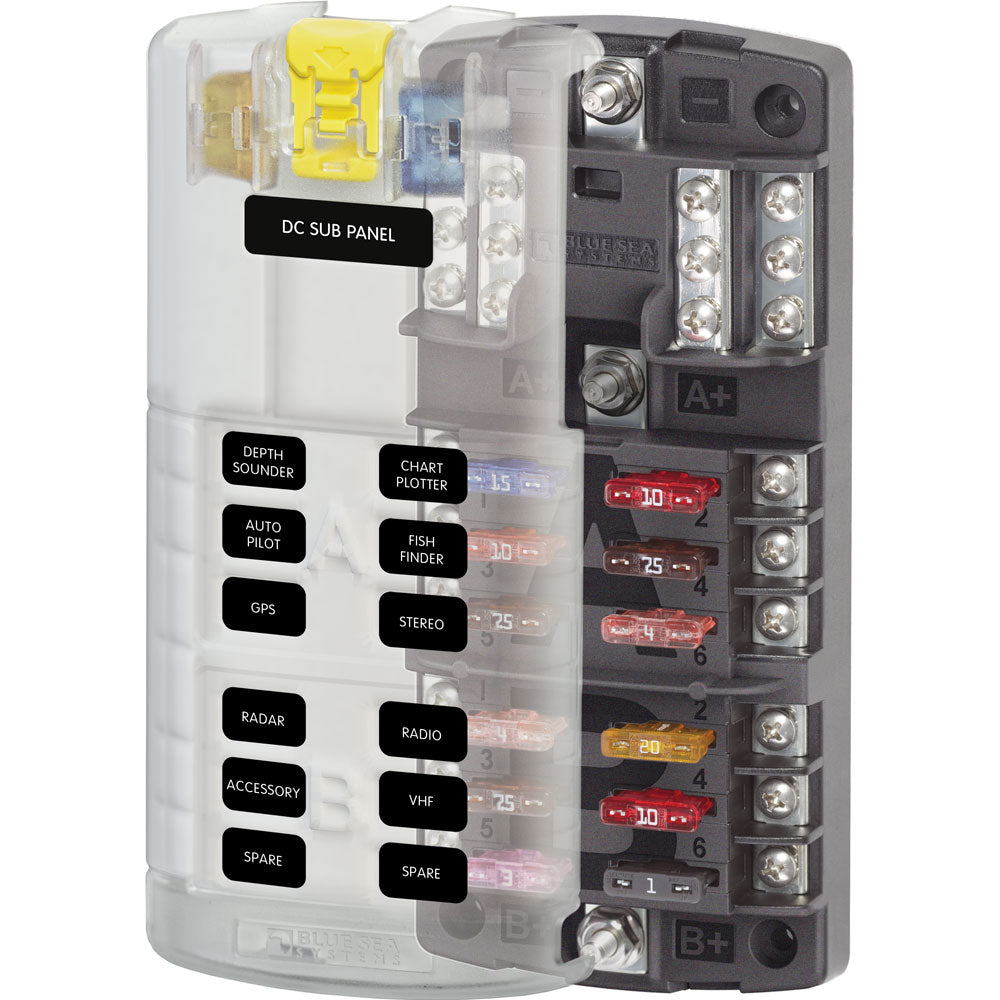

Blue Sea 5032 ST-Blade Split Bus Fuse Block

Blue Sea 5032 ST-Blade Split Bus Fuse Block

OM-BLUESEA-5032STBLADE-5032

$69.61
$93.99 $69.61
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ATO/ATCFuse Type
Fuse BlocksType

The Blue Sea Systems 5032 ST-Blade Split Bus Fuse Block organizes twelve ATO/ATC circuits into two isolated groups of six. It is designed for DC systems using two isolated batteries or one battery with both 24 hour and switched circuits.

  • Brand: Blue Sea Systems
  • Model: 5032
  • Product type: ST-Blade split bus fuse block
  • Circuits: 12 total, arranged as two isolated groups of six ATO/ATC circuits
  • Maximum amperage: 100A per block, 30A per circuit
  • Maximum voltage: 32V DC
  • Mounting: #8 screw (M4)
  • Negative bus: #10-32 stud
  • Terminals: #8-32 screws with captive star lock washer
  • Bus and clips: Tin-plated copper
  • Connections: Screw terminals accept ring terminals
  • Cover: Clear insulating cover with label recesses and storage for two fuses
  • Compliance: Cover satisfies ABYC/USCG insulation requirements
  • Access: Push button latch opens for fuse access
  • Fuses: Sold separately

Specifications

Fuse TypeATO/ATC
TypeFuse Blocks
BrandBlue Sea Systems
Manufacturer part #5032
UPC632085050320
Boxed dimensions10 x 6 x 2 in
Shipping weight0.9 lb
Country of originUNITED STATES
