• Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack
1 1

Ancor

Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack

Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-1614GAUGE-311325

$25.61
$25.93 $25.61
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
Ring TerminalsType
#10Post Size
YesHeat Shrink
25Package Qty

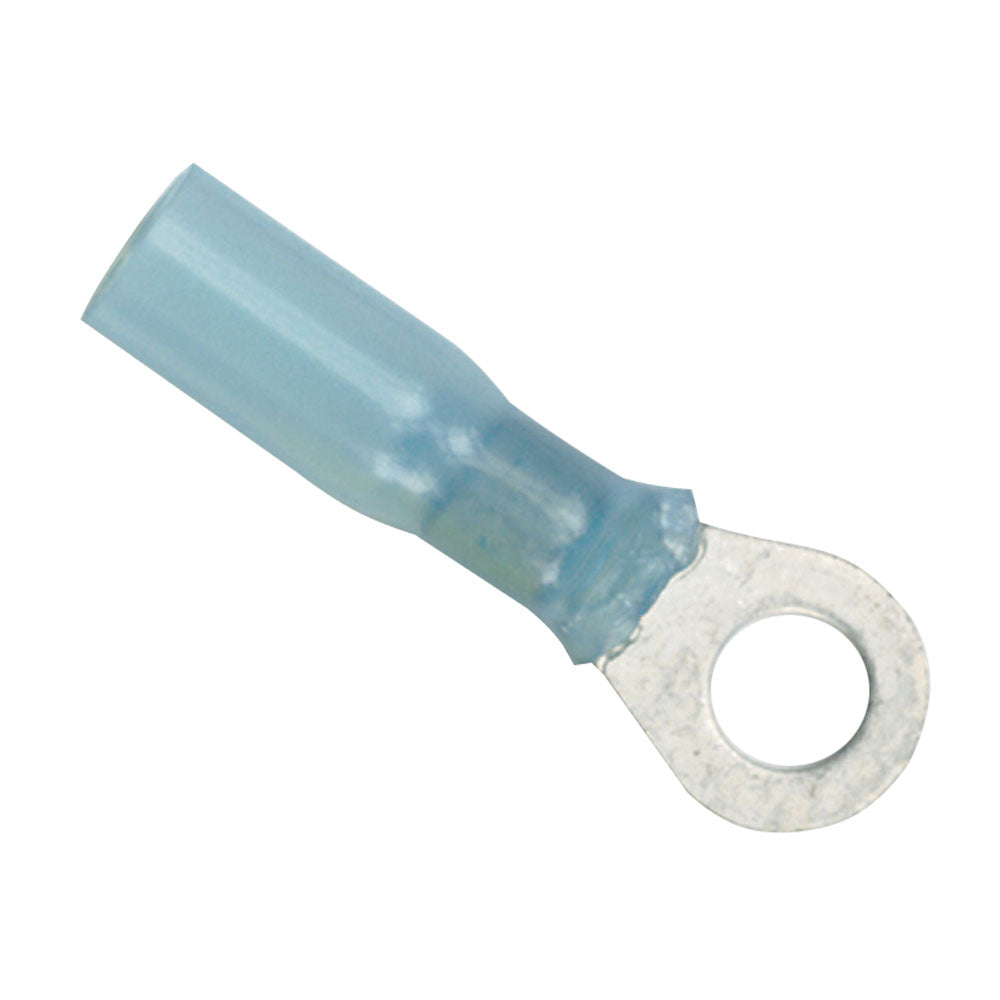

These Ancor heat shrink ring terminals are made for marine electrical work using 16-14 gauge wire and a #10 screw size. The 25-pack combines tinned copper terminals with adhesive-lined heat shrink insulation for sealed, strain-relieved connections.

  • Wire size: 16-14 gauge
  • Screw size: #10
  • Quantity: 25 terminals
  • Tubing: Cross-linked polyolefin heat shrink
  • Insulator: Nylon
  • Seal: Heat-activated adhesive lining protects against salt water, oil, acids, and sunlight
  • Certifications: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 deg F / 125 deg C
  • Operating temperature range: 40 deg C to 110 deg C
  • Terminal material: Pure copper, tinned for corrosion resistance
  • Construction: Brazed seam
  • Warning: This product can expose users to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Gauge16-14 AWG
TypeRing Terminals
Post Size#10
Heat ShrinkYes
Package Qty25
BrandAncor
Manufacturer part #311325
UPC091887313109
Boxed dimensions5 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
