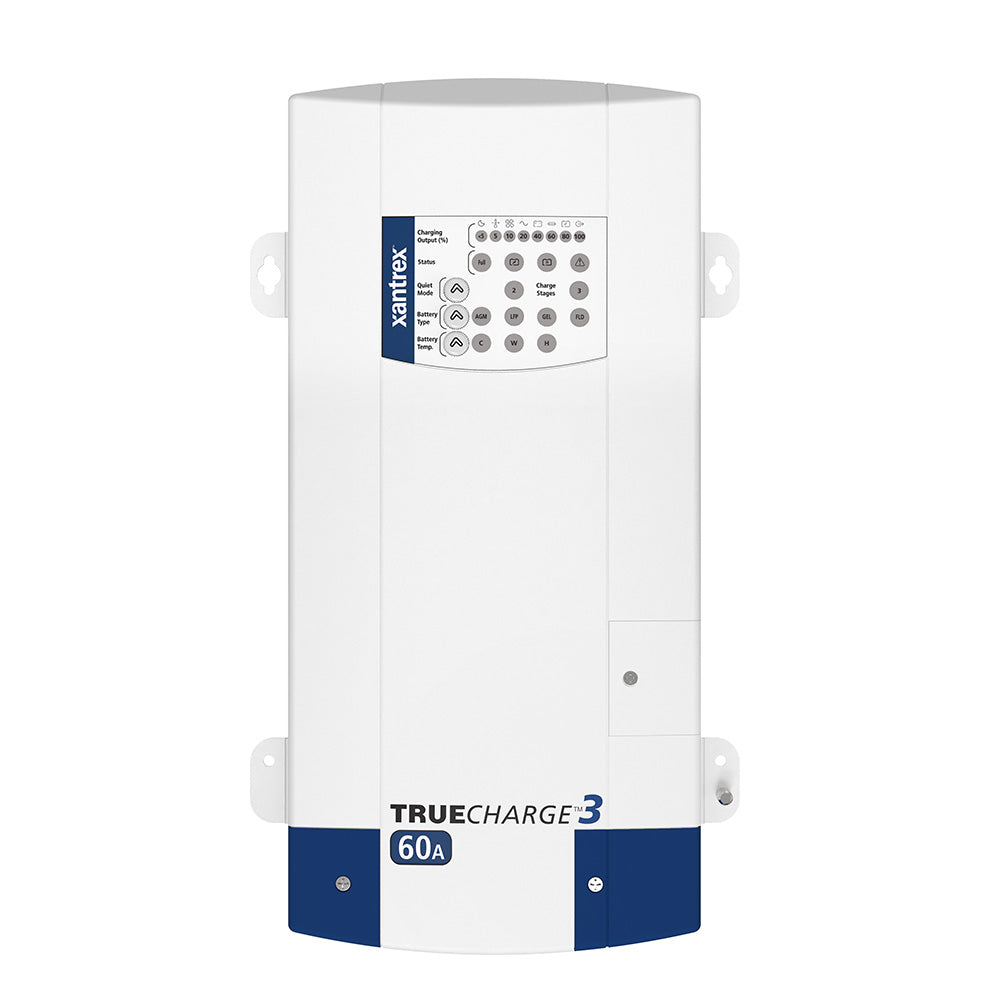

Xantrex TRUEcharge™3 60A 3 Bank Battery Charger - 12V

The Xantrex TRUEcharge3 is a 12V, 60A battery charger for three battery banks in recreational and commercial power systems. It supports multiple battery types, accepts a wide AC input range, and uses microprocessor-controlled charging for two- or three-stage operation.

• Brand: Xantrex
• Product type: 3 bank battery charger
• Model: TRUEcharge3
• Nominal output current: 60 A
• Nominal system voltage: 12 V
• Output connections: Three
• AC input voltage: 90-265 Vac, 47-63 Hz
• Nominal AC input: 120 Vac, 230 Vac, 240 Vac
• Charging profiles: Two-stage and three-stage settings
• Battery settings: Flooded, gel, AGM, and lithium-ion
• Charging stages: Bulk, absorption, and float
• Output voltage, depending on settings: Charge 14.2-15.5 Vdc, float 13.4-13.8 Vdc, 16 V DC
• Functions: Battery equalization, parallel stacking with remote panel required, charging for batteries drained to extremely low voltage, and quiet mode
• Display: Easy-to-read display on 12 V models, with optional remote panel support
• Protection: Reverse battery polarity, AC surge and spike protection, DC over-voltage, over-temperature, and circuit breaker protection
• Design: Drip-proof characteristics allow mounting in multiple positions
• Charging technology: Power factor corrected multistage charging with low electrical interference
