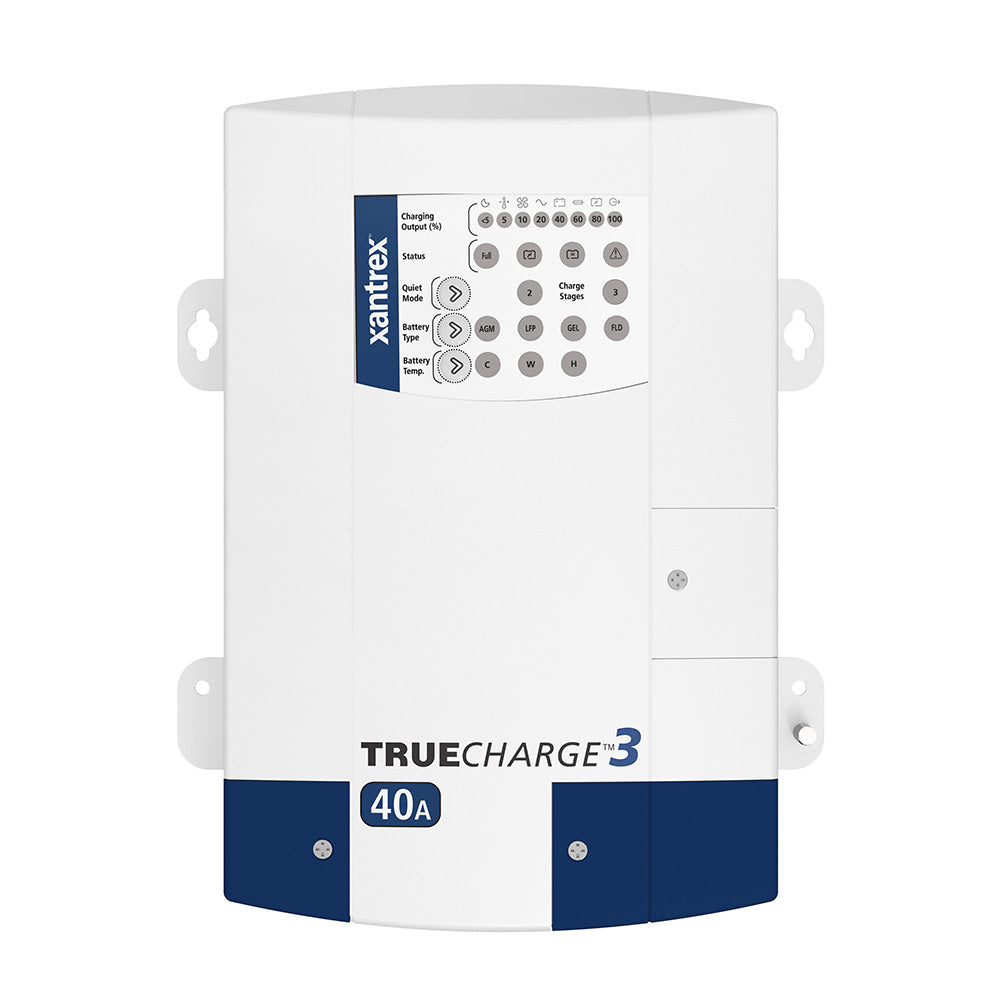

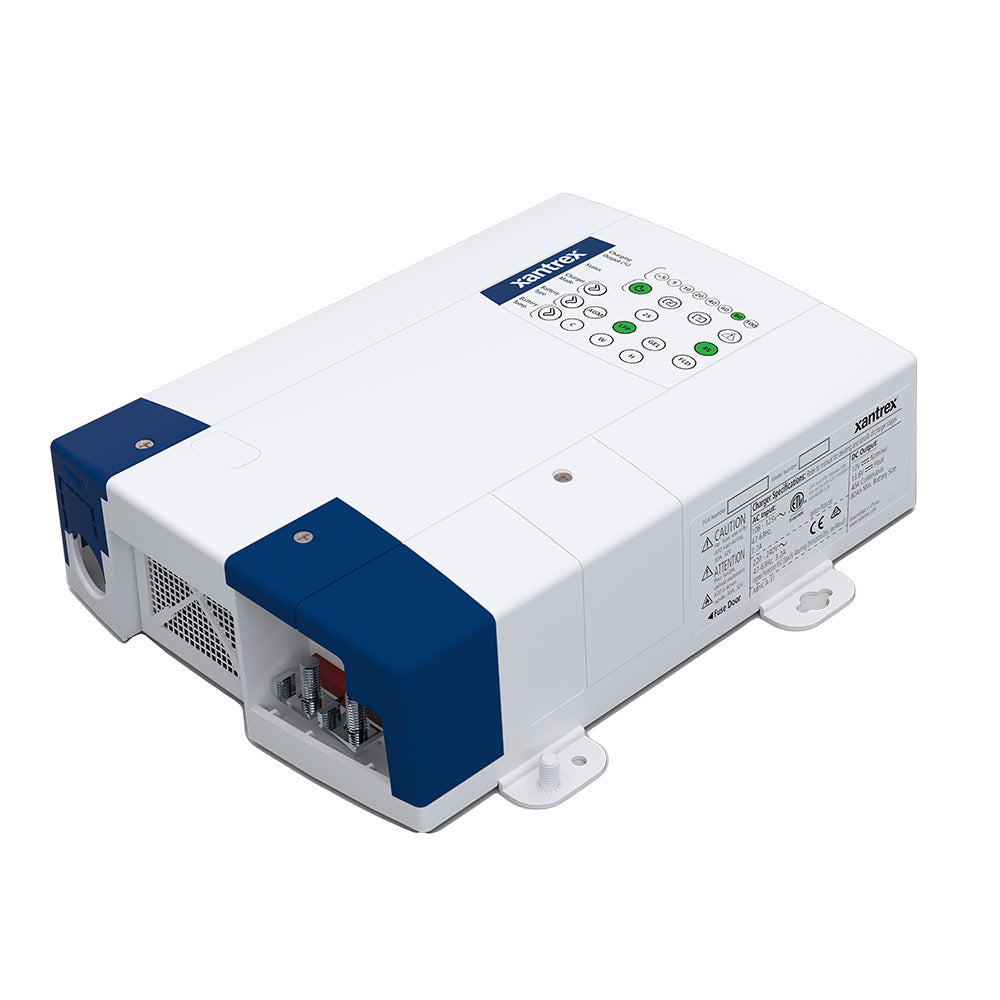

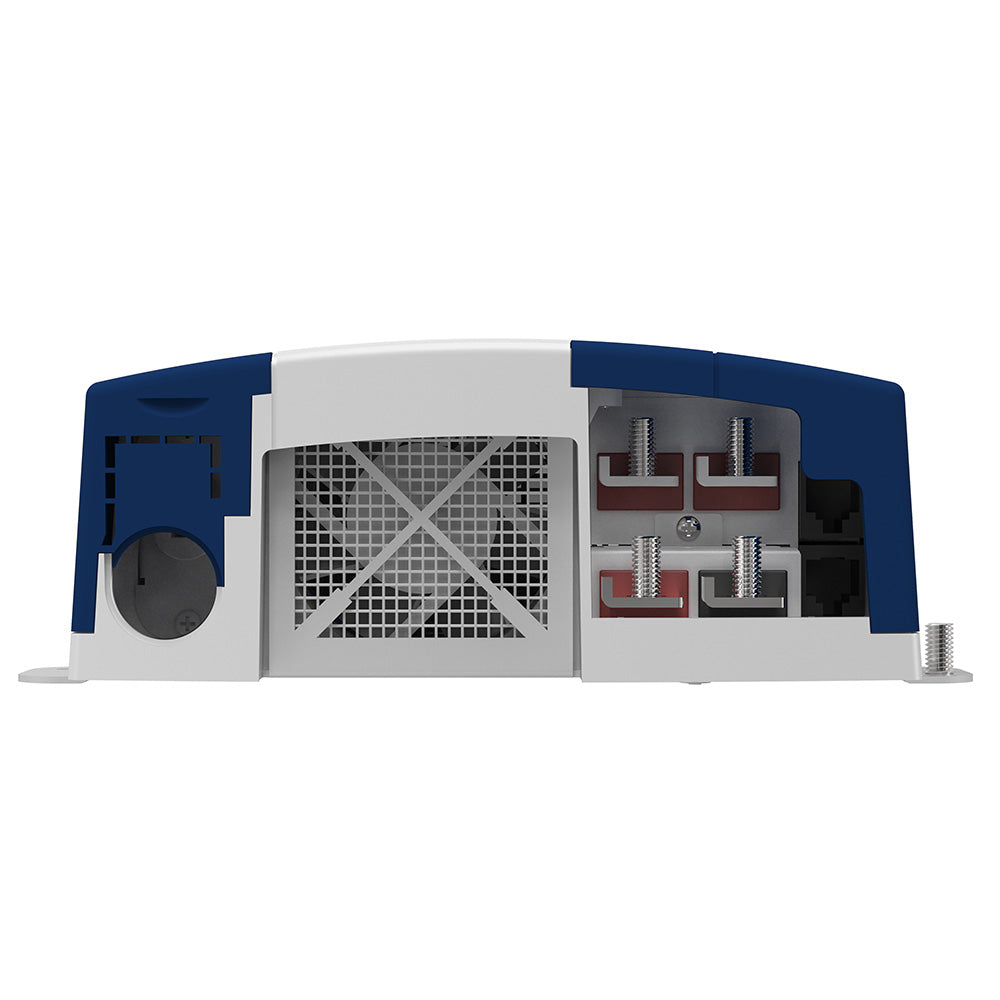

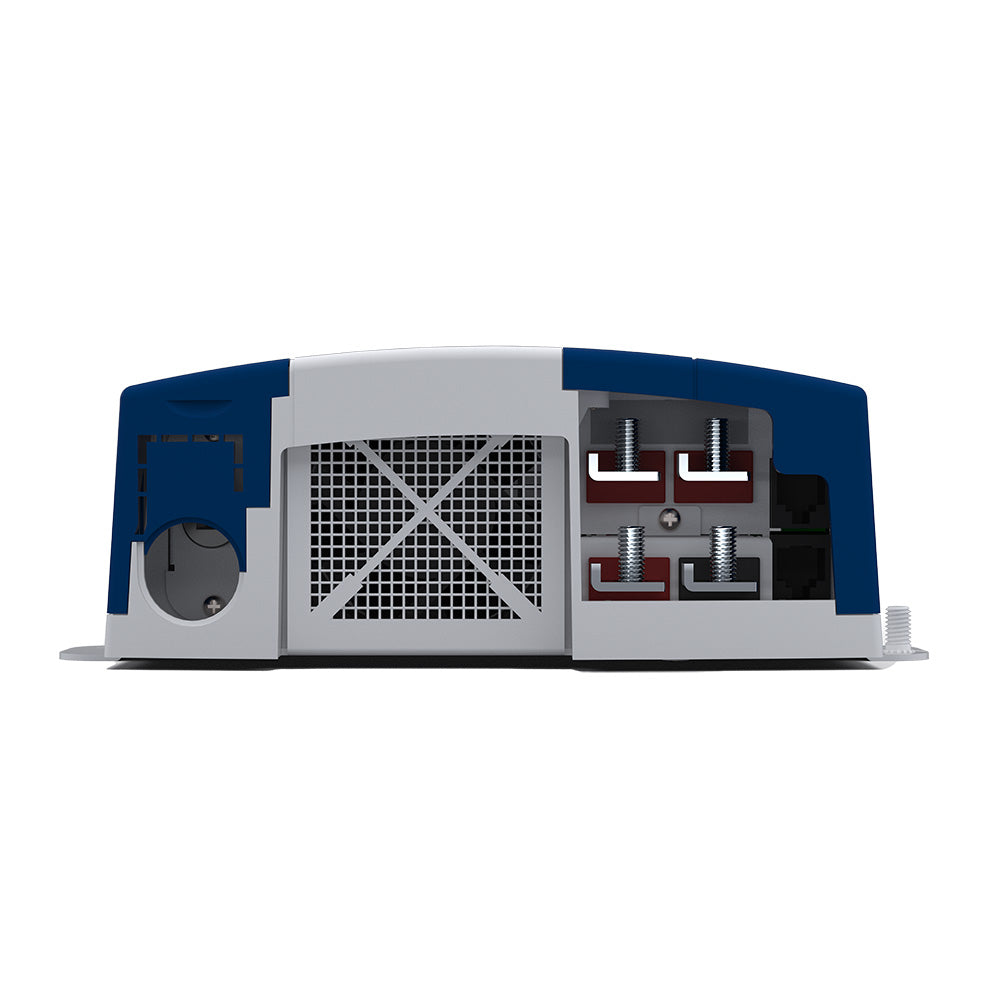

Xantrex TRUEcharge™3 40A 3 Bank Battery Charger - 12V

The Xantrex TRUEcharge3 is a 12V battery charger built for three-bank charging in RV, marine, commercial, and recreational power systems. It supports multistage charging, multiple battery types, and wide-range AC input for use with varied shore power conditions.

• Model: TRUEcharge3 40A 3 Bank Battery Charger
• Nominal output current: 40 A
• Nominal system voltage: 12 V
• Output connections: Three
• Battery settings: Flooded, gel, AGM, or lithium-ion batteries
• Charging modes: Two-stage and three-stage charging settings
• Charging control: Microprocessor-controlled multistage charging algorithms
• Additional charging function: Battery equalization feature
• AC input: 90-265 Vac, 47-63 Hz
• Nominal AC input: 120 Vac, 230 Vac, 240 Vac
• DC output voltage by setting: Charge 14.2-15.5 Vdc; float 13.4-13.8 Vdc; 16 V DC
• Stacking: Parallel stacking with remote panel required

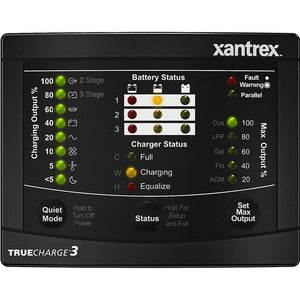

• Remote display: Optional remote panel for 12 V models
• Low-voltage recovery: Can charge batteries drained to extremely low voltage
• Quiet mode: Included
• Protection: Reverse battery polarity, DC over-voltage, over-temperature, circuit breaker, and AC surge/spike protection
• Mounting: Multiple mounting positions supported by drip-proof design characteristics
