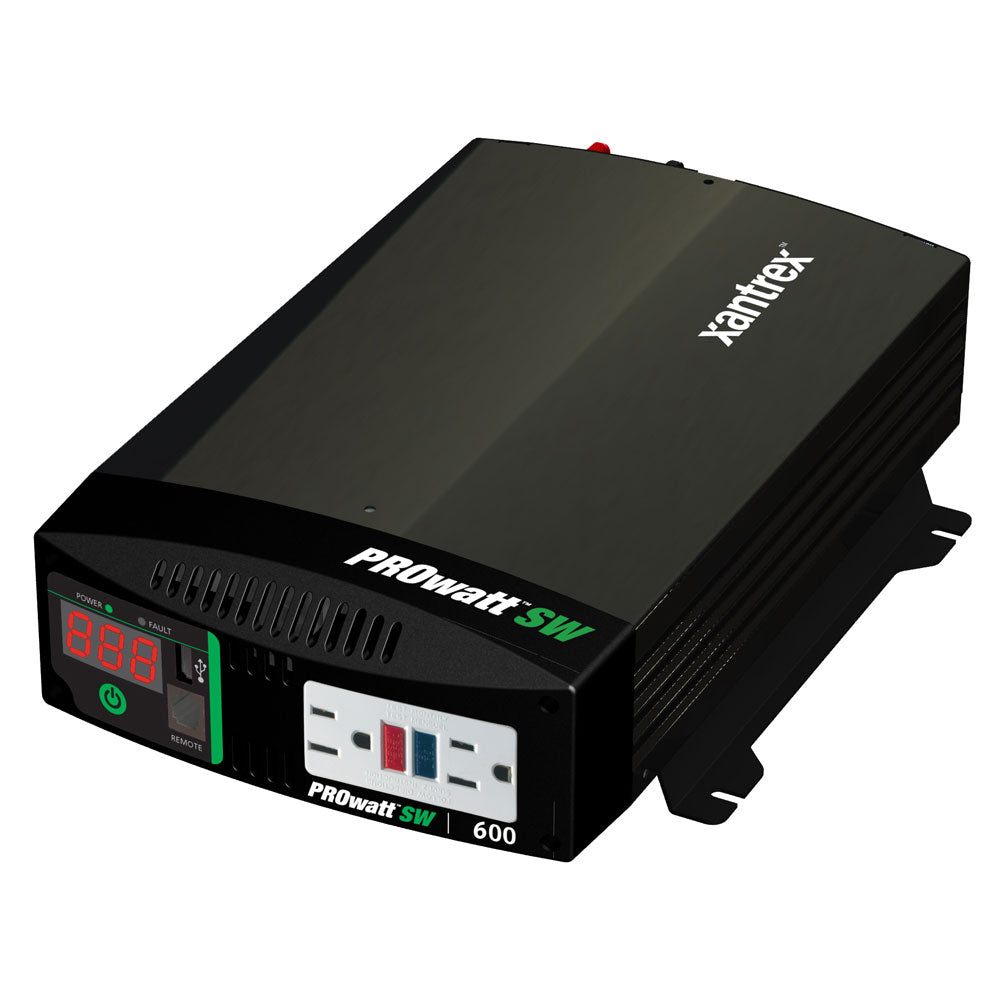

Xantrex PROwatt SW600 - True Sine Wave Inverter

Xantrex PROwatt SW600 - True Sine Wave Inverter

OM-XANTREX-PROWATTSW600TR-8061206

$249.05
$419.66 $249.05
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

HardwireDC Connection Type
YesGFCI
1 Duplex GFCIOutlet Qty
1200wInverter Surge Rating
12vInverter Input Voltage
True Sine WaveWaveform

The Xantrex PROwatt SW600 is a true sine wave inverter for supplying household AC power from a 12 Vdc battery system. It is designed for RV, commercial truck, marine, and recreational use where clean AC output and built-in connection options are needed.

  • Continuous power: 540W
  • Surge capacity: 1200W peak
  • DC input: 12 Vdc nominal
  • Input voltage range: 10.5 - 15.5 Vdc
  • AC output voltage range: 104 - 127 Vac
  • AC output frequency: 60 +/- 0.5 Hz
  • Output waveform: True sine wave
  • Optimum efficiency: 90%
  • No-load current draw: Less than 0.6 A
  • USB output: 5 V / 500 mA, single Type A port
  • AC receptacles: Dual GFCI
  • DC connection: Hardwire with heavy duty terminals
  • Recommended DC fuse: 150 A
  • Display: Shows DC voltage, AC output power, and error codes
  • Protections: Low voltage shutdown, low voltage alarm, over voltage protection, overload shutdown, over temperature shutdown, and GFCI protection
  • Remote option: Available ON/OFF remote switch with ignition lockout
  • Operating temperature: 32 degrees F - 104 degrees F / 0 degrees C - 40 degrees C
  • Dimensions: 3.5" x 8.7" x 12.2" / 89 x 220 x 310 mm
  • Weight: 6.5 lb / 3.0 kg
  • Warranty: Two years

Specifications

DC Connection TypeHardwire
GFCIYes
Outlet Qty1 Duplex GFCI
Inverter Surge Rating1200w
Inverter Input Voltage12v
WaveformTrue Sine Wave
AC Connection TypeHardwire
Inverter Output Voltage120v
Inverter Cont. Output Wattage540w
BrandXantrex
Manufacturer part #806-1206
UPC715535894061
Boxed dimensions15 x 10 x 6 in
Shipping weight6.8 lb
Country of originCHINA
