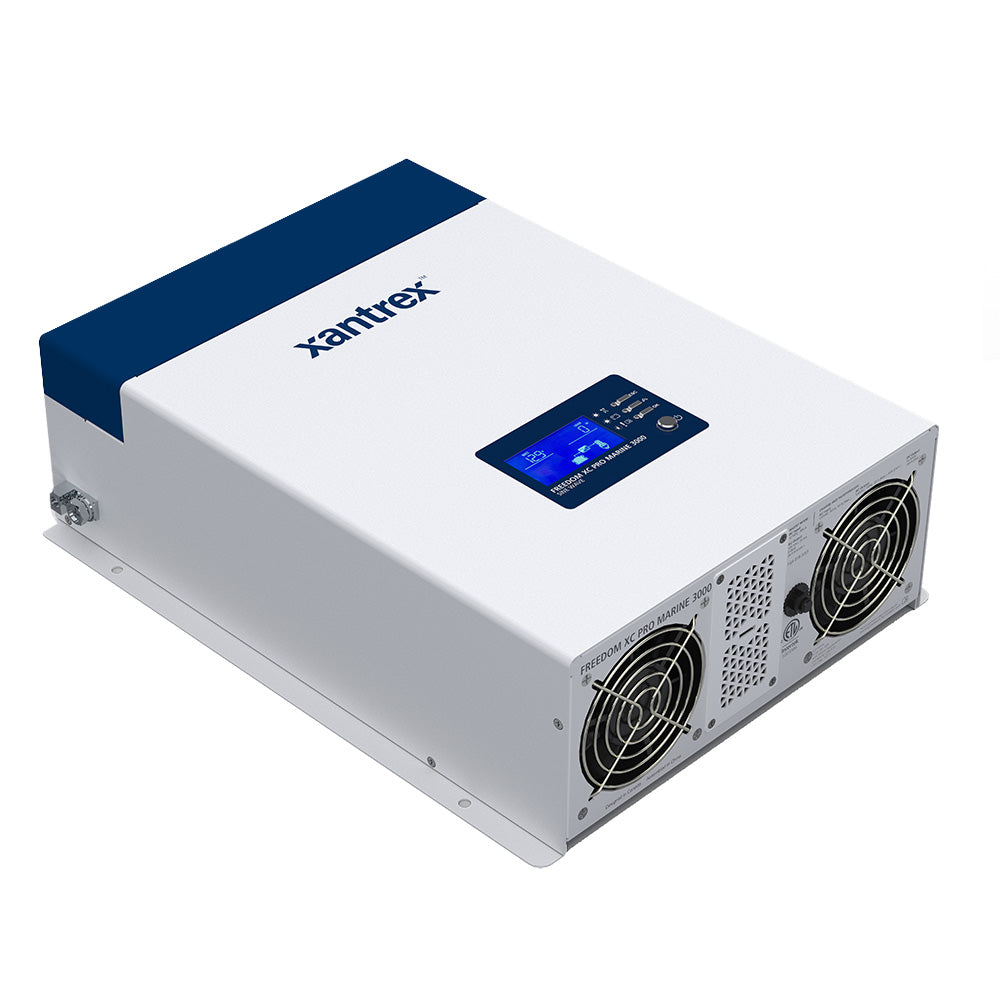

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

The Xantrex Freedom XC Pro 3000 is a 3000W inverter/charger for 12V systems that need true sine wave AC power and built-in battery charging. It combines an inverter, lithium-ion battery charging support, and an AC transfer relay in a compact, lightweight unit for RV and vehicle power setups.

• Brand: Xantrex
• Model: Freedom XC Pro 3000
• Product type: Inverter/charger
• Continuous power: 3000W
• Battery charger: 150A charger on the 3000W model
• AC output: 120V true sine wave power
• DC system voltage: 12V
• Input range: Wide 10-18 VDC range
• Transfer relay: Built-in 50A AC transfer relay on the 3KW model
• Surge capability: Up to 2X continuous power for 5 seconds for motor loads
• Operating output range: Full output in invert or charge mode from -4°F (-20°C) to 104°F (40°C)
• Control feature: Ignition control allows inverter on/off operation by a 12 VDC signal
• AC shutdown setting: Programmable AC under-voltage shutdown from 85-110VAC
• Charging: Power factor corrected multi-stage charging
• Charge programming: Configurable 3-stage temperature compensated charging algorithm for battery types up to 18V
• Battery support: Easily configurable settings for lithium ion batteries
• Additional charging features: Battery equalization, dead battery charging down to 0 Vdc, and Power Share input-current management
• Protocols: Supports RV-C and J1939 protocols
• Monitoring option: Bluetooth app configuration and monitoring available with optional Bluetooth remote panel #808-0817-02
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns.
