Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

OM-XANTREX-FREEDOMXC2000-8172080

$896.67
$1,136.32 $896.67
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

True Sine WaveWaveform
120vInverter Output Voltage
12vInverter Input Voltage
4000wInverter Surge Rating
OptionalOutlet Qty
OptionalGFCI

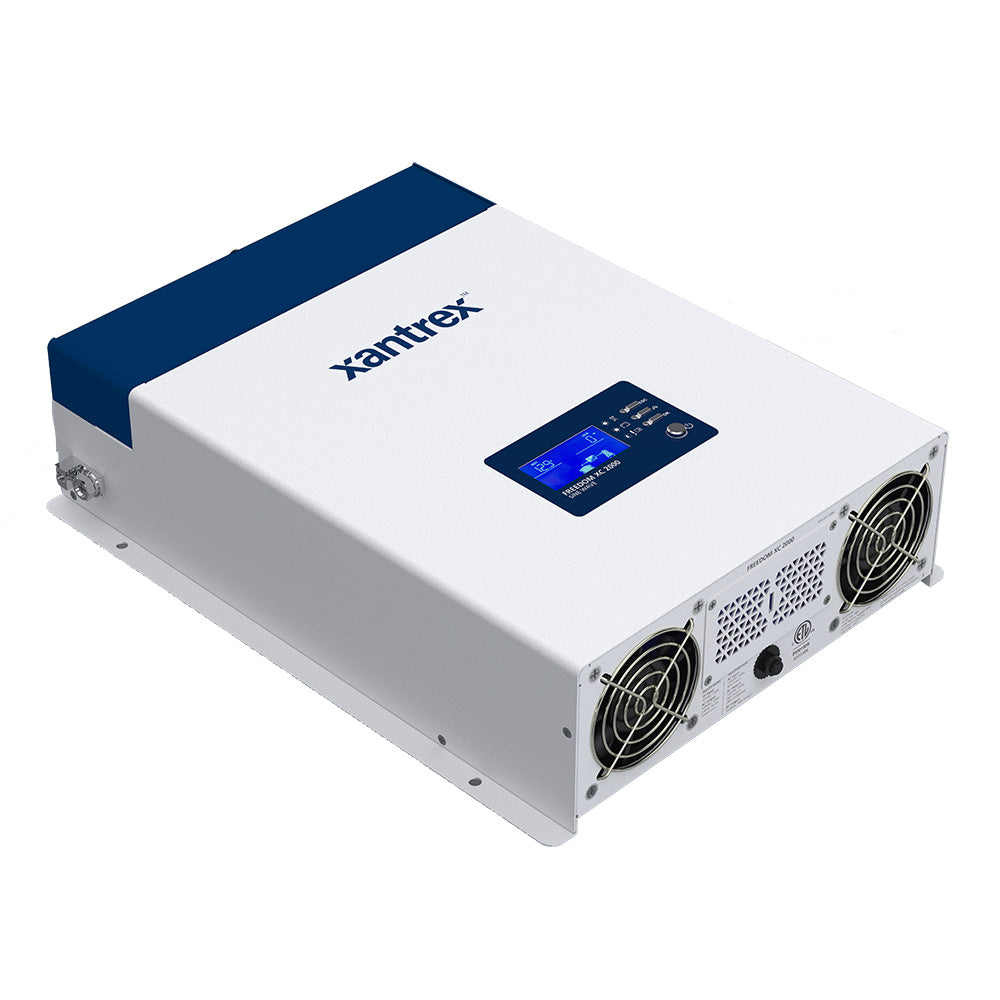

The Xantrex Freedom XC 2000 is a 12VDC inverter/charger that supplies 120VAC true sine wave power and includes an internal transfer switch. It is intended for recreational and commercial power systems that need inverter output, battery charging, and automatic changeover when shore or generator AC power is available.

  • Output: 120VAC true sine wave power
  • Input: 12VDC with wide 10-18VDC input range
  • Power rating: 2000W inverter with 80A charger
  • Surge capability: Up to 2x continuous power for 2 seconds for motor loads
  • Temperature range: Full output in invert or charge mode from -4°F to 104°F
  • Transfer relay: Built-in 30A AC transfer relay
  • AC source switching: Transfers loads from inverter power to incoming shore or generator power when outside AC is present
  • Charging: Power factor corrected multi-stage battery charging
  • Charge algorithm: Programmable 3-stage, temperature-compensated charging for battery types up to 18V
  • Battery functions: Equalization for flooded batteries and dead battery charging down to 0VDC
  • Ignition control: Allows inverter on/off control from a 12VDC signal
  • AC shutdown: Programmable under-voltage shutdown from 85-110VAC
  • Connections: Quick-connect AC input and output terminals
  • Power share: Lowers charge current to keep total input current under the breaker setting

Specifications

WaveformTrue Sine Wave
Inverter Output Voltage120v
Inverter Input Voltage12v
Inverter Surge Rating4000w
Outlet QtyOptional
GFCIOptional
DC Connection TypeHardwire
AC Connection TypeHardwire
Inverter Cont. Output Wattage2000w
BrandXantrex
Manufacturer part #817-2080
UPC715535901349
Boxed dimensions20 x 16 x 10 in
Shipping weight19.4 lb
Country of originCN
