• Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A
1 1

Xantrex

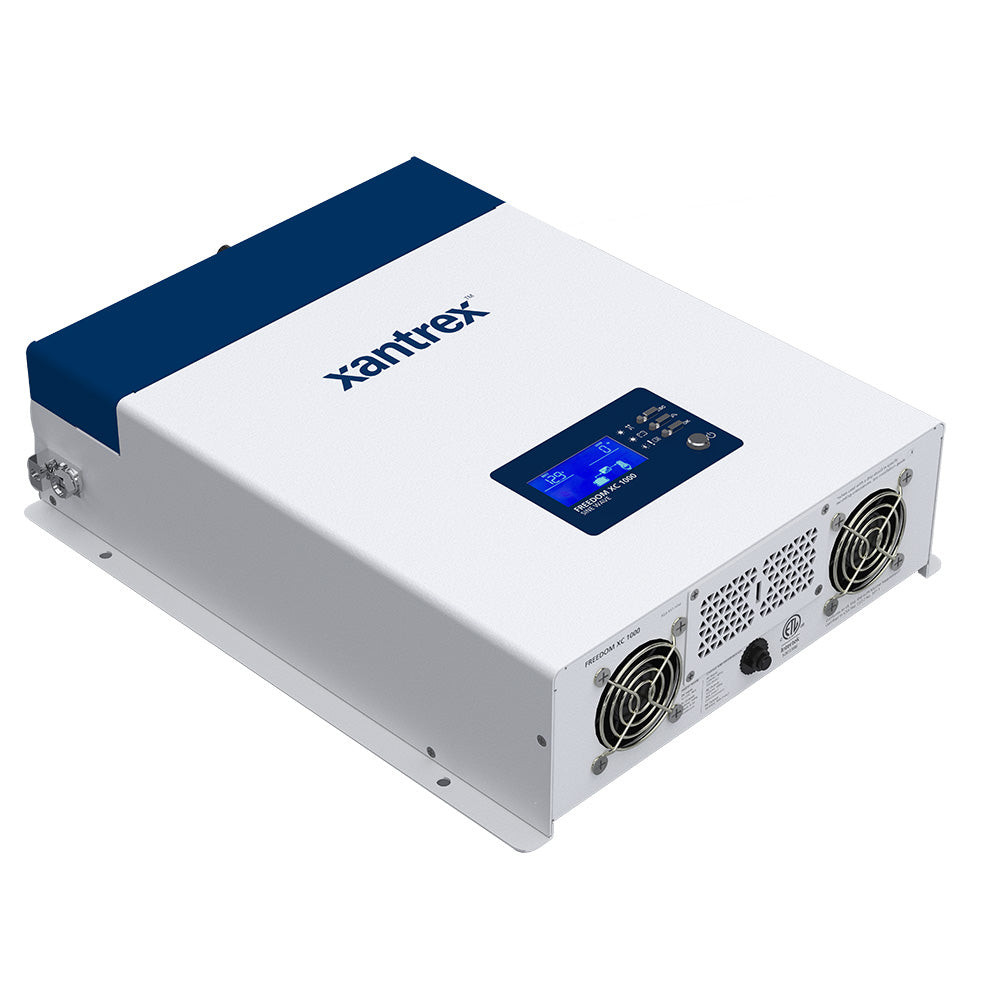

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A

OM-XANTREX-FREEDOMXC1000-8171050

$536.32
$842.84 $536.32
Sale
Shipping calculated at checkout.

Low stock: 2 left
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

HardwireDC Connection Type
HardwireAC Connection Type
12vInverter Input Voltage
2000wInverter Surge Rating
OptionalOutlet Qty
OptionalGFCI

The Xantrex Freedom XC 1000 combines a true sine wave inverter, battery charger, and transfer switch in one 12VDC power unit. It is built for recreational and commercial setups that need 120VAC output, battery charging, and automatic switching between inverter power and incoming shore or generator power.

  • Output: 120VAC true sine wave power
  • Input: 12VDC with a 10-18VDC operating range
  • Power rating: 1000W inverter with 50A charger
  • Surge capability: Up to 2x continuous power for 2 seconds for motor loads
  • Temperature range: Full output in invert or charge mode from -4°F to 104°F
  • Transfer relay: Built-in 30A AC transfer relay for shore or generator input
  • Charging: Power factor corrected, multi-stage charging
  • Battery support: Programmable 3-stage temperature-compensated charging algorithm for battery types up to 18V
  • Additional charging functions: Flooded battery equalization and dead battery charging down to 0VDC
  • Controls: Ignition control for inverter on/off from a 12VDC signal
  • AC protection setting: Programmable under-voltage shutdown from 85-110VAC
  • Installation: Quick-connect terminals for AC input and output
  • Power share: Reduces charge current to keep total input current below the breaker setting

Specifications

DC Connection TypeHardwire
AC Connection TypeHardwire
Inverter Input Voltage12v
Inverter Surge Rating2000w
Outlet QtyOptional
GFCIOptional
WaveformTrue Sine Wave
Inverter Output Voltage120v
Inverter Cont. Output Wattage1000w
BrandXantrex
Manufacturer part #817-1050
UPC715535901318
Boxed dimensions20 x 15 x 9 in
Shipping weight16.5 lb
Country of originCHINA
