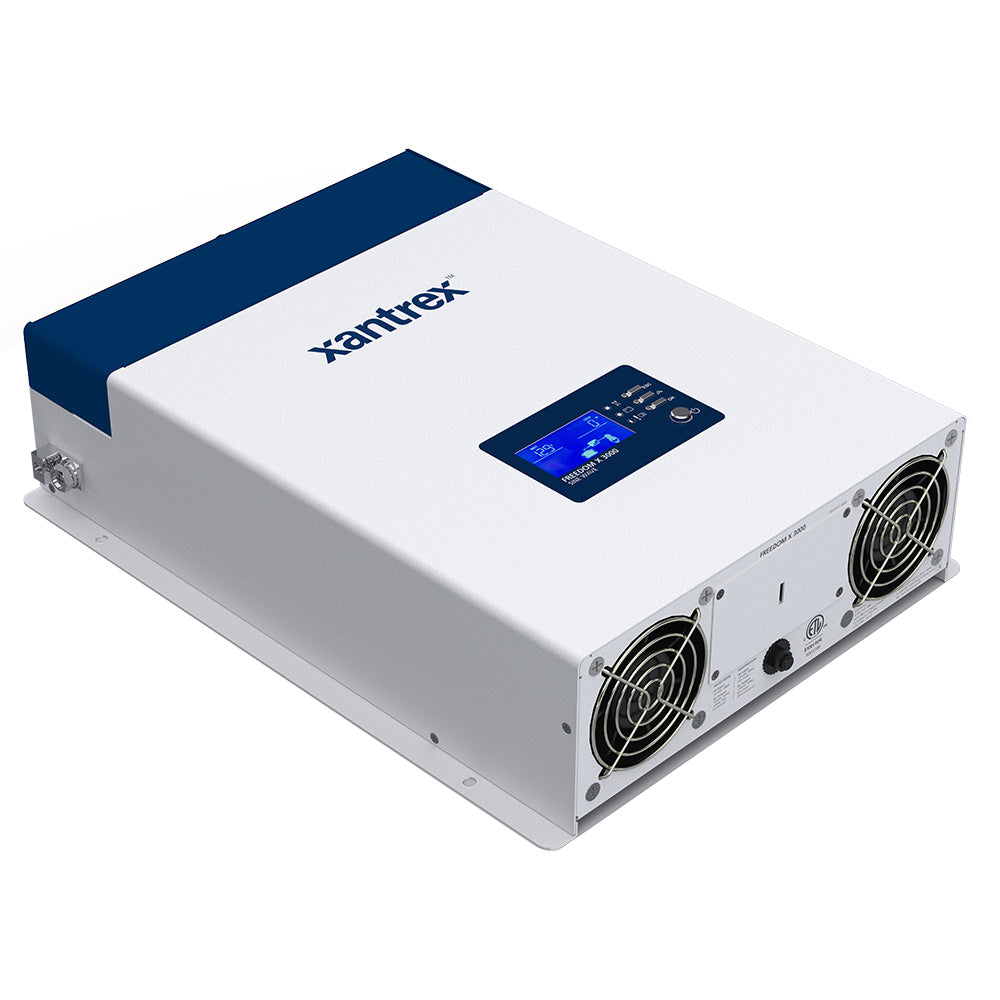

Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

OM-XANTREX-FREEDOMX3000-8173000

$1,101.91
$1,318.23 $1,101.91
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

3000wInverter Cont. Output Wattage
HardwireAC Connection Type
HardwireDC Connection Type
OptionalGFCI
OptionalOutlet Qty
6000wInverter Surge Rating

The Xantrex Freedom X 3000 is a true sine wave inverter for 12V DC systems that need 120V AC power. It is built for recreational and commercial use, with a built-in transfer relay and hardwire AC connections for installation in boats, RVs, and similar applications.

  • Output: 3000 watts continuous 120V AC
  • Input: 12V DC with a 10-18V DC input range
  • Waveform: True sine wave AC power
  • Surge rating: 6000 watts for 2 seconds
  • Transfer relay: Built-in 30A AC transfer relay
  • Operating output range: Full output from -4°F to 104°F

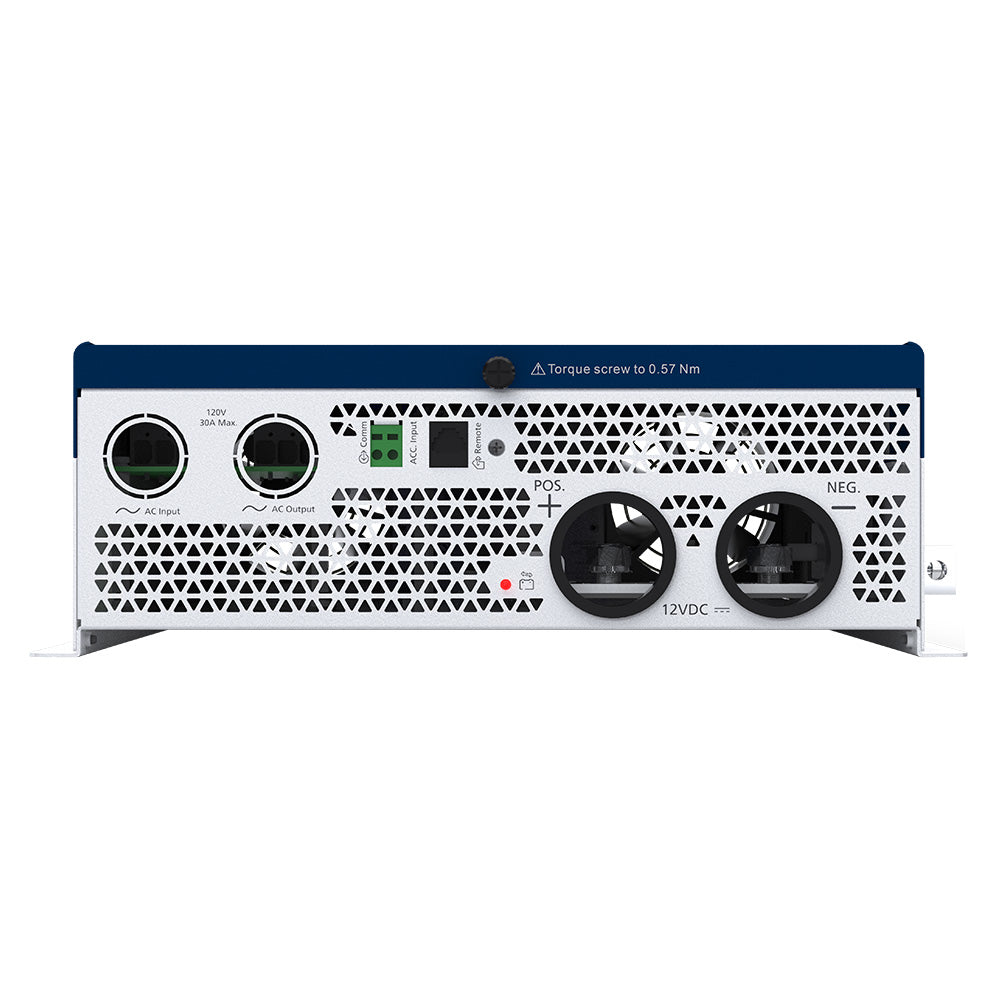

  • Wiring: Large wiring bay with quick-connect AC input and output terminals
  • Ignition control: Can be turned on or off by a 12V DC signal
  • Conversion: Inverts 12V DC to 120V AC
  • Included meter: No volt/watt meter
  • Battery cables: Not included
  • Fuse: Not included

Specifications

Inverter Cont. Output Wattage3000w
AC Connection TypeHardwire
DC Connection TypeHardwire
GFCIOptional
Outlet QtyOptional
Inverter Surge Rating6000w
Inverter Input Voltage12v
Inverter Output Voltage120v
WaveformTrue Sine Wave
BrandXantrex
Manufacturer part #817-3000
UPC715535901493
Boxed dimensions20 x 16 x 9 in
Shipping weight19.9 lb
