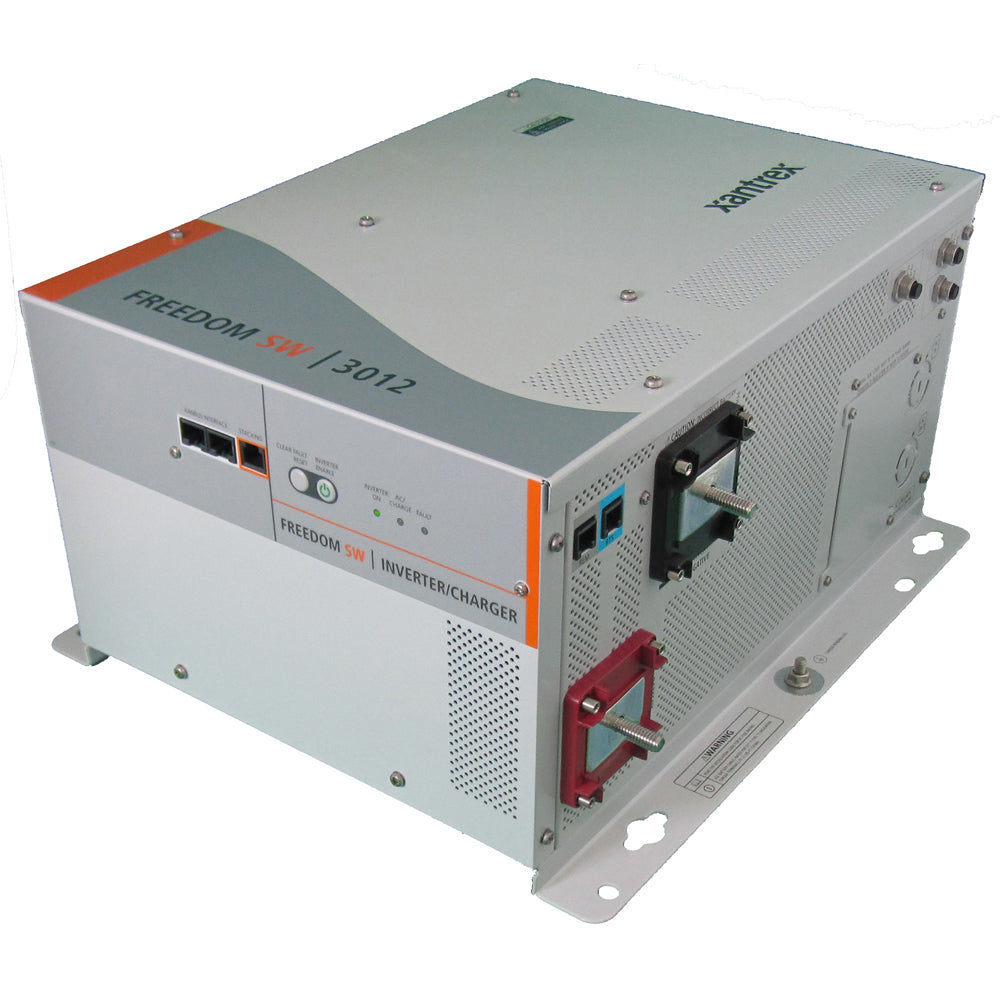

Xantrex Freedom SW3012 12V 3000W Inverter/Charger

The Xantrex Freedom SW3012 is a 12V inverter/charger for mobile and marine power systems that need 3000W of pure sine wave AC output. It combines inverter power, battery charging, AC transfer switching, and configuration options for vehicles, vessels, construction equipment, military equipment, and emergency applications.

• Model: Freedom SW3012
• Part number: 815-3012
• DC voltage: 12V
• AC output: 3000W, 120 Vac / 60 Hz
• Charger output: 150A
• Waveform: Pure sine wave output for sensitive electronics
• Transfer performance: Transfers AC loads to batteries in less than 10 milliseconds when grid or generator power is lost
• Generator support: Generator Support Mode can supplement a generator when AC loads exceed generator capacity
• Stacking: Parallel stacking can double AC output in inverter mode; series stacking can generate 120/240V split-phase output with stacking cable part number 808-9005
• Charging: Power factor corrected, multi-stage charger with temperature-compensated charging
• Environmental range: Operating temperature from -4°F to 140°F (-20°C to 60°C)
• Construction: Conformal coated circuit boards for humid environments
• AC interface: Dual input / dual output AC interface for the 3000W model
• Compatibility: Compatible with Xantrex Automatic Generator Start part number 809-0915, sold separately
• Approvals: UL458 with marine supplement, CSA, ABYC, and FCC Class B requirements
