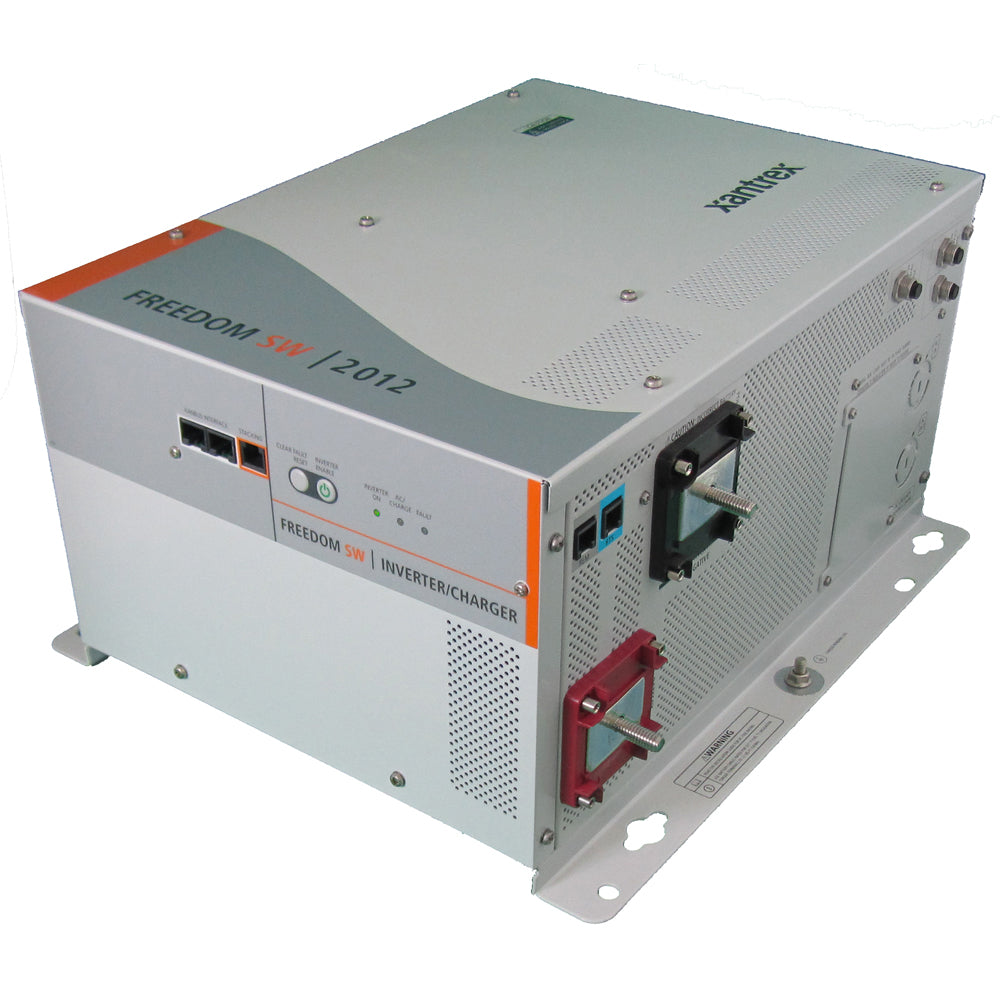

Xantrex Freedom SW2012 12V 2000W Inverter/Charger

Xantrex Freedom SW2012 12V 2000W Inverter/Charger

OM-XANTREX-FREEDOMSW20121-8152012

$1,710.42
$2,936.34 $1,710.42
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

75aCharger Output - Amps
12vCharger Output Voltage
1Charging Banks
OptionalOutlet Qty
120vInverter Output Voltage
12vInverter Input Voltage

The Xantrex Freedom SW2012 is a 12V inverter/charger for mobile power systems that need 2000W output and 120 Vac, 60 Hz service. It is built for applications such as recreational vehicles, commercial and emergency vehicles, marine vessels, construction equipment, and military equipment.

  • Model: Freedom SW2012
  • Part number: 815-2012
  • DC voltage: 12V
  • AC output: 2000W, 120 Vac / 60 Hz
  • Charger rating: 100A charger model
  • Output waveform: Pure sine wave
  • Transfer performance: Transfers AC loads to batteries in less than 10 milliseconds when incoming grid or generator power is lost
  • Generator support: Generator Support Mode can supplement a generator when AC loads exceed generator capacity
  • Stacking: Parallel stacking can double AC output in inverter mode; series stacking can generate 120/240V split phase output
  • Stacking accessory: Series stacking requires Stacking Cable part number 808-9005
  • Charging: Power factor corrected, multi-stage charger with temperature compensated charging
  • Controls: Compatible with Xantrex Automatic Generator Start part number 809-0915, sold separately
  • Temperature range: -4°F to 140°F (-20°C to 60°C)
  • Standards: Approved to UL458 with marine supplement, CSA, ABYC, and FCC Class B requirements
  • Protection: Battery over-voltage and under-voltage protection, over-temperature shutdown, automatic overload protection

Specifications

Charger Output - Amps75a
Charger Output Voltage12v
Charging Banks1
Outlet QtyOptional
Inverter Output Voltage120v
Inverter Input Voltage12v
Charger Input - Voltage120v
Inverter Cont. Output Wattage2000w
BrandXantrex
Manufacturer part #815-2012
UPC715535917036
Boxed dimensions21 x 18 x 13 in
Shipping weight61.7 lb
Country of originTAIWAN
