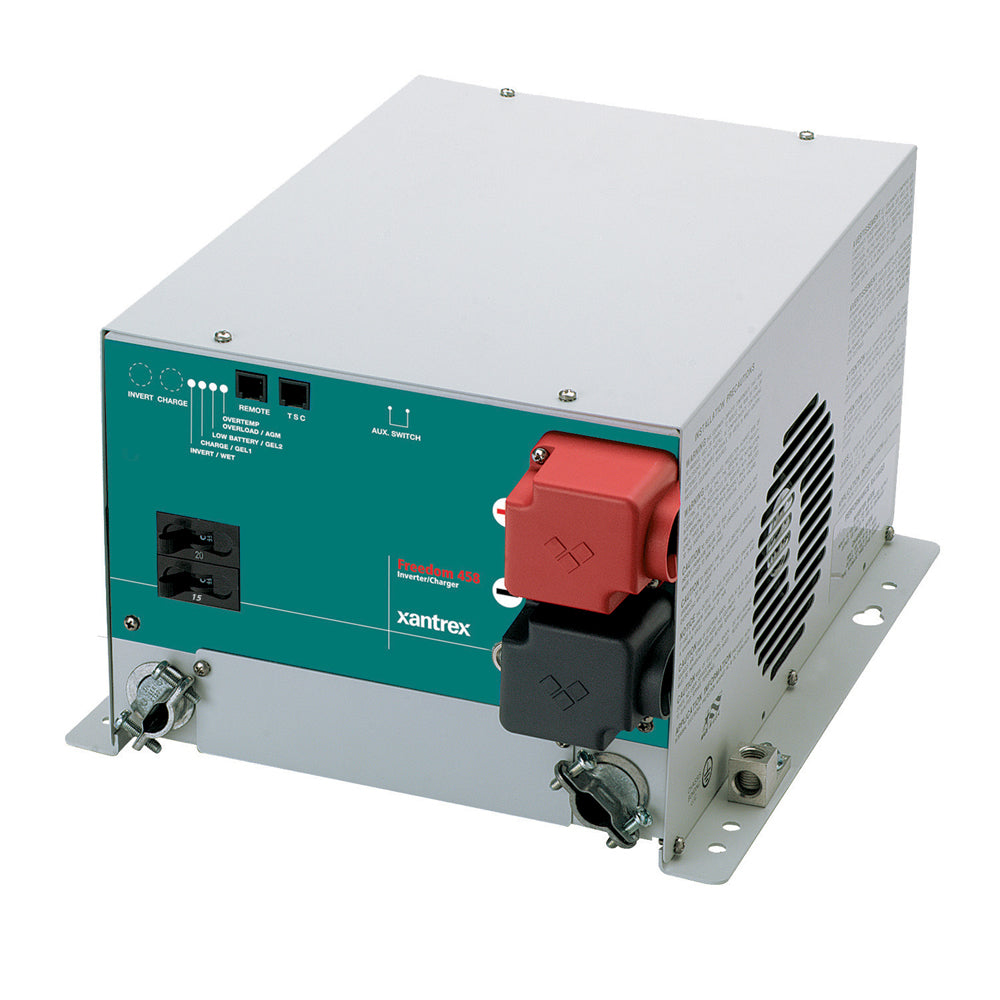

Xantrex Freedom 458 20-12 Inverter/Charger - Single Input/Dual Output

The Xantrex Freedom 458 20-12 combines a modified sine wave inverter, battery charger, and transfer switch for RV AC power systems. It is suited for 12V deep-cycle battery setups where inverter output, automatic charging, and incoming AC transfer are needed in one unit.

• Brand: Xantrex
• Model: Freedom 458 20-12
• Product type: Inverter/charger
• Input/output configuration: Single input / dual output
• Inverter output: 2000W continuous
• Surge power: 50A AC
• Output waveform: Modified sine wave
• Output frequency regulation: 60Hz
• Inverter voltage regulation: 120V +/-5% true RMS
• Efficiency: 85% at full load; 92% peak efficiency
• No-load current draw: 0.12A in idle mode
• AC output connections: Dual - 20/15 circuit breakers
• AC input connections: Single
• Transfer switch: Built-in 30A AC transfer switch
• Charger: Automatic 3-stage battery charger with 100A DC charge rate
• AC input voltage range: 90-130 VAC
• Battery voltage: 12 VDC nominal; 10.0-15.5 VDC range
• Low battery cut-out: 10.0 VDC
• AC input in max charge mode: 21A AC
• Charge voltages: 14.3 VDC bulk, 13.4 VDC float, 16.3 VDC equalize; default value varies with battery type and temperature
• Battery settings: Wet / Gel 1 / Gel 2 / AGM
• Charging features: Equalization, temperature compensation, and included battery temperature sensor

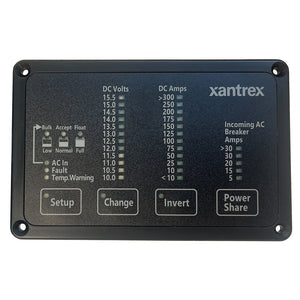

• Control options: Programmable with Freedom Basic Remote or Link 1000 panels
• Protection: Over voltage, under voltage, over-temperature, overload, and short circuit protection
• Warranty: 30 months
