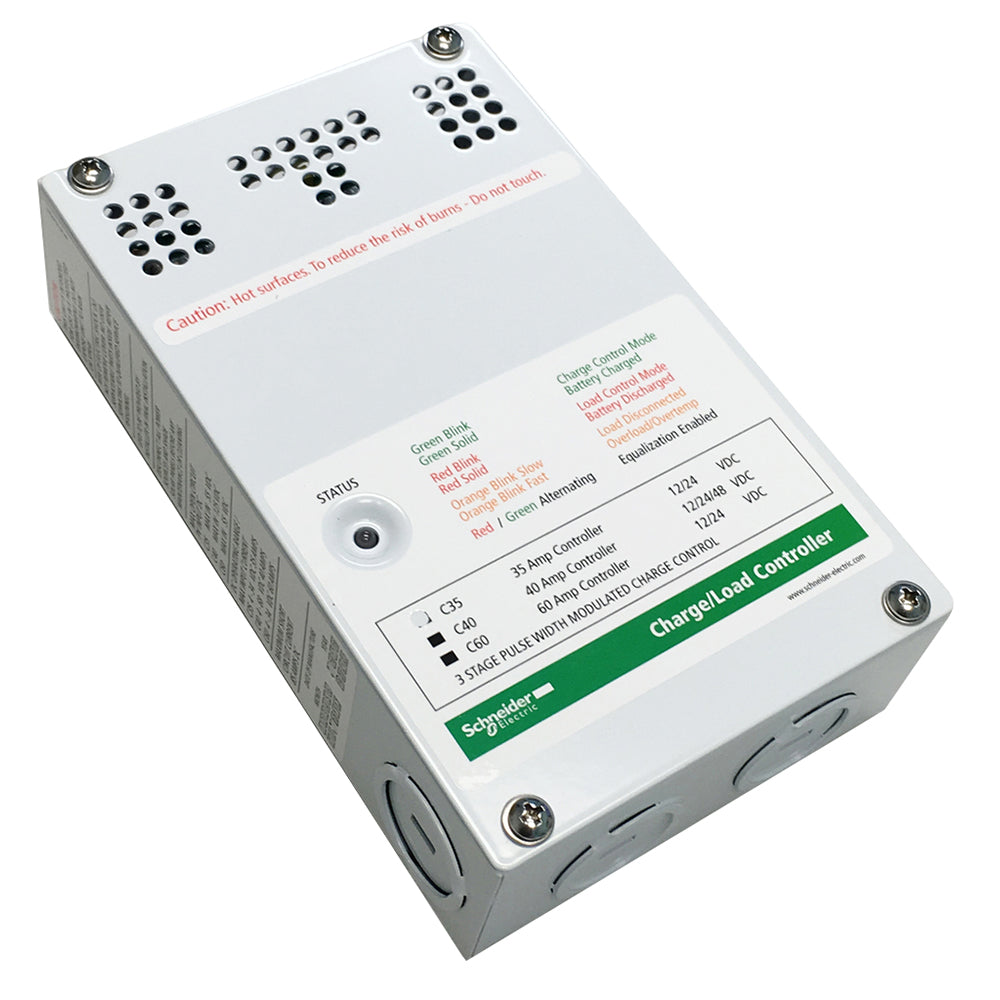

Xantrex C-Series Solar Charge Controller - 35 Amps

The Xantrex C-Series 35 amp solar charge controller is built for DC power systems that need configurable control for charging, diversion or load use. It provides PWM multi-stage, temperature-compensated charging with a solid-state design and onboard protection features.

• Product type: PV charge, diversion and load controller
• Amperage: 35 amps
• Configuration: Field configurable for 12V and 24V operation
• Charging: Pulse width modulated (PWM), multi-stage and temperature compensated
• Status: Standard multi-color charge status LED face plate
• Protection: Electronic protection against short-circuit, overload and over-temperature conditions
• Construction: Conformal-coated boards and powder-coated enclosure
• Adjustability: Field adjustable voltage and battery set point
• System compatibility: Negative ground and ungrounded systems
• Night operation: Automatically disconnects from the battery at night
• Display option: Available remote display with cumulative amp hours
• Warranty: Two-year standard warranty
• Warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), known to the State of California to cause reproductive harm.
