• Xantrex C-Series Solar Charge Controller - 12 Amps
1 1

Xantrex

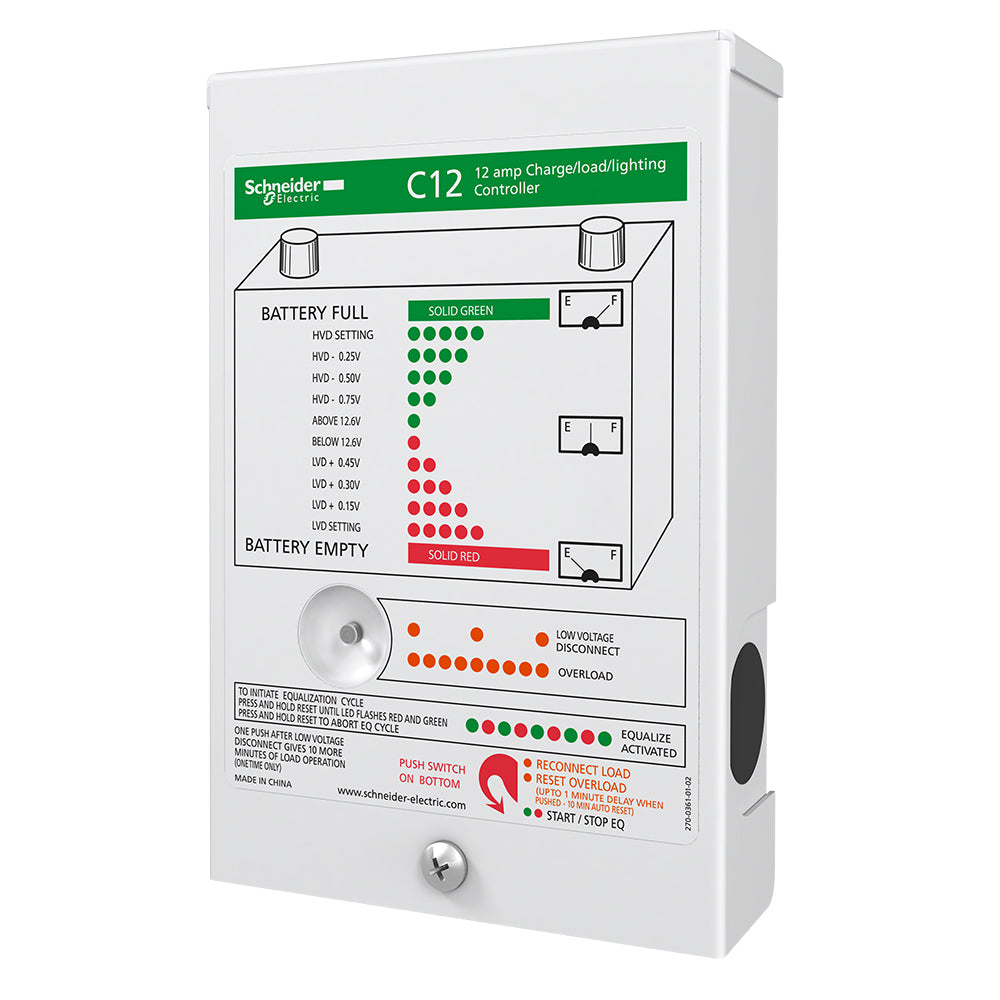

Xantrex C-Series Solar Charge Controller - 12 Amps

Xantrex C-Series Solar Charge Controller - 12 Amps

OM-XANTREX-CSERIESSOLAR-C12

$108.27
$132.76 $108.27
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Xantrex Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Xantrex C-Series C12 is a 12 amp solar charge controller for PV charging, load control, and automatic lighting control. It is suited to remote lighting, outdoor lighting, and similar systems where adjustable battery and lighting behavior is needed.

  • Controller type: PV charge, load, and lighting controller
  • Current rating: 12 amps
  • Charging: Three-stage charging with pulse width modulation
  • Battery settings: User-definable voltage parameters and field-adjustable battery set points
  • Equalization: Automatic equalization
  • Load control: Field-adjustable low-voltage disconnect and reconnect points
  • Low battery signal: Five-minute low battery disconnect signal
  • Lighting control: Adjustable two to eight hour run time or dusk-to-dawn operation
  • Protection: Electronic detection for short circuit, overload, over-temperature, and reverse polarity conditions
  • Construction: Conformal-coated boards and powder-coated enclosure
  • System compatibility: Negative ground and ungrounded systems
  • Night operation: Automatically disconnects from the battery at night
  • Optional accessory: Battery temperature sensor for temperature-based charging
  • Warranty: Two-year standard warranty

Specifications

BrandXantrex
Manufacturer part #C12
UPC687873000520
Boxed dimensions7 x 5 x 2 in
Shipping weight1.35 lb
