Wichard Marine
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"
SKU:OM-WICHARDMARIN-SELFLOCKINGTWI-1225W
Low stock: 1 left
Couldn't load pickup availability
Overview
A connection that needs a 90-degree turn calls for the Wichard Marine self-locking twisted shackle. It suits sailing setups involving an unarticulated component, such as a block on a rail, and can also be used in purchases.
Key features
- The twisted shape accommodates connections that require a 90-degree change in orientation.
- A pin that seats in an indentation keeps vibration from loosening the closure.
- Forged stainless steel construction provides the stated working and breaking loads for selecting suitable hardware.
Specifications
- Brand: Wichard Marine
- Type: Self-locking twisted shackle
- Nominal diameter: 10 mm / 13/32 inch
- Material: Forged grade 316L stainless steel
- Working load: 3,170 lb / 1,440 kg
- Breaking load: 9,920 lb / 4,500 kg
- Weight: 0.28 lb / 127 g

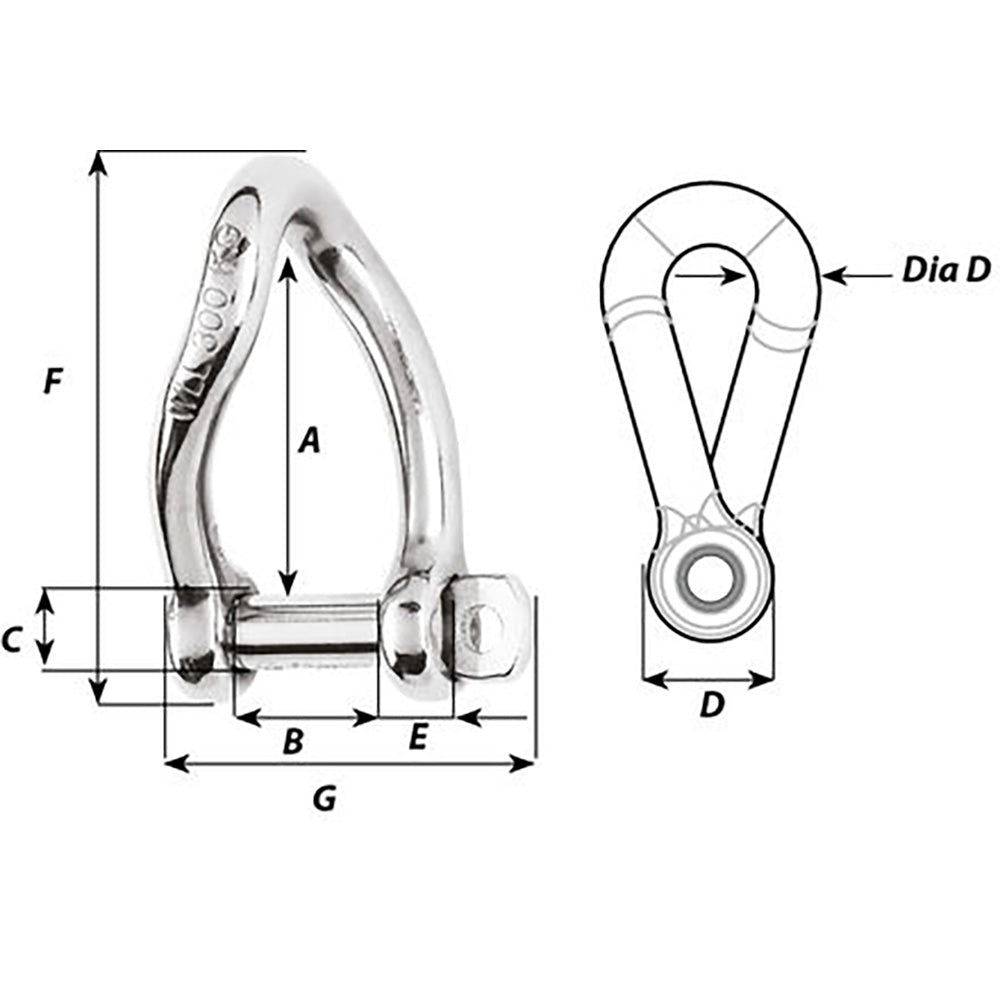

- Dimension A: 1 31/32 inches / 50 mm
- Dimension B: 25/32 inch / 20 mm
- Dimension C: 25/64 inch / 10 mm
- Dimension D: 3/4 inch / 19 mm
- D diameter: 25/64 inch / 10 mm
- Dimension E: 23/64 inch / 9 mm
- Dimension F: 2 29/32 inches / 74 mm
Good to know
Supplied individually. The listed working load applies to nautical use. For industrial applications, the source defines working load limit as breaking load divided by five.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1225W |
| UPC | 768536012255 |
| Boxed dimensions | 6 x 3 x 2 in |
| Shipping weight | 0.3 lb |
