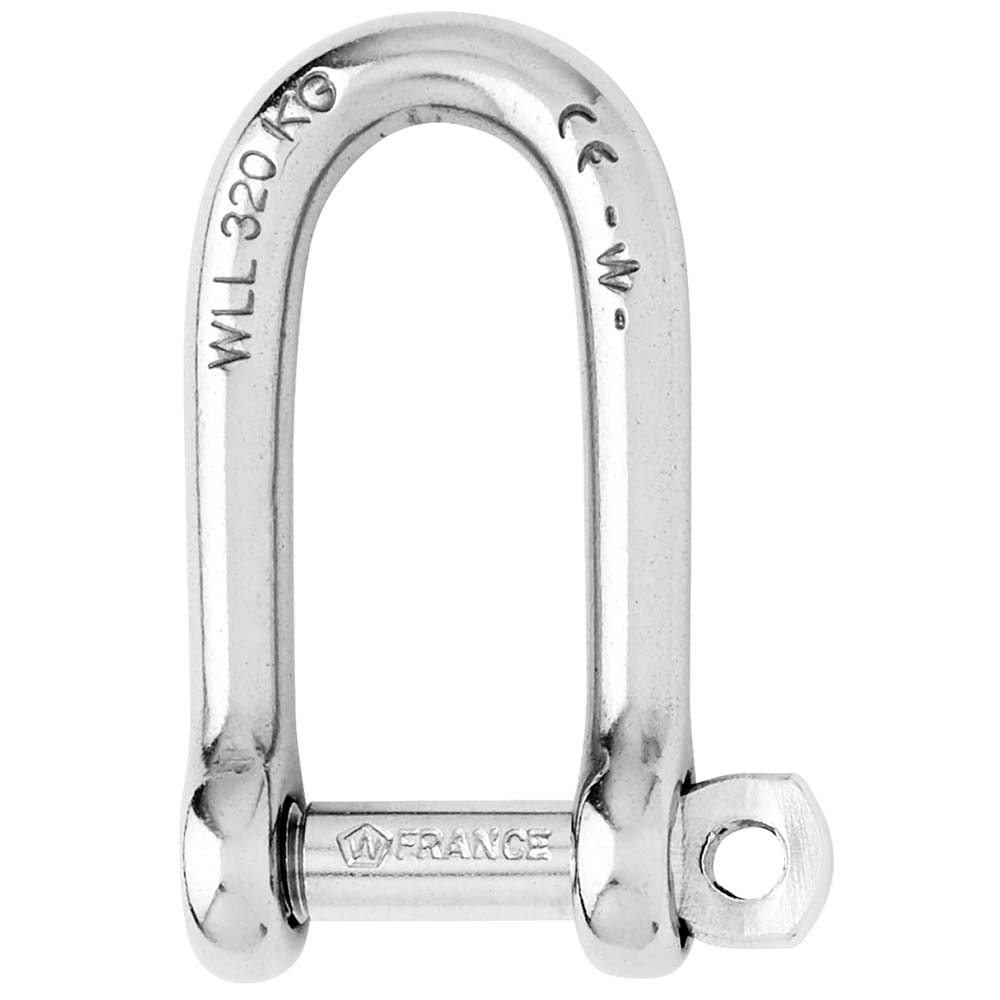

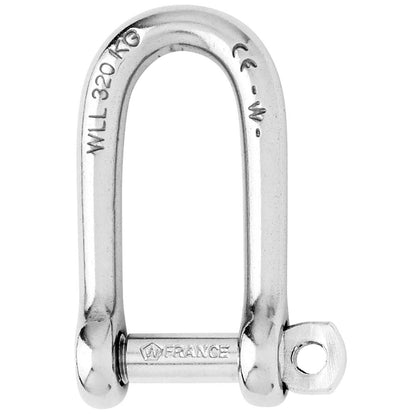

Wichard Self-Locking Long D Shackle - Diameter 6mm - 1/4"
Wichard Self-Locking Long D Shackle - Diameter 6mm - 1/4"
SKU:OM-WICHARDMARIN-SELFLOCKINGLON-1213W
Low stock: 1 left
Couldn't load pickup availability
Overview
When a shackle attachment needs extra length, the Wichard self-locking long D shackle provides an extended shape for sailing hardware connections, including blocks. Its pin engages an indentation to prevent vibration from loosening the connection.
Key features
- The long D shape accommodates attachment points that need more length.
- A self-locking pin resists vibration-related loosening.
- Forged stainless steel construction provides the stated working and breaking load capacities.
- CE marking and a batch number provide identification on the shackle.
Specifications
- Brand: Wichard
- Type: Self-locking long D shackle
- Nominal diameter: 6mm / 1/4 inch
- Material: Forged grade 316L stainless steel
- Working load: 1320lb
- WLL, industrial applications only: 700lb
- Breaking load: 3520lb
- Weight: 0.06lb
- Markings: CE and batch number
- Dimension A: 1-19/64 inches
- Dimension B: 15/32 inch
- Dimension C: 15/64 inch
- Dimension D: 15/32 inch
- D diameter: 15/64 inch
- Dimension E: 13/64 inch
- Dimension F: 1-27/32 inches
- Dimension G: 1-7/32 inches
Good to know
The source lists working load and WLL separately; the 700lb WLL applies only to industrial applications. Lettered dimensions correspond to the manufacturer's dimension diagram.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1213W |
| UPC | 768536012132 |
| Boxed dimensions | 6 x 2 x 1 in |
| Shipping weight | 0.05 lb |
