Overview

When a sailing attachment needs extra length, the Wichard self-locking long D shackle provides an extended connection for applications such as blocks. Its forged stainless steel body pairs with a pin that seats in an indentation to resist loosening from vibration.

Key features

  • The long D shape accommodates connections that need more length.
  • A self-locking pin helps keep the connection secure under vibration.
  • Forged 316L stainless steel construction provides a rated load-bearing connection.

Specifications

  • Product type: Self-locking long D shackle
  • Material: Forged 316L stainless steel
  • Diameter: 10 mm
  • Nautical working load: 3,350 lb / 1,520 kg
  • Industrial working load limit: 1,890 lb / 860 kg
  • Breaking load: 9,470 lb / 4,300 kg
  • Weight: 0.282 lb

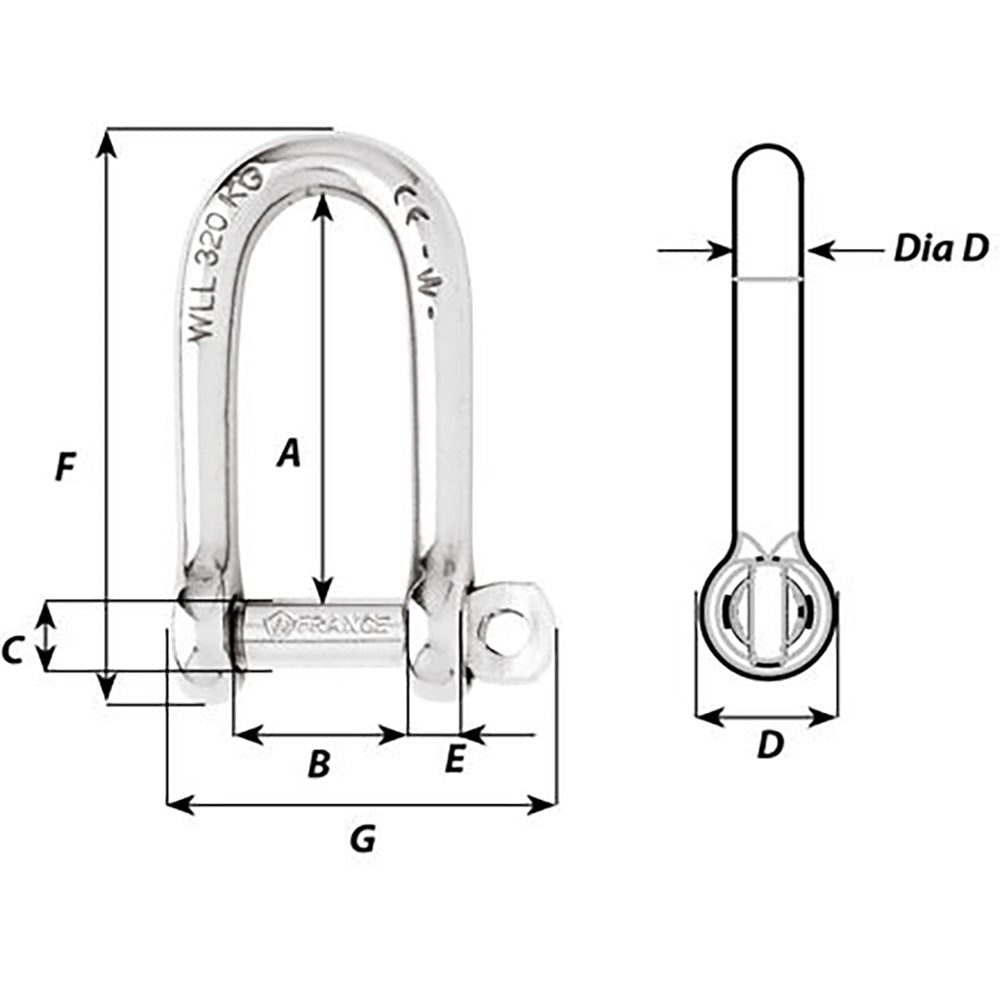

  • Dimension A: 55 mm
  • Dimension B: 20 mm
  • Dimension C: 10 mm
  • Dimension D: 19 mm
  • D diameter: 10 mm
  • Dimension E: 9 mm
  • Dimension G: 79 mm
  • Dimension H: 52 mm
  • Marking: CE
  • Quantity: One shackle

Good to know

The working load applies to nautical use. The separate working load limit applies only to industrial uses, including lifting.
