Wichard Self-Locking Large Shackle - Diameter 5mm - 3/16"
Wichard Self-Locking Large Shackle - Diameter 5mm - 3/16"
SKU:OM-WICHARDMARIN-SELFLOCKINGLAR-1262W
Low stock: 1 left
Couldn't load pickup availability
Overview

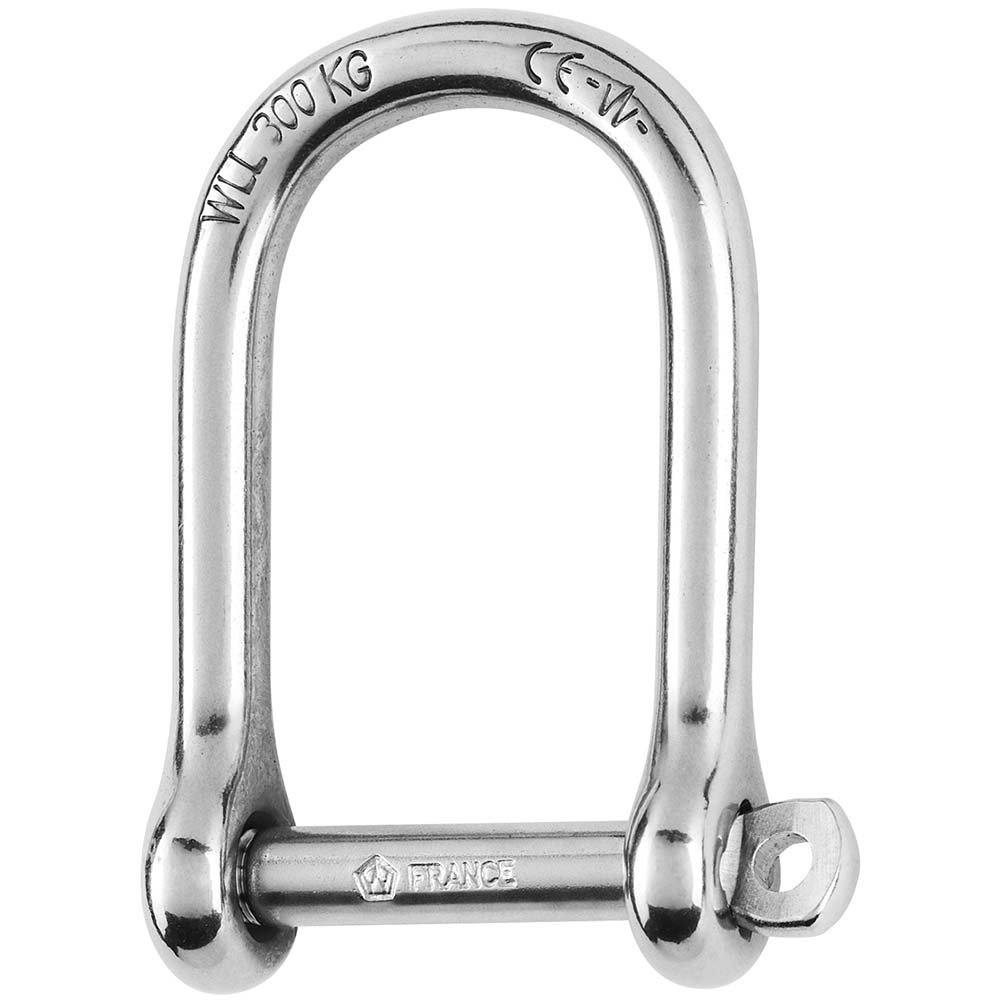

A larger opening gives the Wichard 5 mm Self-Locking Large Shackle room for connections where clearance matters. For sailing applications that need this shape, its locking pin engages an indentation to resist vibration-induced loosening.
Key features
- The large-opening shape accommodates connections that need additional room.
- A pin that seats in an indentation helps maintain closure under vibration.
- Forged 316L stainless steel construction carries the specified working and breaking loads.
- CE and batch markings make the shackle's identification available on the part.
Specifications
- Type: Self-locking large shackle
- Nominal diameter: 5 mm (3/16 inch)
- Material: Forged grade 316L stainless steel
- Working load: 550 lb
- WLL: 480 lb
- Breaking load: 2,420 lb
- Weight: 0.035 lb
- Markings: CE and batch number

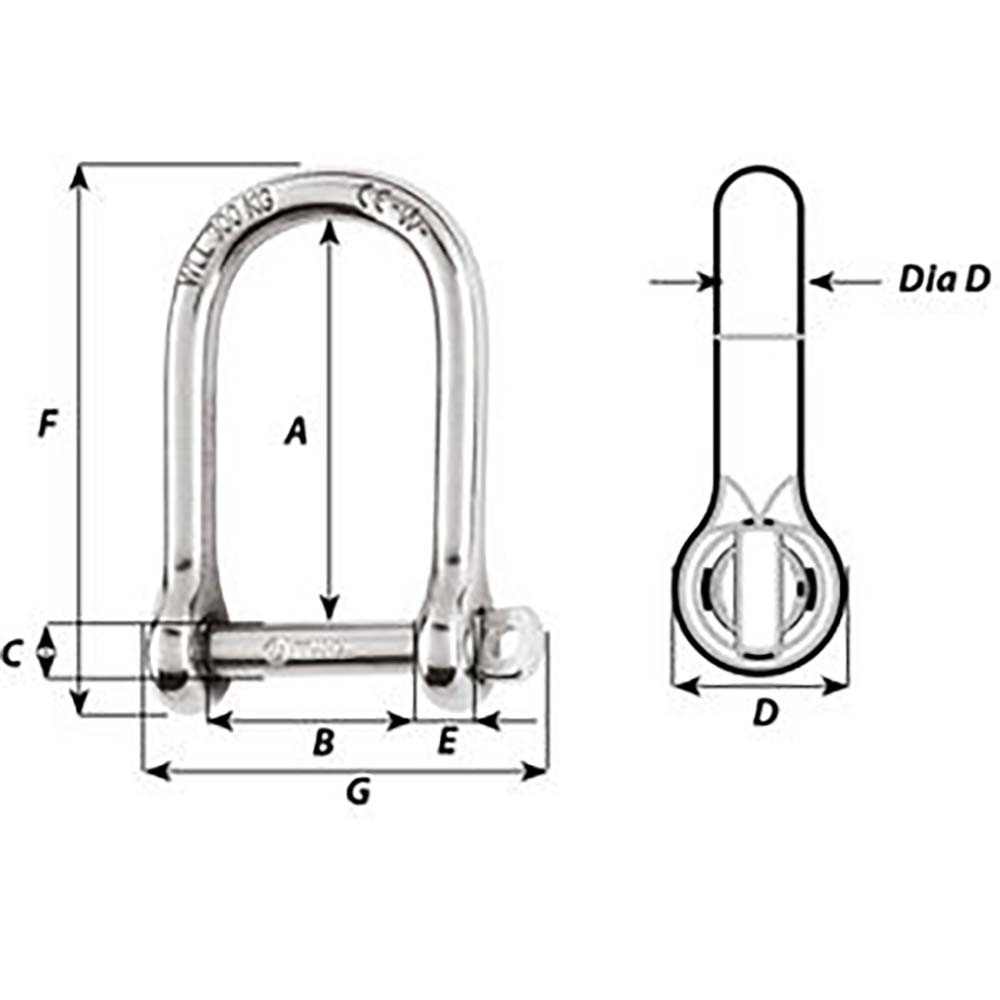

- Dimension A: 1-27/64 inches
- Dimension B: 25/32 inch
- Dimension C: 13/64 inch
- Dimension D: 7/16 inch
- D diameter: 13/64 inch
- Dimension E: 13/64 inch
- Dimension F: 1-57/64 inches
- Dimension G: 1-3/8 inches
Good to know
WLL is specified only for industrial uses, including lifting. The working load and breaking load are separate figures.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1262W |
| UPC | 768536012620 |
| Boxed dimensions | 4 x 2 x 1 in |
| Shipping weight | 0.1 lb |
