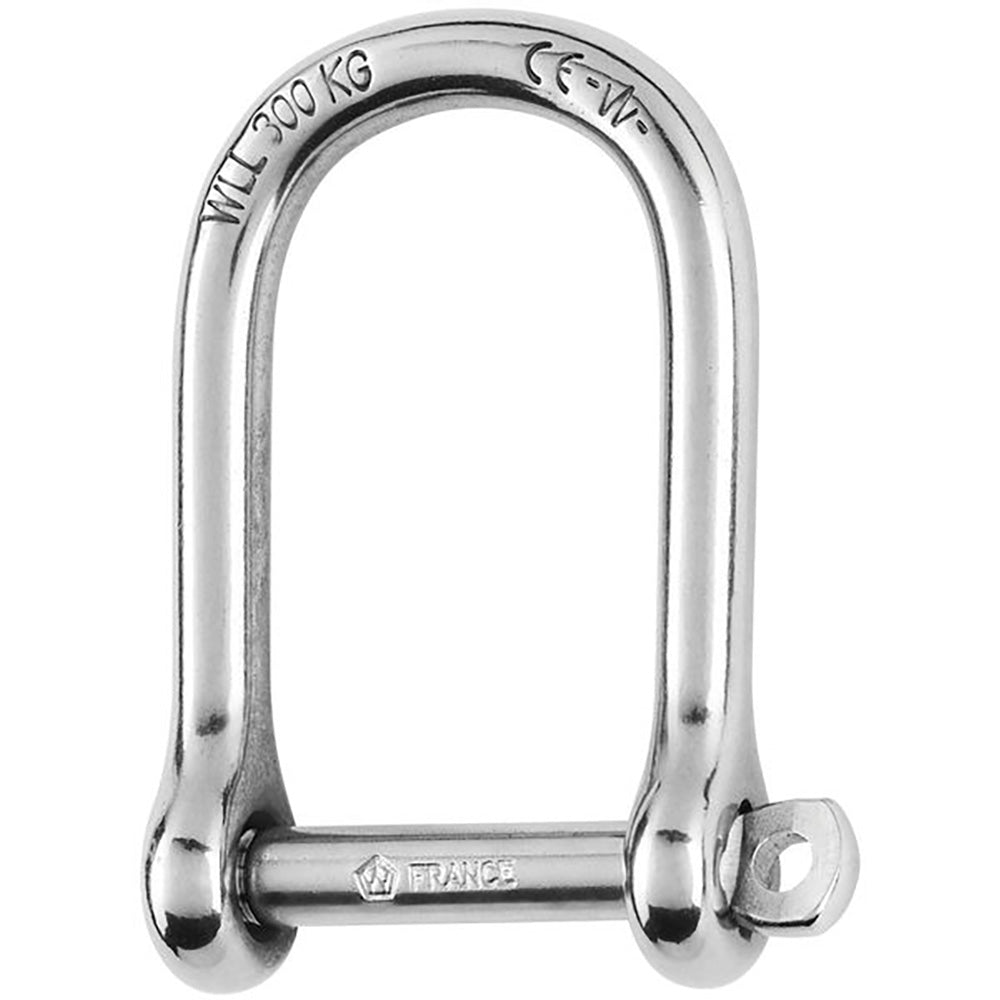

Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"
Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"
SKU:OM-WICHARDMARIN-SELFLOCKINGLAR-1264W
Low stock: 1 left
Couldn't load pickup availability
Overview
When a sailing connection needs a larger shackle opening, this Wichard Marine shackle provides an 8 mm option with a self-locking pin. The pin seats in an indentation to prevent vibration from working it loose.
Key features
- A large opening accommodates connections that need extra clearance.
- The locking pin arrangement keeps vibration from loosening the closure.
- Separate nautical working load and industrial lifting ratings help you identify the applicable load figure.
Specifications
- Construction: Forged stainless steel, described as grade 316L
- Diameter: 8 mm / 5/16 inch
- Nautical working load: 810 kg / 1780 lb
- Industrial working load limit: 540 kg / 1190 lb
- Breaking load: 2700 kg / 5950 lb
- Weight: 67 g / 0.148 lb
- Marking: CE

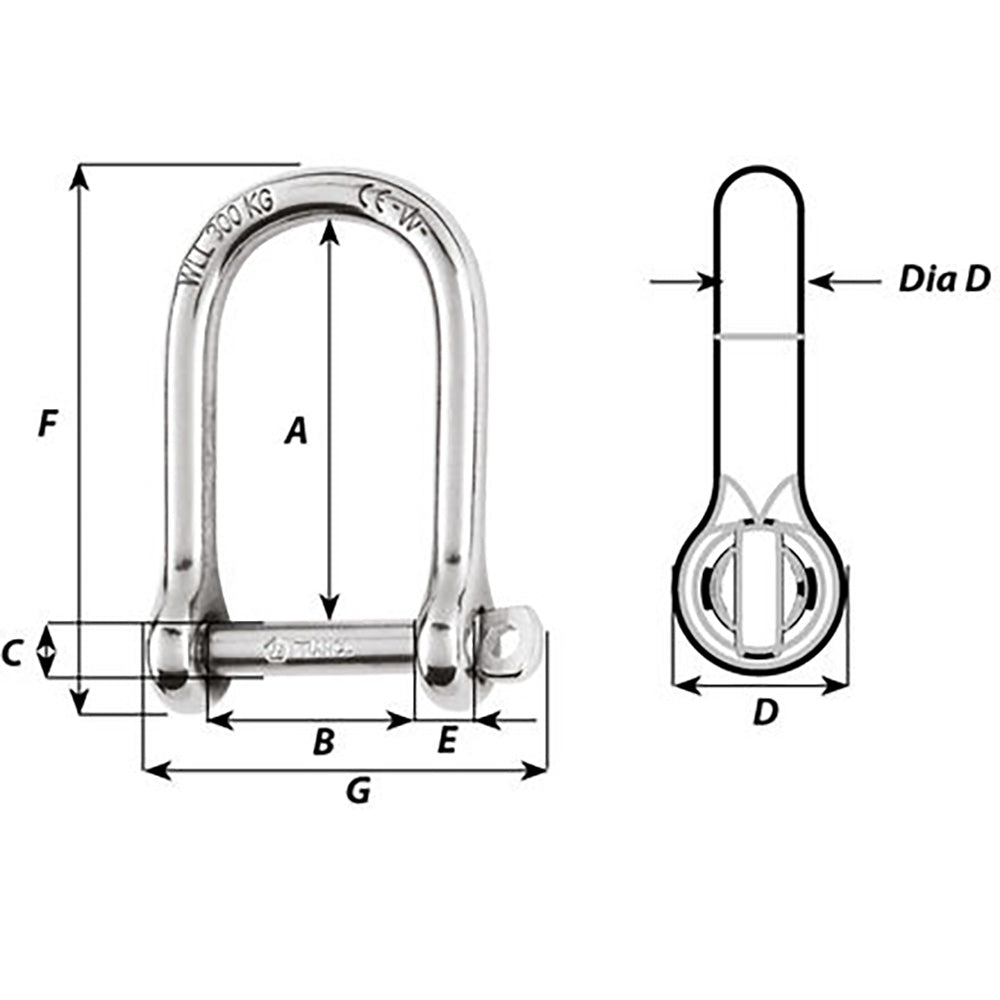

- Dimension A: 57 mm / 2 1/4 inches
- Dimension B: 32 mm / 1 17/64 inches
- Dimension C: 8 mm / 5/16 inch
- Dimension D: 17 mm / 43/64 inch
- D diameter: 8 mm / 5/16 inch
- Dimension E: 8 mm / 5/16 inch
- Dimension F: 77 mm / 3 1/32 inches
- Dimension G: 57 mm / 2 1/4 inches
Good to know
Sold individually. Use the working load figure for nautical applications; the WLL figure applies only to industrial applications such as lifting.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1264W |
| UPC | 3587790012644 |
| Boxed dimensions | 3 x 2 x 0 in |
| Shipping weight | 0.2 lb |
| Country of origin | TAIWAN |
