• Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"
  • 97637
1 2

Wichard Marine

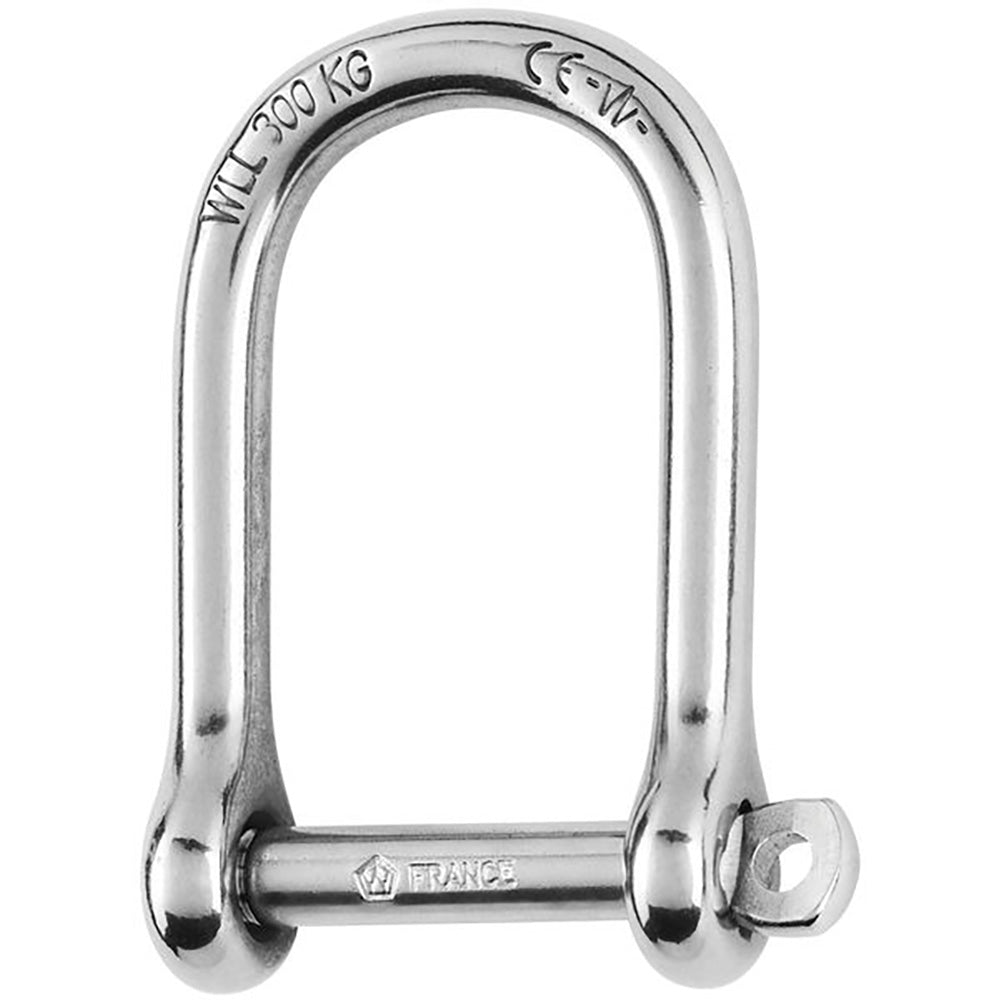

Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

OM-WICHARDMARIN-SELFLOCKINGLAR-1265W

$99.16
$116.66 $99.16
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

When a connection calls for extra opening space, the Wichard large opening shackle provides a self-locking option for nautical applications. Its pin seats in an indentation to resist vibration-related loosening.

Key features

  • A large opening accommodates connections that need more room.
  • The locking pin helps keep the shackle secured when exposed to vibration.
  • Forged 316L stainless steel construction provides a nautical working load of 1,280 kg.

Specifications

  • Material: Forged 316L stainless steel
  • Diameter: 10 mm
  • Nautical working load: 2,820 lb / 1,280 kg
  • Industrial working load limit: 1,760 lb / 800 kg
  • Breaking load: 8,810 lb / 4,000 kg
  • Marking: CE

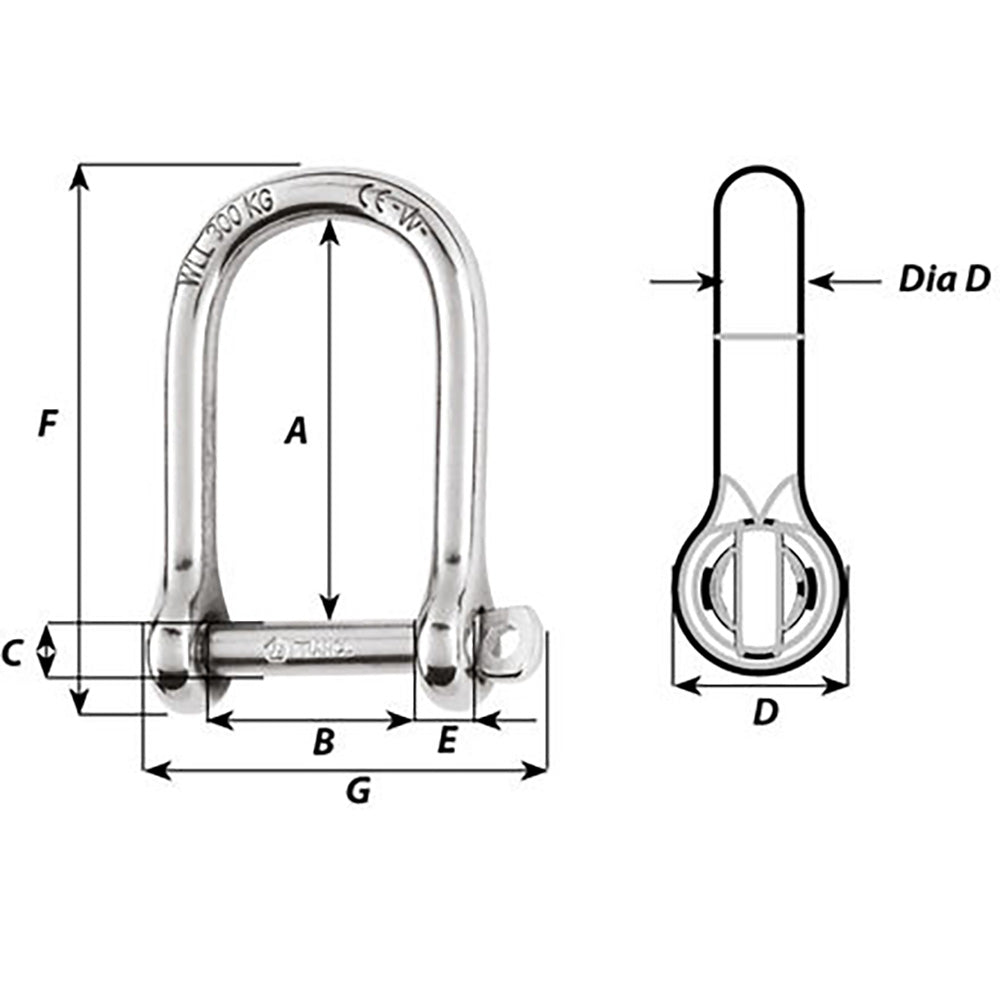

  • Dimension A: 72 mm
  • Dimension B: 40 mm
  • Dimension C: 10 mm
  • Dimension D: 21 mm
  • Dimension E: 10 mm
  • Dimension G: 71 mm

Good to know

Supplied individually. The working load applies to nautical use; the working load limit applies only to industrial applications such as lifting.

Specifications

BrandWichard Marine
Manufacturer part #1265W
UPC3587790012651
Boxed dimensions6 x 3 x 1 in
Shipping weight0.4 lb

Manuals & documents

Quick start guidePDF ↓
