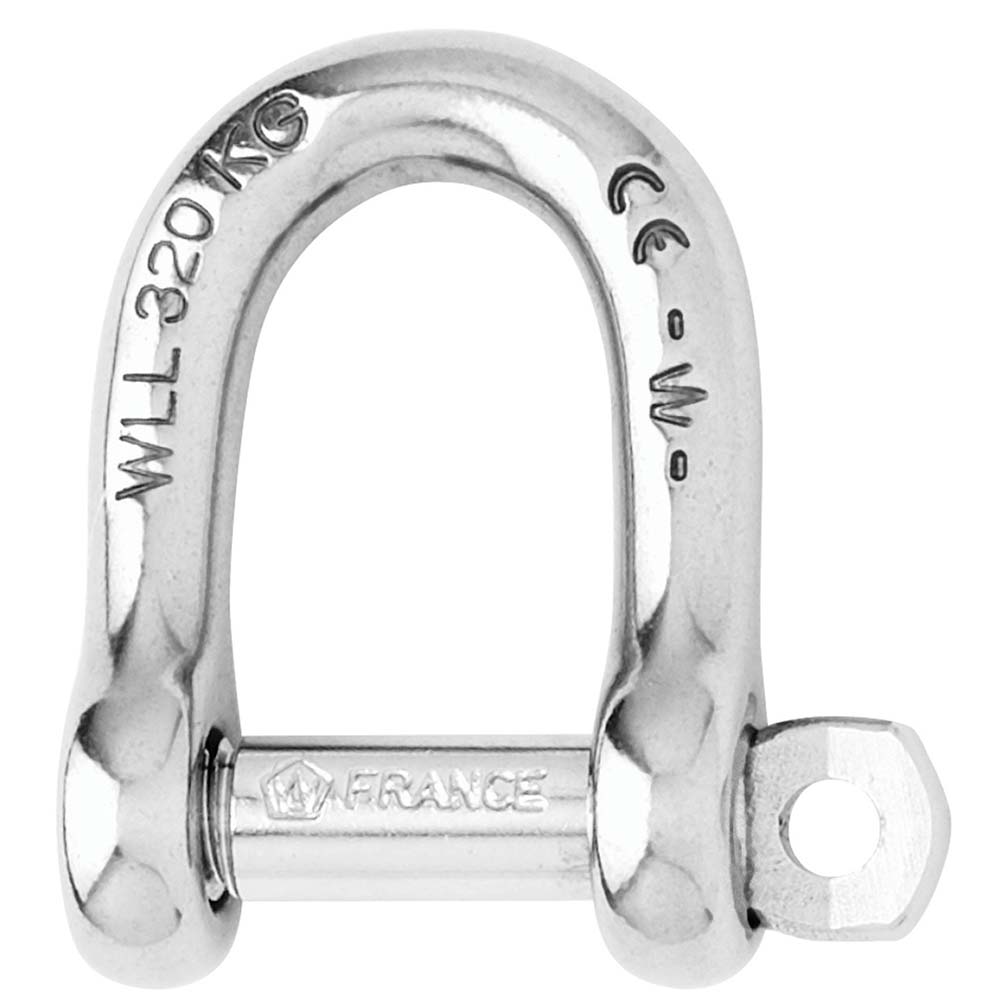

• Wichard Self-Locking D Shackle - Diameter 4mm - 5/32"
  • 93089
1 2

Wichard Marine

Wichard Self-Locking D Shackle - Diameter 4mm - 5/32"

Wichard Self-Locking D Shackle - Diameter 4mm - 5/32"

OM-WICHARDMARIN-SELFLOCKINGD-1201W

$22.03
$22.03
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Secure blocks and other sailing attachments with the Wichard Marine 4mm Self-Locking D Shackle. The pin engages an indentation to resist vibration-induced loosening, while the forged stainless steel body provides the attachment connection.

Key features

  • A pin-and-indentation locking arrangement helps keep vibration from loosening the closure.
  • The D-shackle format serves standard attachment applications, including blocks.
  • CE and batch markings provide identification details on the hardware.

Specifications

  • Brand: Wichard Marine
  • Type: Self-locking D shackle
  • Material: Forged grade 316L stainless steel
  • Diameter: 4mm / 5/32 inch
  • Working load: 700lb
  • WLL, industrial applications only: 300lb
  • Breaking load: 1540lb
  • Weight: 0.015lb

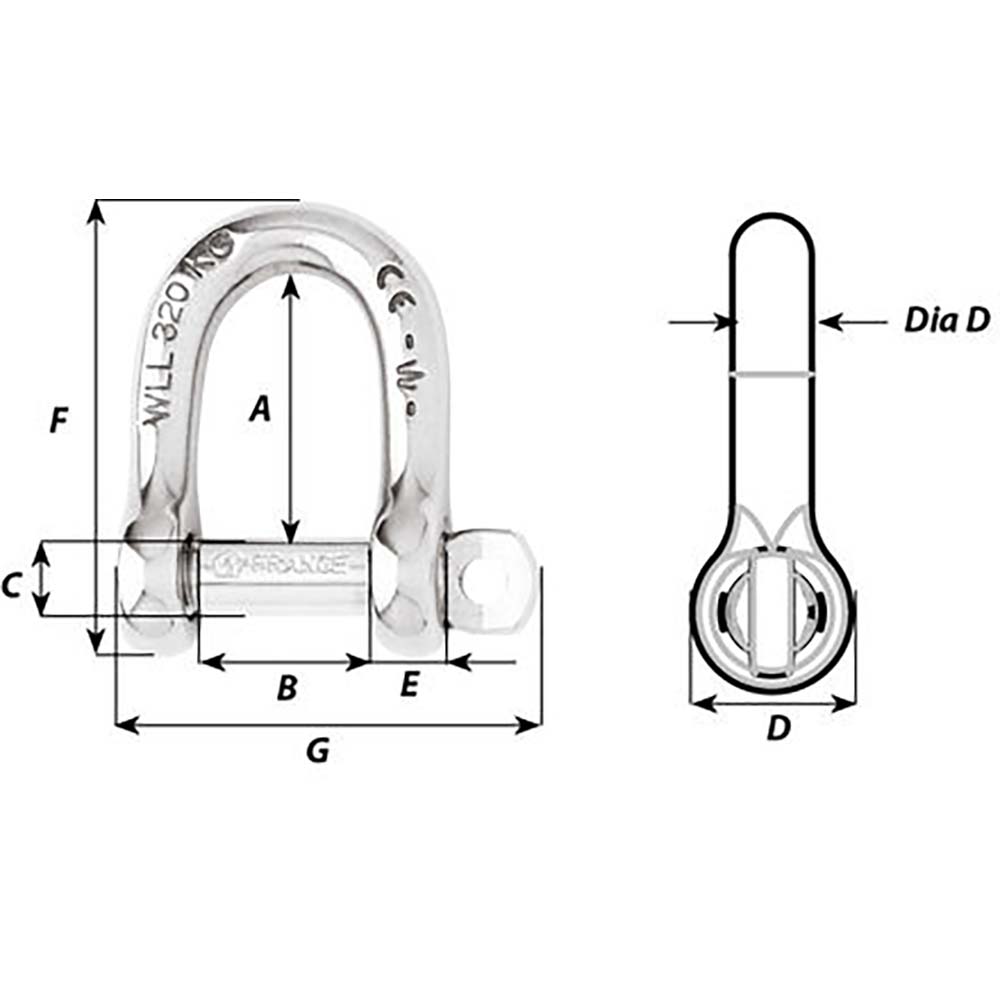

  • Dimension A: 33/64 inch
  • Dimension B: 5/16 inch
  • Dimension C: 5/32 inch
  • Dimension D: 5/16 inch
  • D diameter: 5/32 inch
  • Dimension E: 1/8 inch
  • Dimension F: 29/32 inch
  • Dimension G: 25/32 inch
  • Markings: CE and batch number

Good to know

The 300lb WLL applies only to industrial uses such as lifting. The separately stated working load is 700lb.

Specifications

BrandWichard Marine
Manufacturer part #1201W
UPC3587790012019
Boxed dimensions4 x 2 x 0 in
Shipping weight0.05 lb
