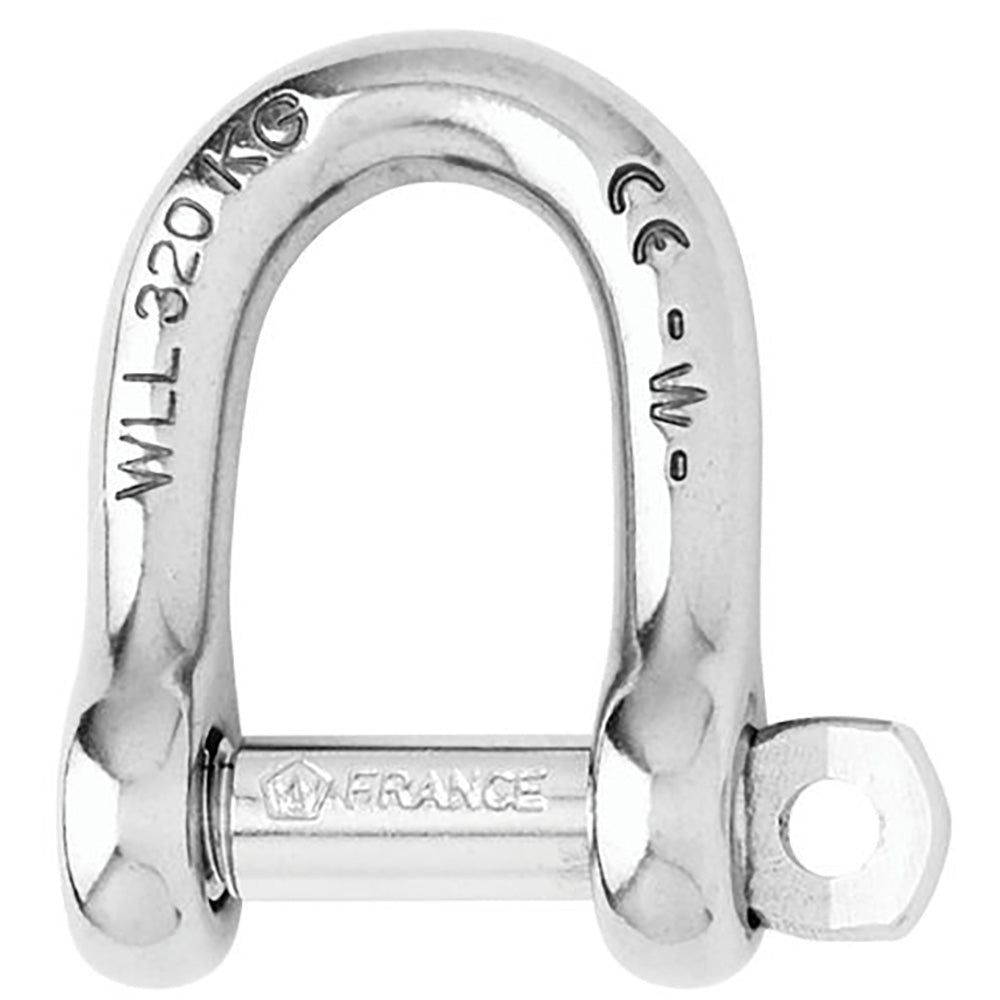

Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"
Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"
SKU:OM-WICHARDMARIN-SELFLOCKINGD-1206W
Low stock: 1 left
Couldn't load pickup availability
Overview
For sailors attaching blocks and other hardware, this Wichard Marine D shackle provides a forged stainless steel connection. Its self-locking pin engages an indentation to resist loosening from vibration.
Key features
- The self-locking pin helps keep the connection secured when exposed to vibration.
- Forged 316L stainless steel construction provides the stated load capacity in a metal shackle.
- The D-shackle format serves standard attachment jobs, including connecting blocks.
- Separate nautical and industrial load figures help you identify the rating relevant to your application.
Specifications
- Type: Self-locking D shackle
- Material: Forged grade 316L stainless steel
- Diameter: 12mm / 15/32 inch
- Nautical working load: 4,580lb / 2,080kg
- Industrial working load limit: 2,640lb / 1,200kg
- Breaking load: 13,220lb / 6,000kg
- Weight: 0.425lb / 193g

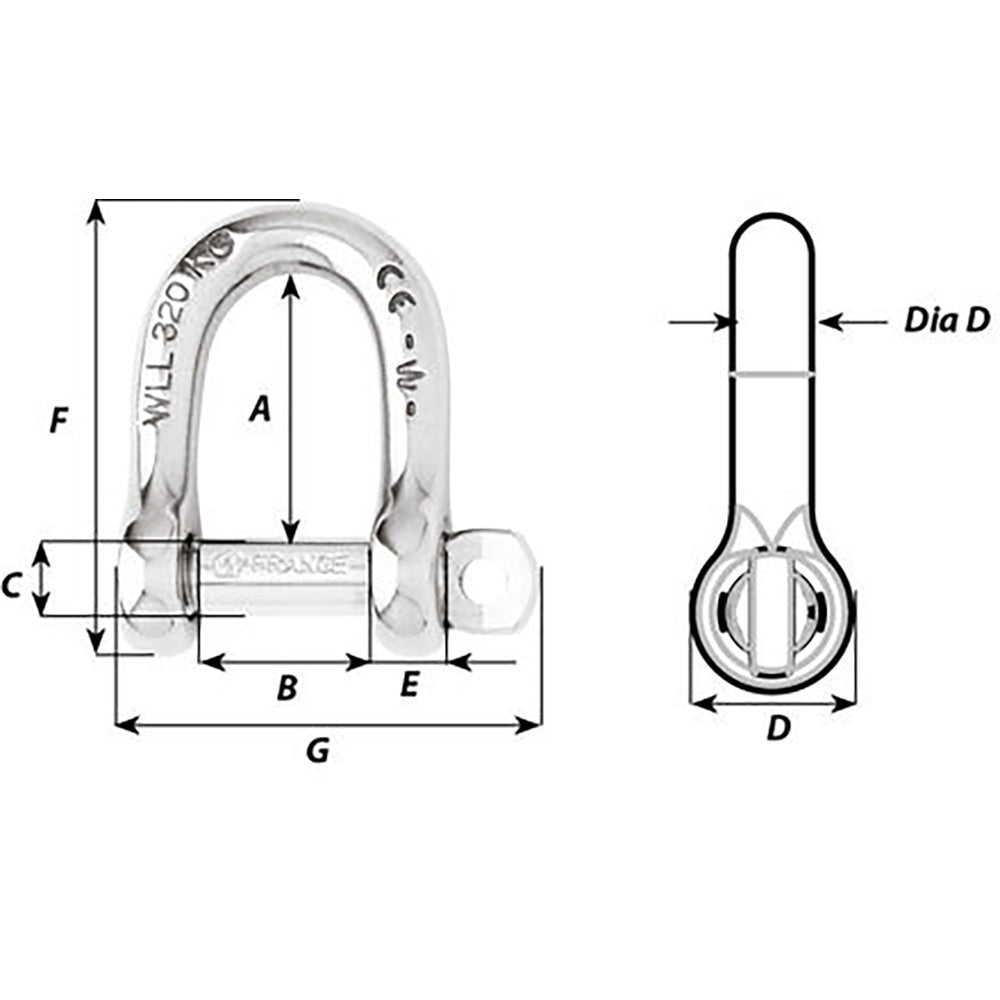

- Dimension A: 42mm
- Dimension B: 27mm
- Dimension C: 12mm
- Dimension D: 24mm
- D diameter: 12mm
- Dimension E: 11mm
- Dimension F: 73mm
- Dimension G: 62mm
- Marking: CE
Good to know
Supplied individually. The working load applies to nautical use; the working load limit applies only to industrial applications such as lifting.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1206W |
| UPC | 3587790012064 |
| Boxed dimensions | 3 x 3 x 0 in |
| Shipping weight | 0.4 lb |
