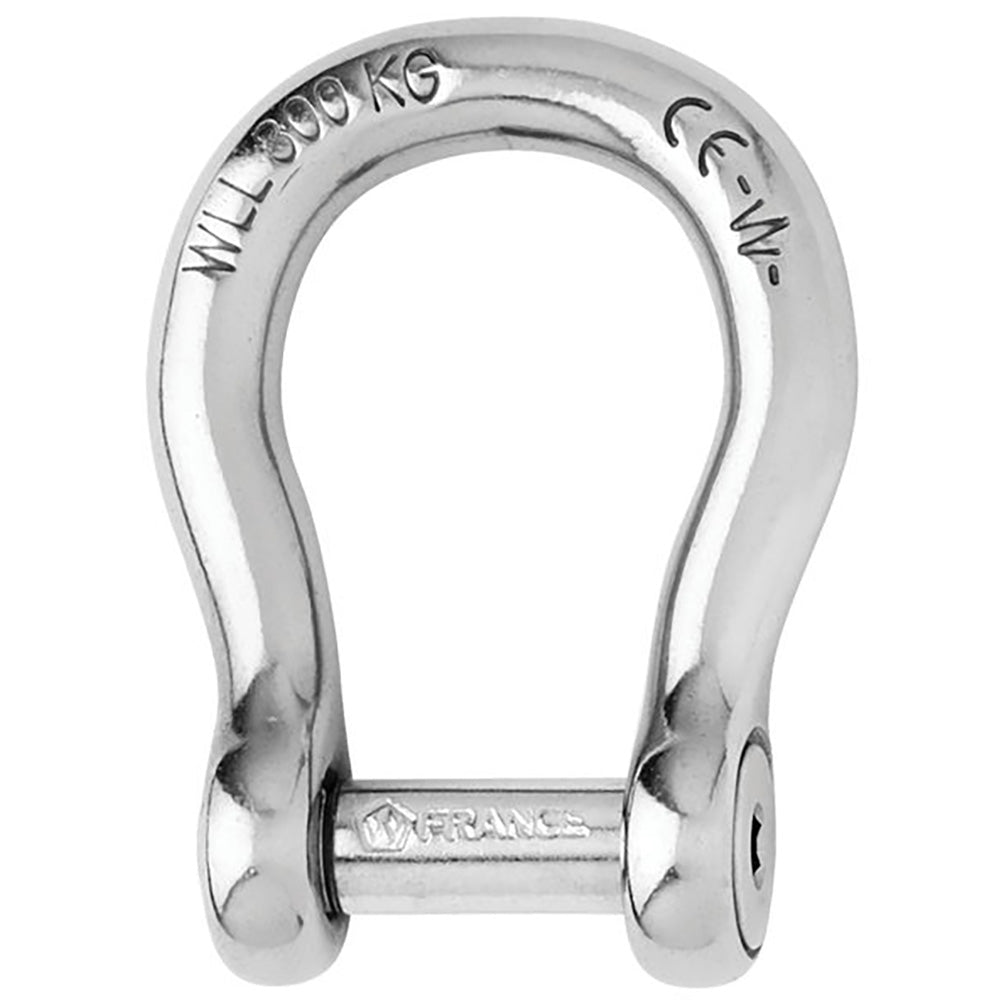

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Connect chain and anchor hardware or use this Wichard bow shackle on a halyard where exposed pin heads can catch sails. Its recessed Allen head pin and self-locking arrangement help keep the connection secure without a protruding head.

Key features

• The pin engages an indentation to resist loosening from vibration.
• A pin head contained within the shackle body reduces snagging and helps avoid sail damage on halyards.
• Chain-to-anchor connections are among the stated uses.
• Separate nautical and industrial load ratings let you check the figure relevant to your application.

Specifications

• Diameter: 8 mm (5/16 inch)
• Material: Forged grade 316L stainless steel
• Nautical working load: 2,110 lb (960 kg)
• Industrial working load limit: 1,190 lb (540 kg)
• Breaking load: 5,950 lb (2,700 kg)
• Weight: 0.148 lb (67 g)

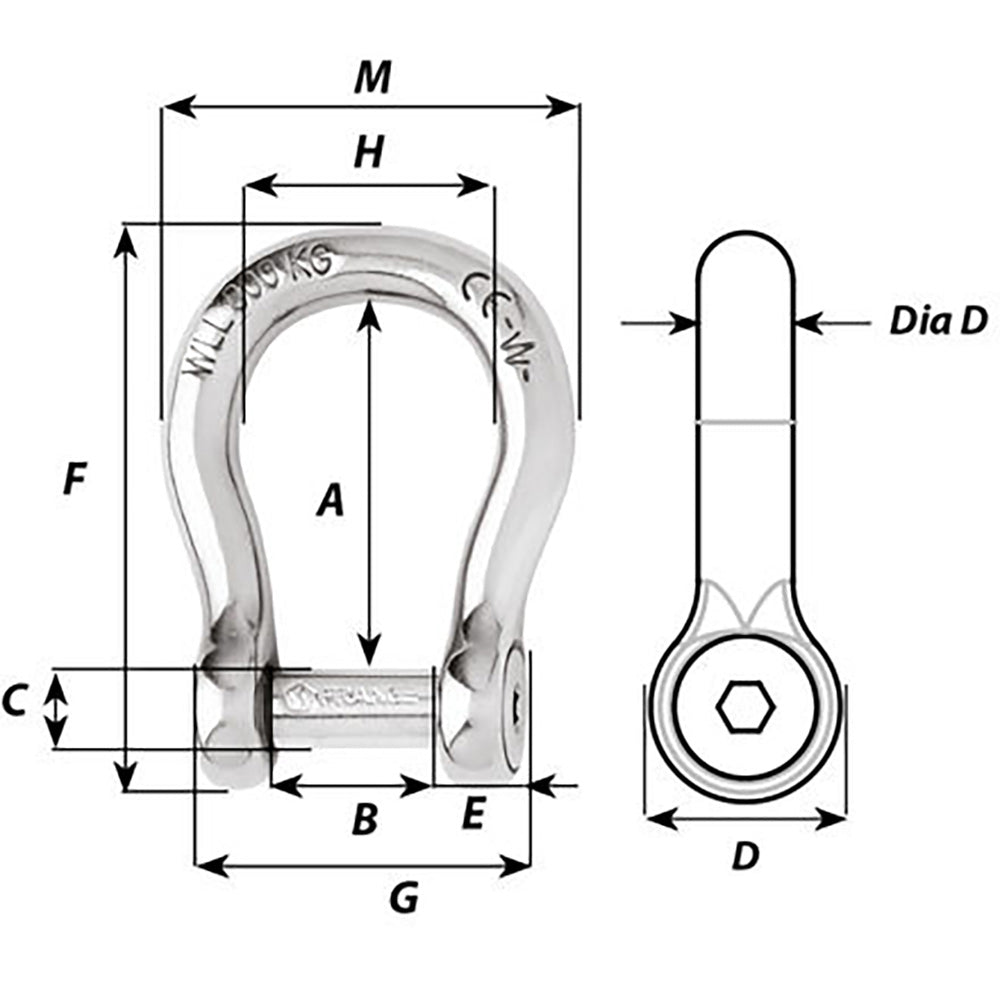

• Dimension A: 1 29/64 inches (37 mm)
• Dimension B: 5/8 inch (16 mm)
• Dimension C: 5/16 inch (8 mm)
• Dimension D: 5/8 inch (16 mm)
• D diameter: 5/16 inch (8 mm)
• Dimension E: 9/32 inch (7 mm)
• Dimension F: 63/64 inch (25 mm)
• Dimension M: 1 37/64 inches (40 mm)
• Marking: CE

Good to know

Sold individually. Use the working load figure for nautical applications; the working load limit applies only to industrial applications, including lifting, and equals the breaking load divided by five.
