Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"
SKU:OM-WICHARDMARIN-NOTSELFLOCKING-1207W
Low stock: 1 left
Couldn't load pickup availability
Overview

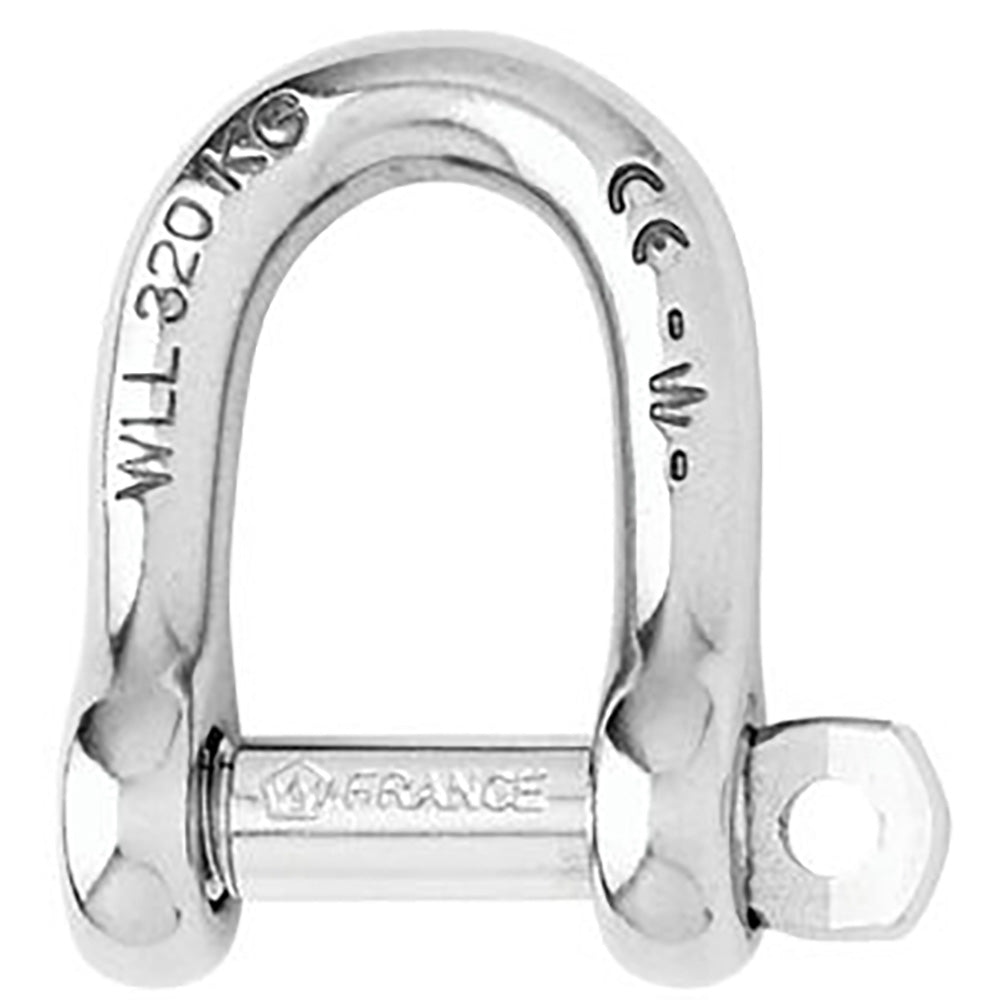

Connect blocks and sailing hardware with the Wichard Marine 14mm D shackle, part 01207. This forged stainless steel model suits standard shackle attachment applications and uses a non-self-locking design.
Key features
- The D-shackle format provides a connection for blocks and other attachment hardware.
- Forged 316L stainless steel construction provides the stated load capacity.
- Distinct nautical and industrial load ratings help you select against the appropriate application limit.
Specifications
- Part number: 01207
- Type: Non-self-locking D shackle
- Material: Forged grade 316L stainless steel
- Diameter: 14mm
- Nautical working load: 5,290lb / 2,400kg
- Industrial working load limit: 3,520lb / 1,600kg
- Breaking load: 17,630lb / 8,000kg
- Weight: 0.688lb / 312g

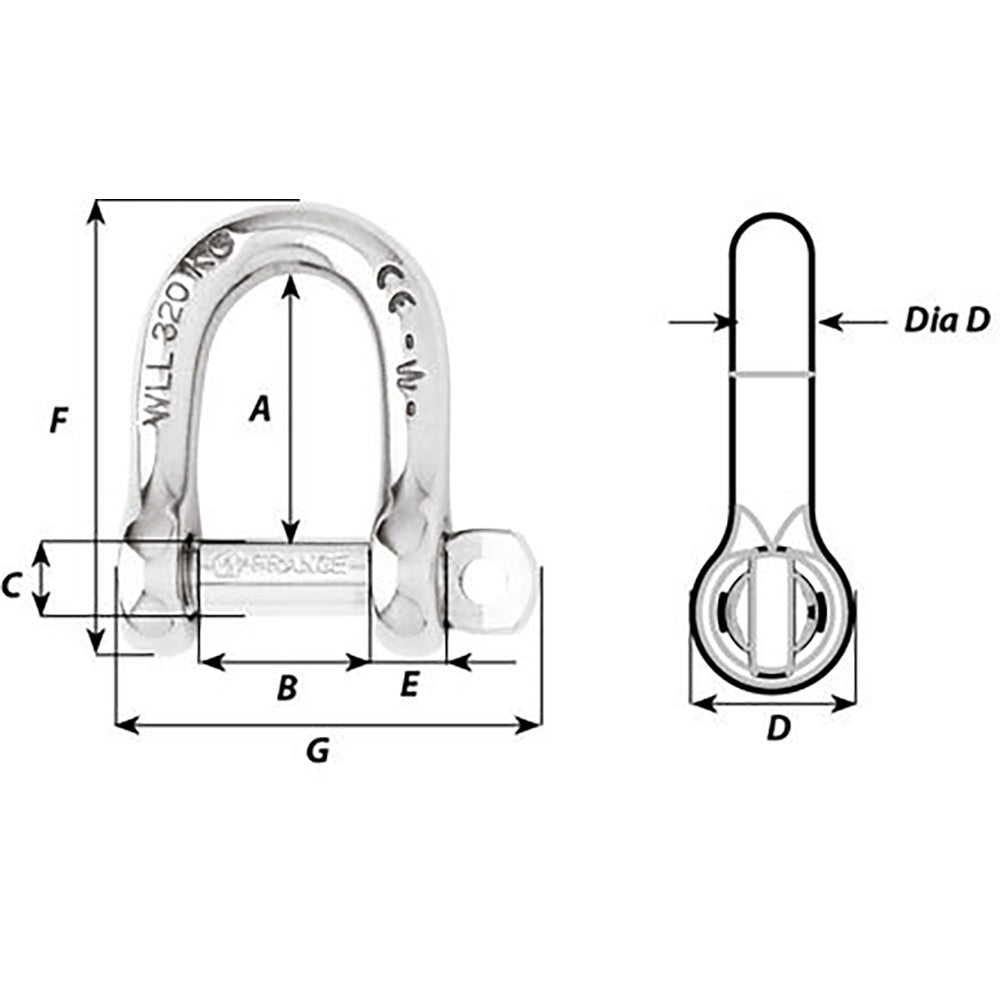

- Dimension A: 47mm
- Dimension B: 28mm
- Dimension C: 14mm
- Dimension D: 28mm
- D diameter: 14mm
- Dimension E: 13mm
- Dimension F: 82mm
- Dimension G: 78mm
- Marking: CE
Good to know
Sold individually. Part 01207 is not self-locking. Use the nautical working load for marine applications; the working load limit is reserved for industrial applications such as lifting.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 1207W |
| Boxed dimensions | 6 x 3 x 1 in |
| Shipping weight | 0.7 lb |
