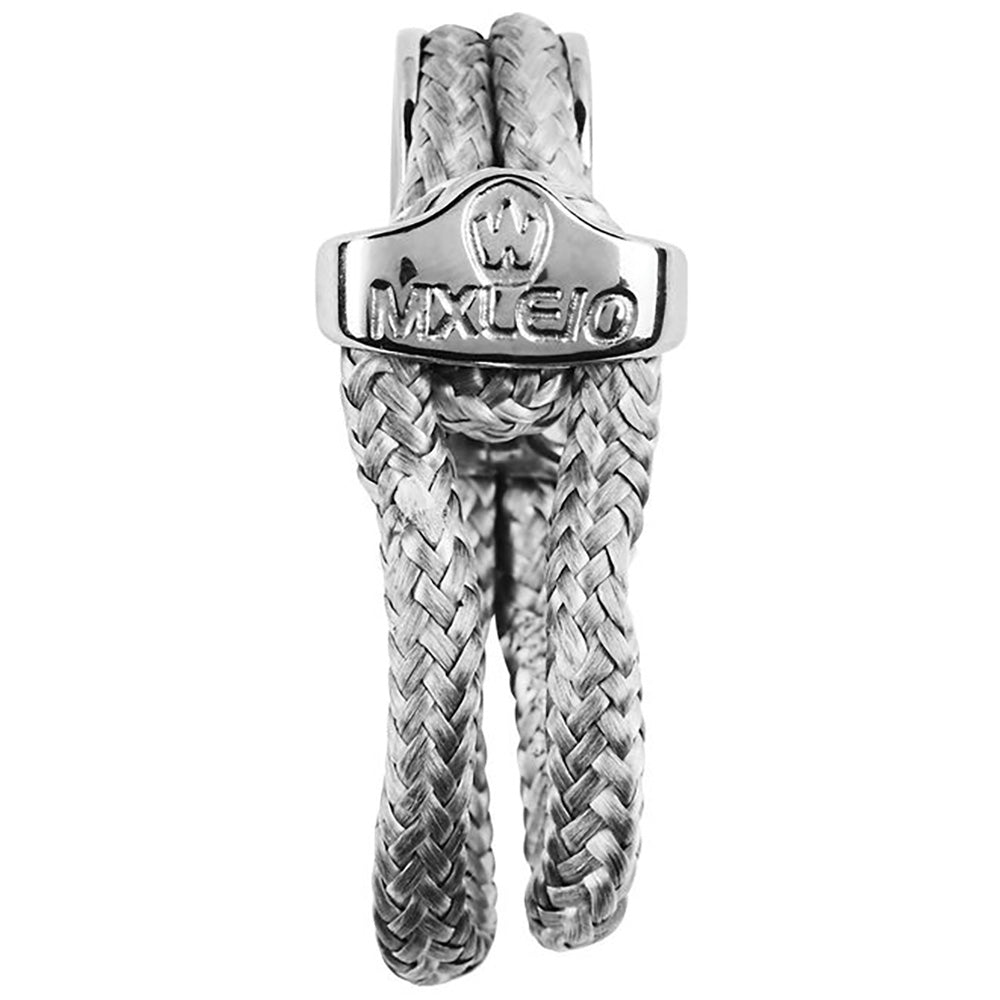

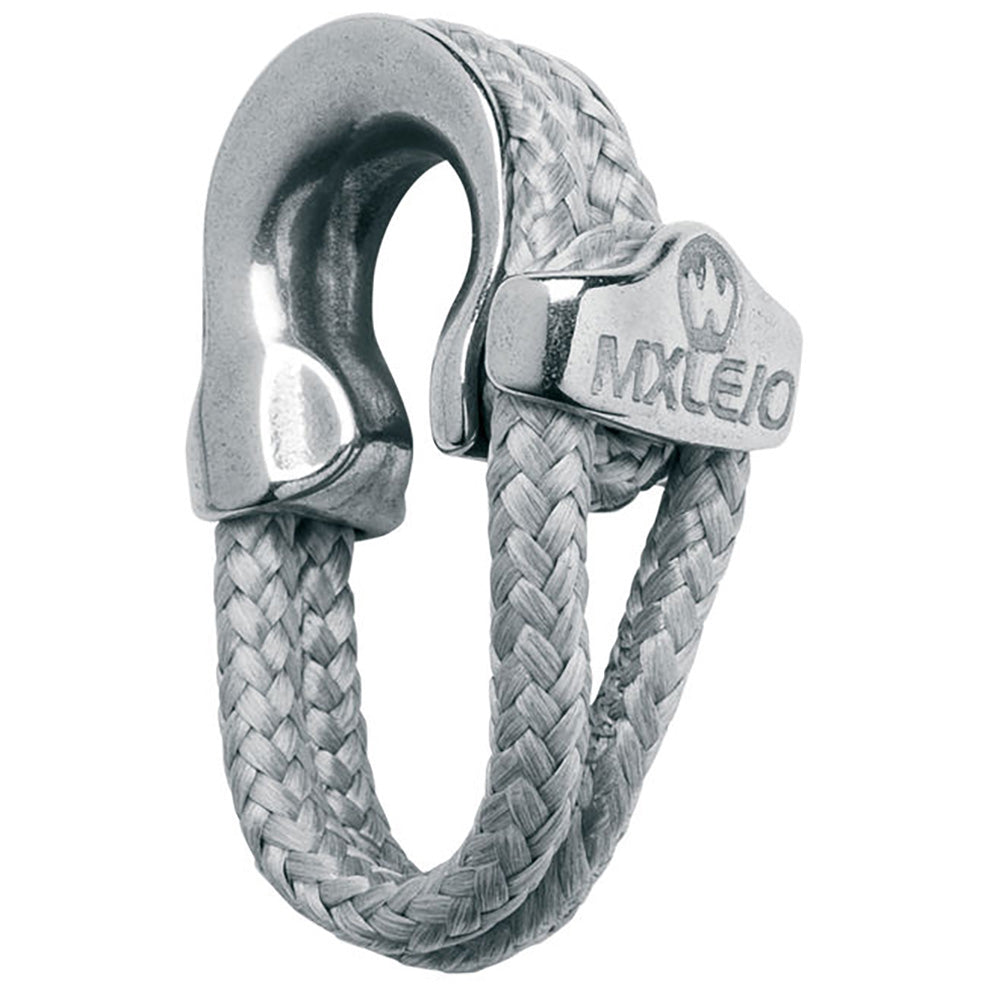

Wichard MXLEvo 10 - Soft Block - 10mm Rope Size - 13/32"

Handle heavy loads at low rope speeds with the Wichard Marine MXLEvo 10 soft block. For recreational and professional sailors, it serves roles such as mast-foot leads, halyard tackle, barber haulers and mainsail outhauls.

Key features

• Supplied Dyneema SK78 loop allows installation without specialist technical knowledge.
• Enclosed rope housing retains lines even when the system is unloaded.
• Two loop positions let you adapt the attachment to your deck layout and anchoring-point alignment.
• No sheave or other moving parts means the block requires no maintenance.
• Compact, lightweight construction suits applications where space and weight matter.

Specifications

• Brand: Wichard Marine
• Model: MXLEvo 10
• Product type: Soft block
• Materials: Duplex stainless steel; Dyneema SK78 loop
• Rope size: 10 mm / 13/32 inch
• Length: 30 mm / 1 3/16 inches
• Width: 40 mm / 1 37/64 inches
• Thickness: 26 mm / 1 1/32 inches
• Loop diameter: 4 mm / 5/32 inch
• Loop length: 170 mm / 6 11/16 inches
• Nautical working load: 800 kg / 1760 lb
• Breaking load: 2000 kg / 4400 lb
• Weight: 40 g / 0.088 lb
• Quantity: 1

Good to know

The Dyneema SK78 loop is included. For use as a snatch block, an 8 mm rope is recommended. The stated working load applies to nautical use; the source specifies industrial working load limit as breaking load divided by five.
