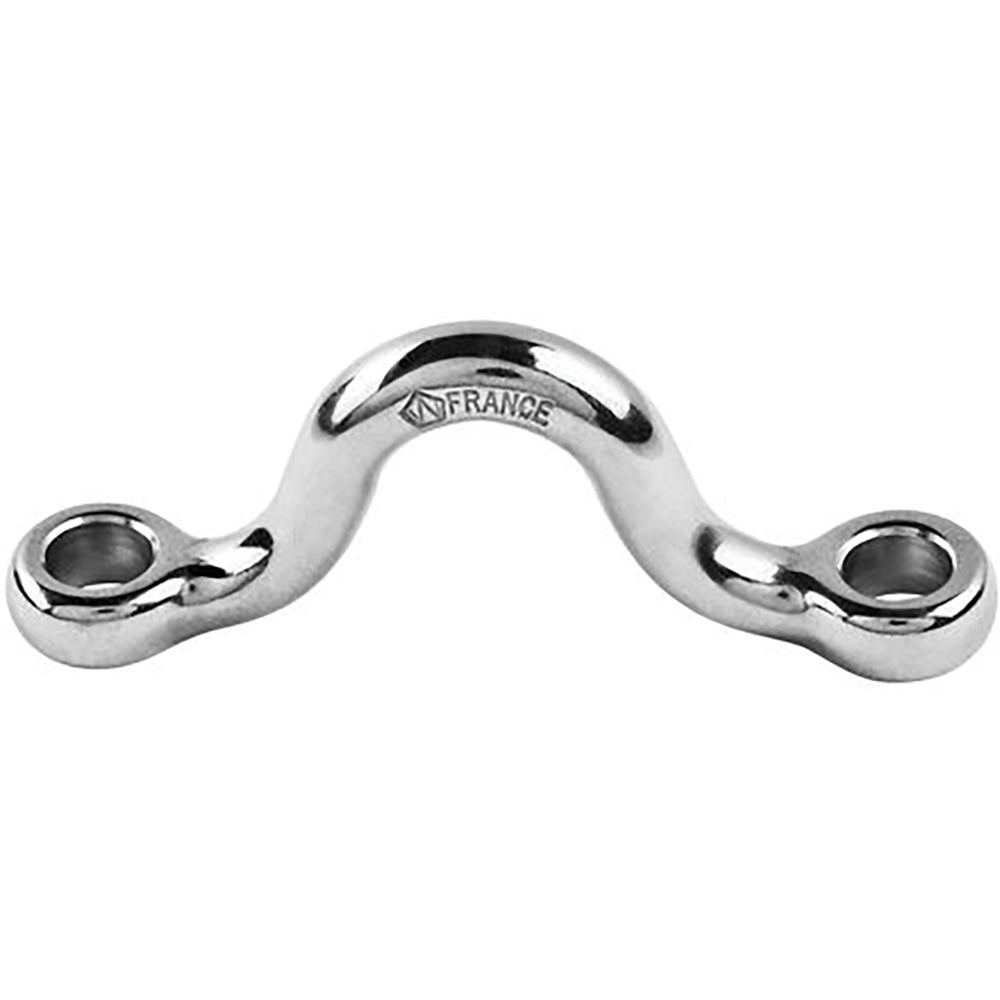

Wichard Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 3960 / (kg) 1800
• Weight: (lb) 0.02 / (g) 9

Dimensions:

• A: (inch) 25/64" / (mm) 10
• B: (inch) 35/64" / (mm) 14
• D diameter: (inch) 13/64" / (mm) 5
• E: (inch) 1 15/32" / (mm) 37.5

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
