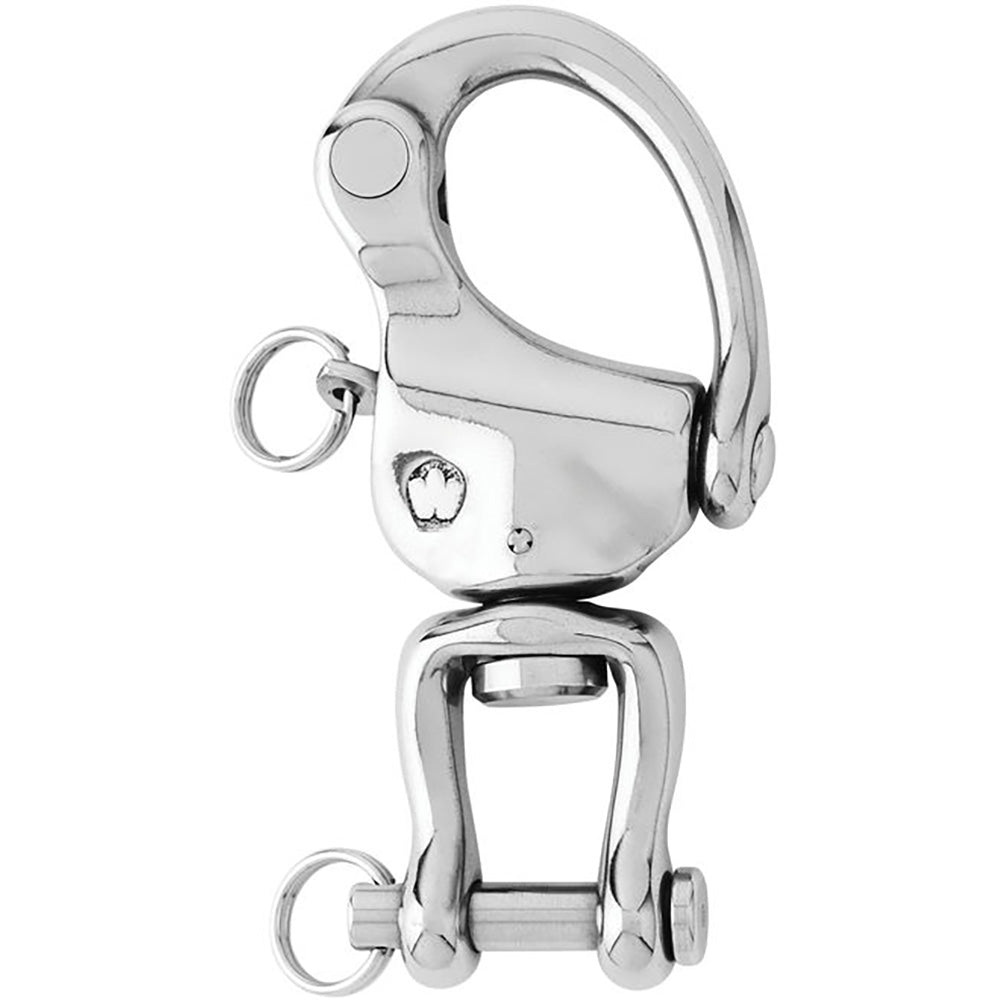

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

OM-WICHARDMARIN-HRSNAPSHACKLE-2478W

$253.35
$298.06 $253.35
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

For sailing connections that need a rotating snap shackle, the Wichard HR model combines a clevis pin swivel with a forged stainless steel body. Its 120 mm length and pull-to-open plunger give boat owners a connection that rotates freely and opens by pulling the pin.

Key features

  • The swivel allows the shackle to turn freely at the connection.
  • A captive plunger stays with the hook, so it cannot become detached.
  • Pulling the plunger opens the shackle, with provision to attach a lanyard.
  • A stated nautical working load of 2,400 kg helps you assess suitability for your application.

Specifications

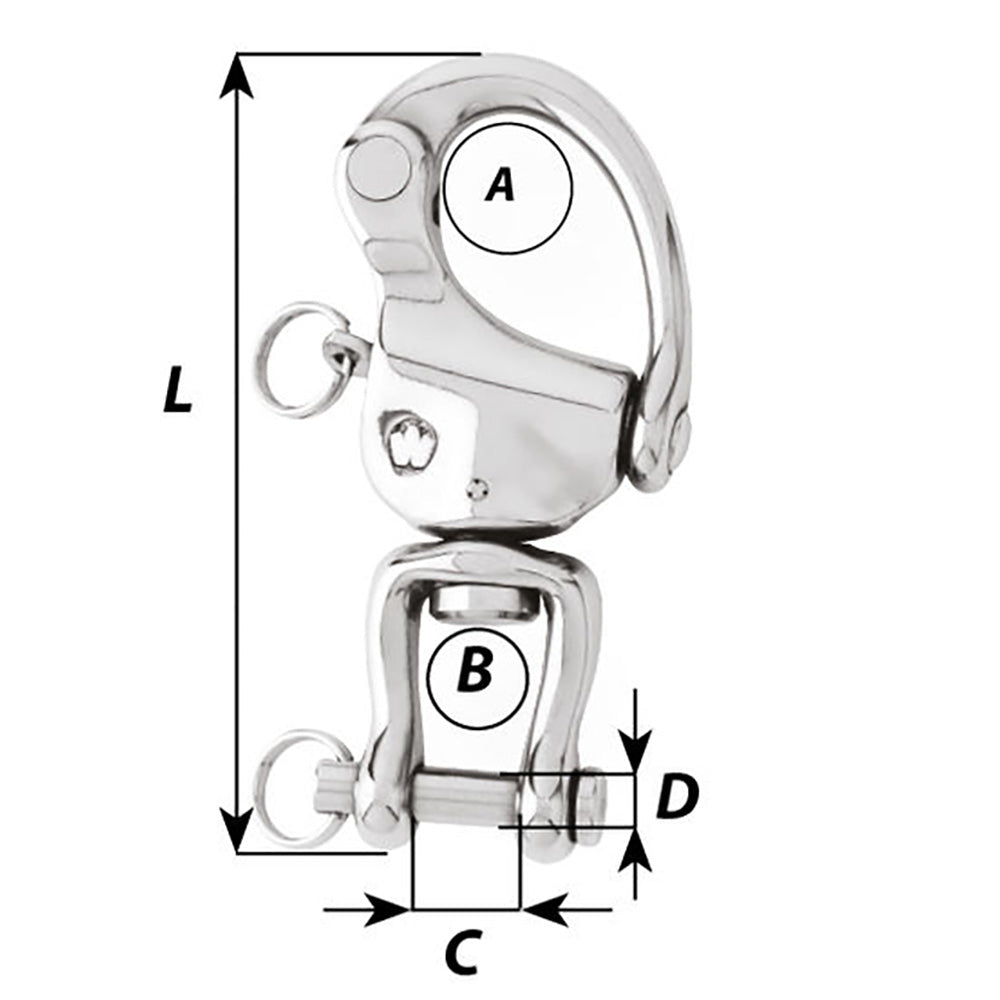

  • Construction: Forged HR 17.4 PH stainless steel with clevis pin swivel
  • Length: 120 mm / 4 23/32 inches
  • Working load: 2,400 kg / 5,290 lb
  • Breaking load: 7,000 kg / 15,430 lb
  • Weight: 417 g / 0.919 lb
  • Dimension A: 26 mm / 1 1/32 inches
  • Dimension B: 27 mm / 1 1/16 inches
  • Dimension C: 18 mm / 45/64 inch
  • Diameter D: 11 mm / 7/16 inch

Good to know

Sold individually. HR means High Resistance. The working load shown is for nautical applications; the source distinguishes this from the industrial working load limit, calculated as breaking load divided by five.

Specifications

BrandWichard Marine
Manufacturer part #2478W
UPC768536024784
Boxed dimensions6 x 3 x 1 in
Shipping weight0.95 lb
