• Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"
  • 97667
1 2

Wichard Marine

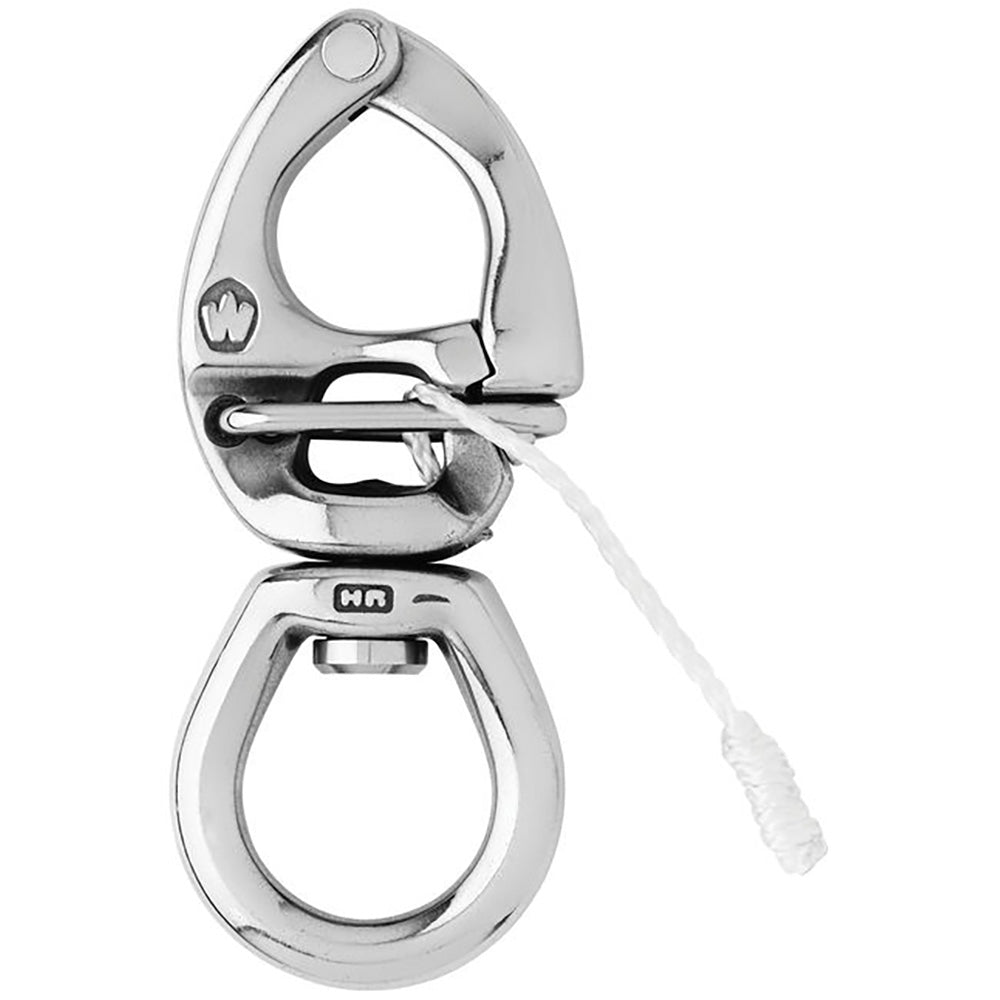

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"

OM-WICHARDMARIN-HRQUICKRELEASE-2778W

$718.58
$845.39 $718.58
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Authorized Wichard Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11460 / (kg) 5200
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb)1.362 / (g) 618

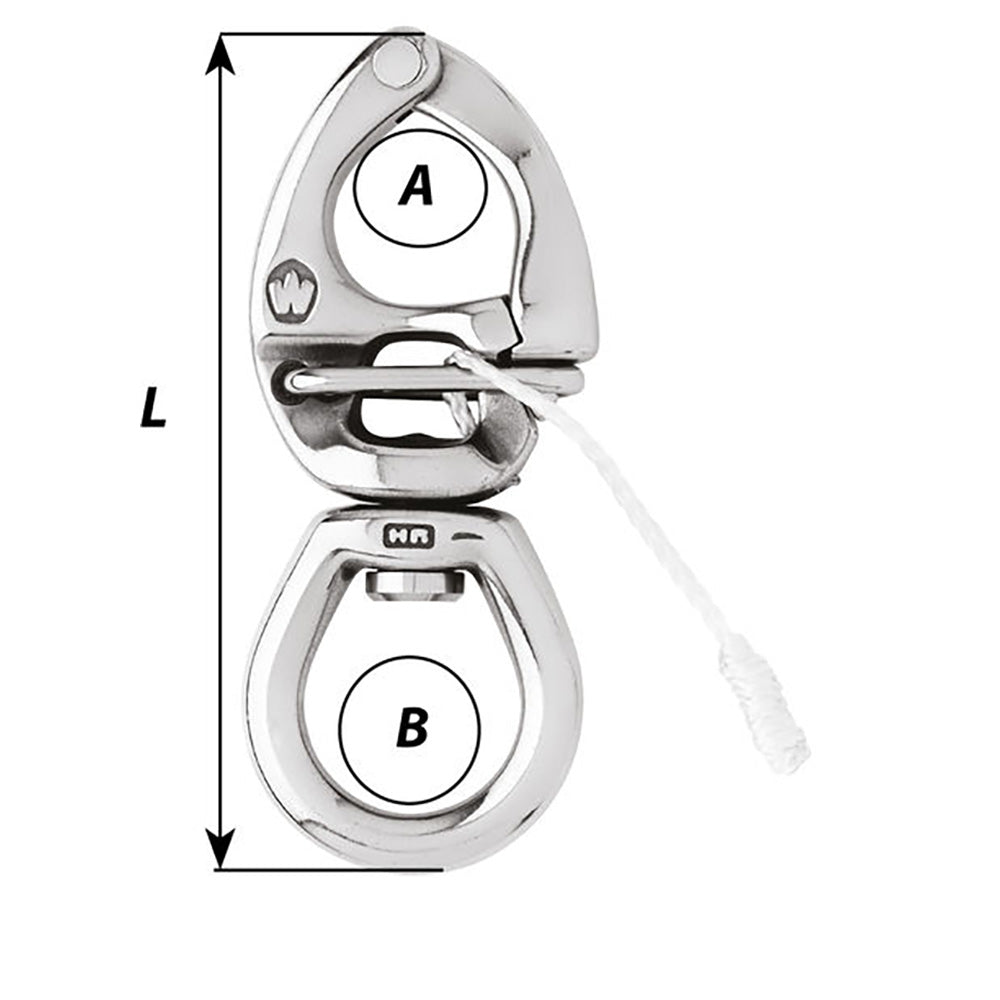

Dimensions:

  • A: (inch) 1 11/32" / (mm) 34
  • B: (inch) 1 39/64" / (mm) 41
  • Length: (inch) 6 19/64" / (mm) 160

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Specifications

BrandWichard Marine
Manufacturer part #2778W
Boxed dimensions7 x 3 x 0 in
Shipping weight1.35 lb
