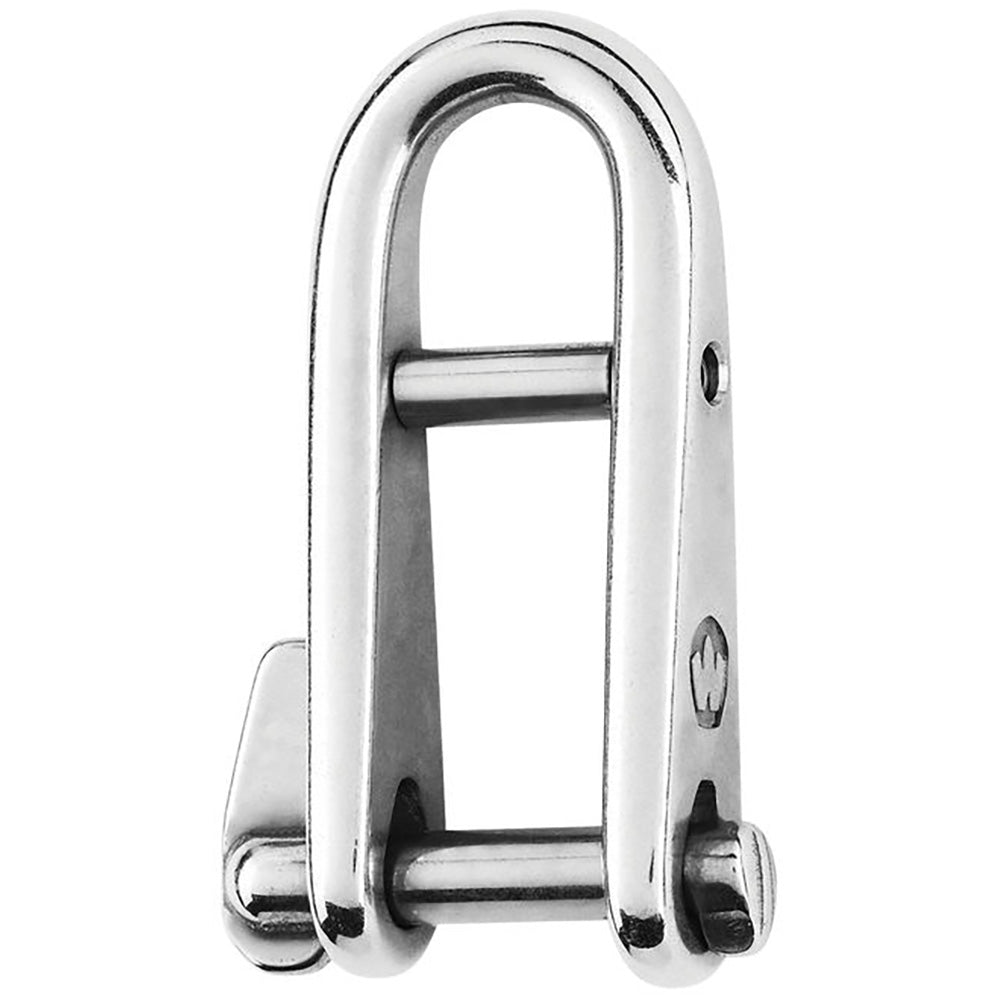

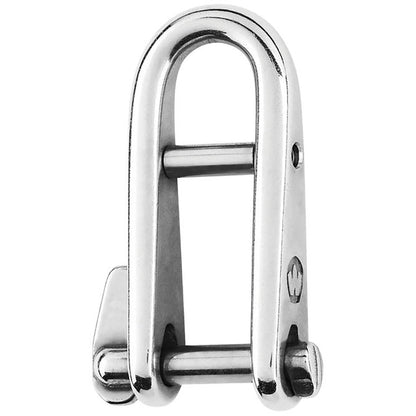

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter
Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter
SKU:OM-WICHARDMARIN-HRKEYPIN-91434W
Low stock: 1 left
Couldn't load pickup availability
Overview
Frequent halyard connection changes call for a shackle suited to repeated opening and closing. The Wichard Marine HR key pin shackle with bar combines an 8mm pin with forged HR stainless steel for high-load sailing applications.
Key features
- The key pin configuration accommodates applications where opening and closing are routine.
- Forged HR 17.4 PH stainless steel supports demanding load requirements.
- A specified nautical working load of 960kg helps you match the shackle to the intended application.
Specifications
- Brand: Wichard Marine
- Type: Forged D-shackle, key pin with bar
- Material: HR 17.4 PH stainless steel
- Pin diameter: 8mm
- Working load (WL), nautical: 2110 lb / 960kg
- Breaking load: 7710 lb / 3500kg
- Weight: 0.271 lb / 123g

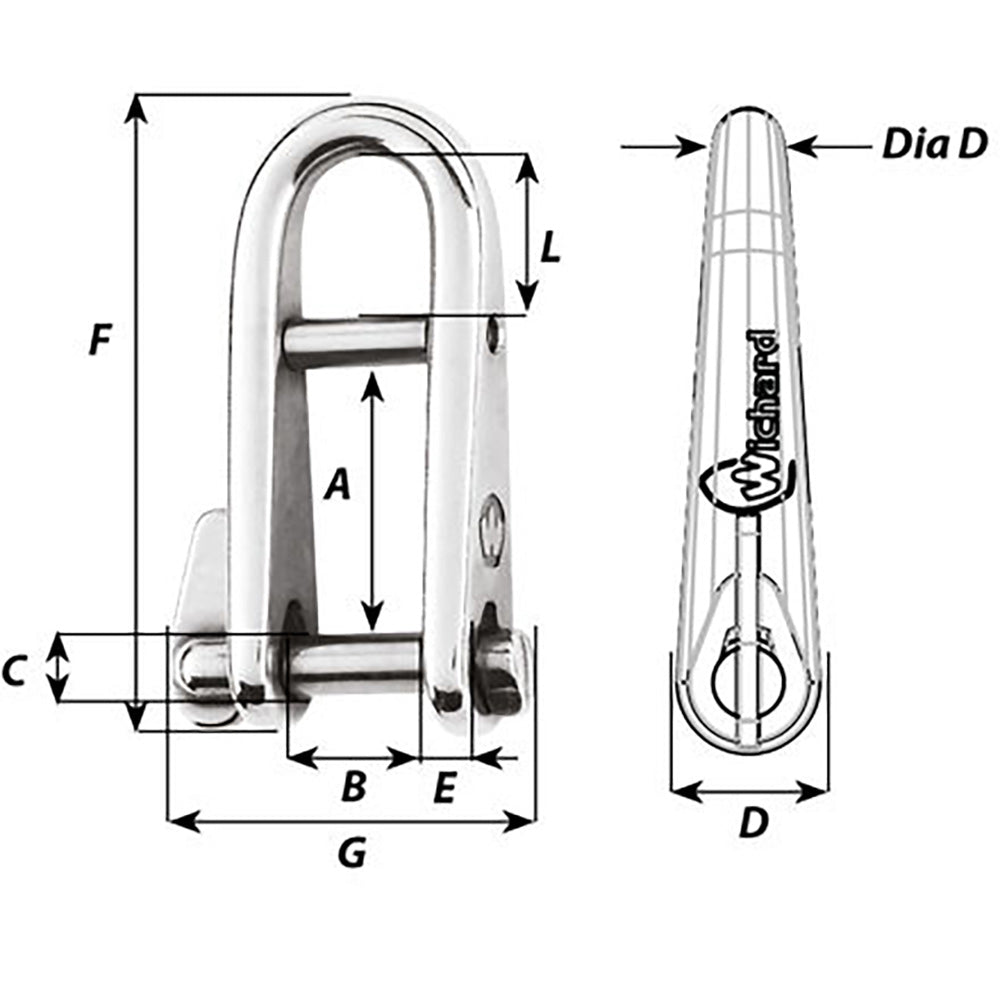

- Dimension A: 59mm
- Dimension B: 21mm
- Dimension C: 8mm
- Dimension D: 17mm
- Dimension E: 6mm
- Dimension F: 79mm
- Dimension G: 48mm
- Dimension L: 20mm
- Marking: CE
- Quantity: One shackle
Good to know
This shackle is not for mooring. Nautical applications use the stated working load (WL). For industrial applications only, working load limit (WLL) is calculated by dividing the breaking load by five.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 91434W |
| Boxed dimensions | 3 x 2 x 0 in |
| Shipping weight | 0.25 lb |
