Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter
Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter
SKU:OM-WICHARDMARIN-HRKEYPIN-91433W
Low stock: 1 left
Couldn't load pickup availability
Overview

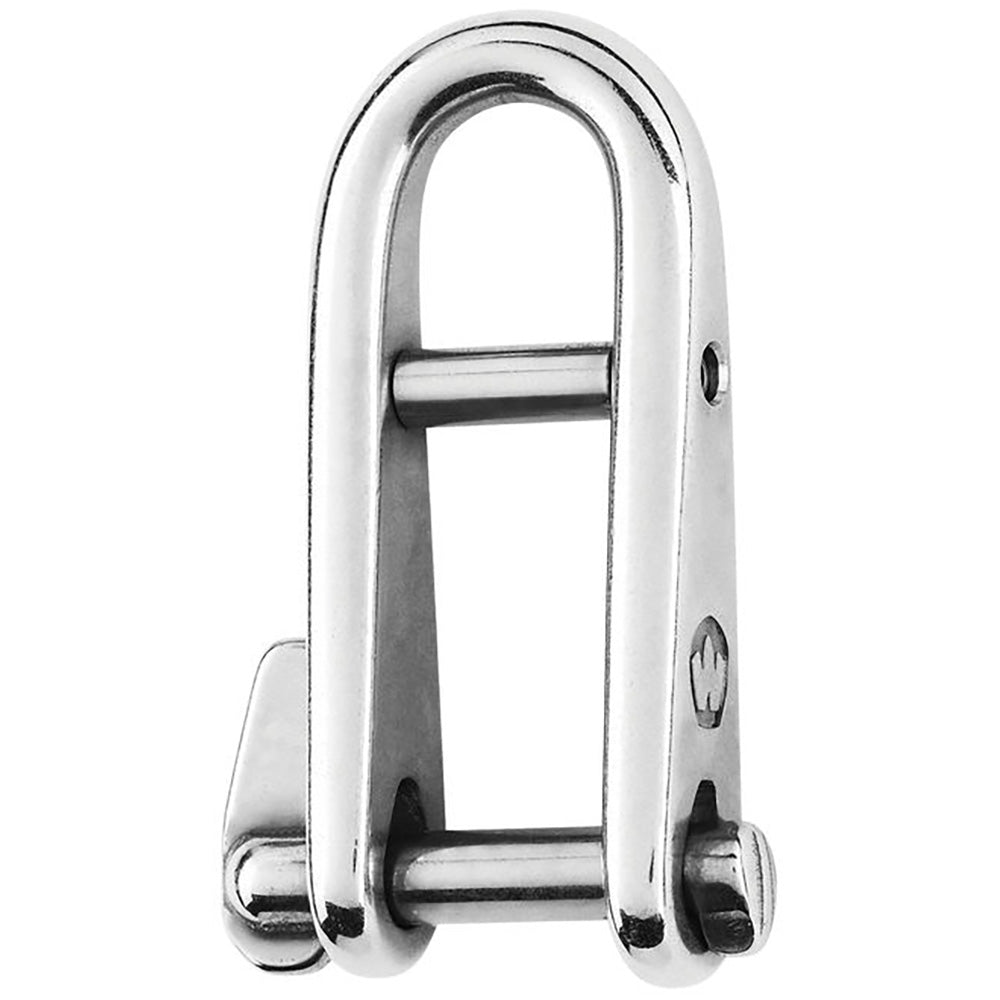

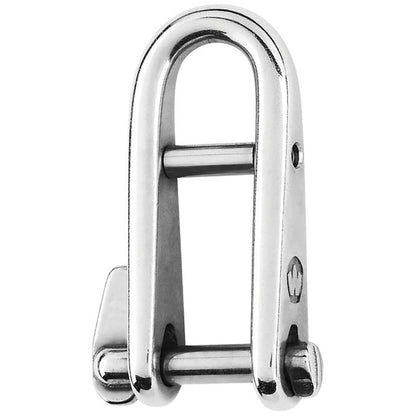

For halyards and other high-load sailing connections, the Wichard Marine HR key pin shackle with bar provides a forged D-shackle with a 6mm pin. It suits applications where you need to open and close the shackle frequently.
Key features
- HR 17.4 PH stainless steel construction serves applications that demand high load capacity.
- The key pin format suits connections that require repeated opening and closing.
- A stated nautical working load of 600kg lets you assess suitability for your sailing application.
Specifications
- Brand: Wichard Marine
- Type: Forged D-shackle, key pin with bar
- Material: HR 17.4 PH stainless steel
- Pin diameter: 6mm
- Working load (WL), nautical: 1320 lb / 600kg
- Breaking load: 4850 lb / 2200kg
- Weight: 0.117 lb / 53g

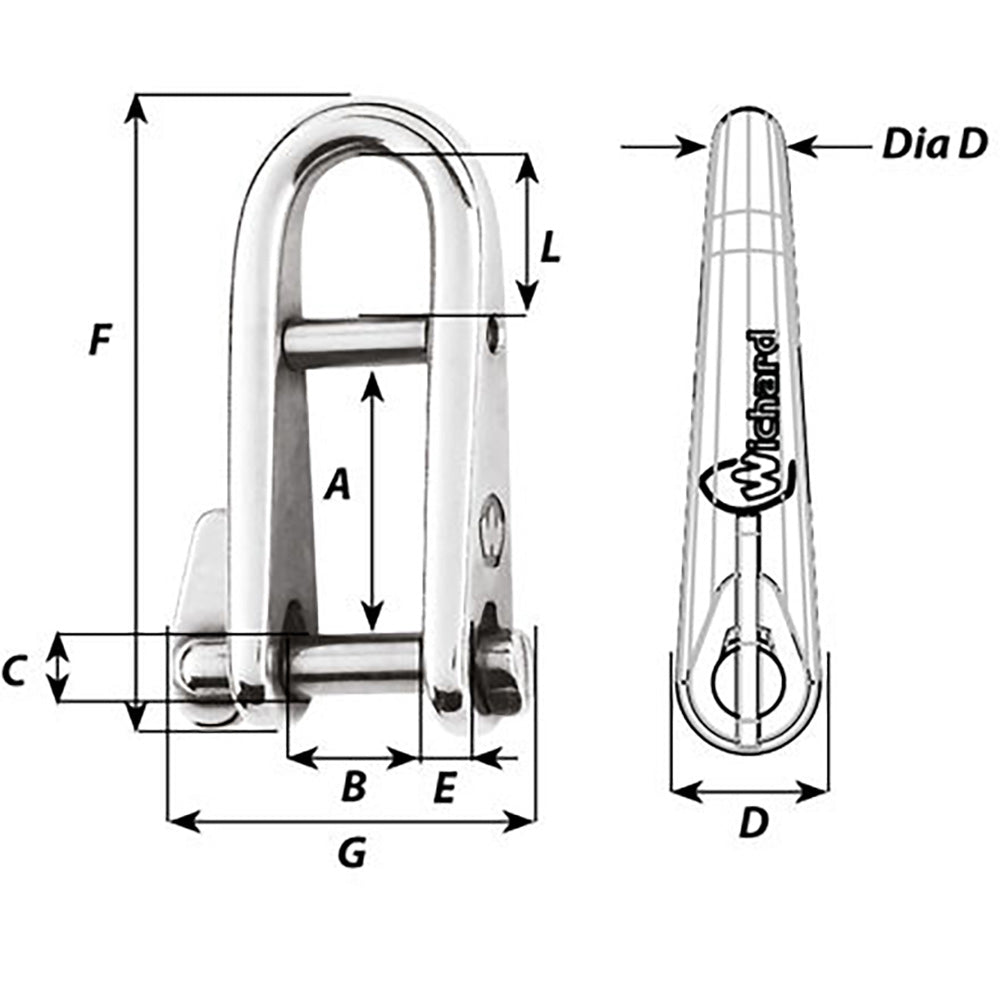

- Dimension A: 45mm
- Dimension B: 16mm
- Dimension C: 6mm
- Dimension D: 13mm
- Dimension E: 4mm
- Dimension F: 60mm
- Dimension G: 37mm
- Dimension L: 15mm
- Marking: CE
- Quantity: One shackle
Good to know
Do not use this shackle for mooring. The listed working load applies to nautical use; working load limit (WLL) applies only to industrial use and is defined as breaking load divided by five.
Specifications
| Brand | Wichard Marine |
|---|---|
| Manufacturer part # | 91433W |
| UPC | 768536028539 |
| Boxed dimensions | 6 x 2 x 1 in |
| Shipping weight | 0.1 lb |
