• Wichard HR D Shackle - 14mm Diameter - 35/64"
  • 97706
1 2

Wichard Marine

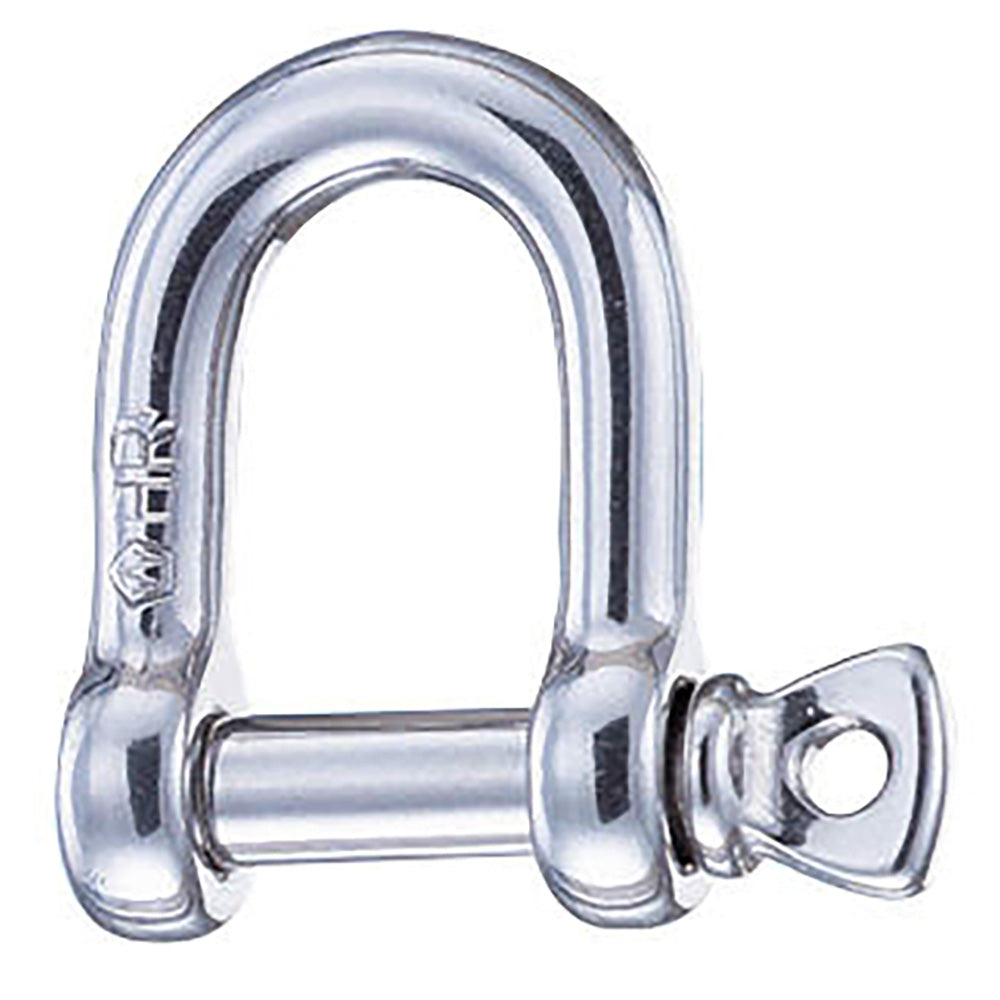

Wichard HR D Shackle - 14mm Diameter - 35/64"

Wichard HR D Shackle - 14mm Diameter - 35/64"

OM-WICHARDMARIN-HRDSHACKLE-11207W

$323.20
$380.23 $323.20
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

When a boat attachment calls for high loads, the Wichard Marine HR D shackle offers a forged connection in HR stainless steel. Use it for attachment tasks such as connecting blocks, with separate load ratings provided for nautical and industrial applications.

Key features

  • Forged HR stainless steel construction supports high-load attachment tasks.
  • The D-shackle form serves general attachment needs, including blocks.
  • Separate nautical working load and industrial WLL figures help you identify the rating relevant to your application.

Specifications

  • Material: HR 17.4 PH stainless steel
  • Construction: Forged
  • Marking: CE
  • Nautical working load: 11,280 lb / 5,120 kg
  • Industrial working load limit (WLL): 5,290 lb / 2,400 kg
  • Breaking load: 26,450 lb / 12,000 kg
  • Weight: 0.67 lb / 304 g

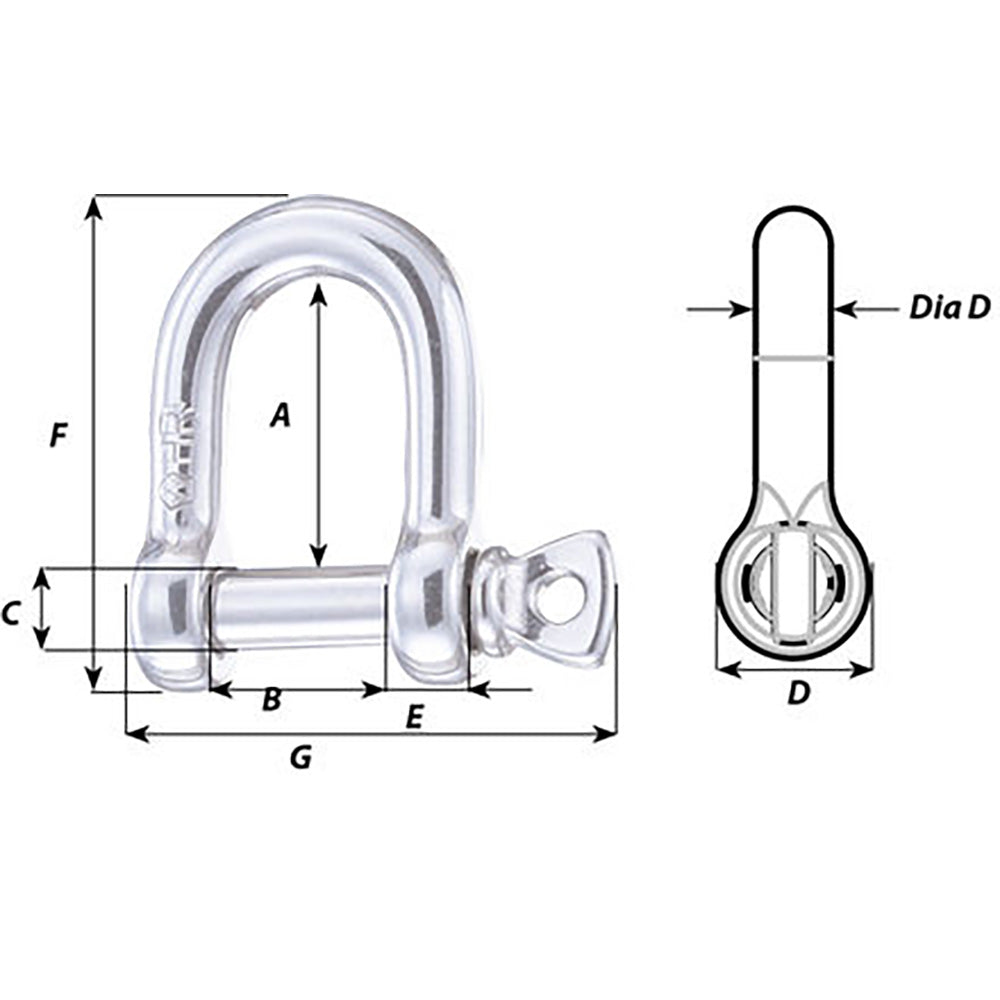

  • Dimension A: 1 59/64 inches / 49 mm
  • Dimension B: 1 7/64 inches / 28 mm
  • Diameter D: 35/64 inch / 14 mm

Good to know

Sold individually. This shackle must not be used for mooring. WLL applies only to industrial applications, including lifting; the nautical working load is listed separately.

Specifications

BrandWichard Marine
Manufacturer part #11207W
UPC3587790112078
Boxed dimensions6 x 3 x 1 in
Shipping weight0.7 lb
