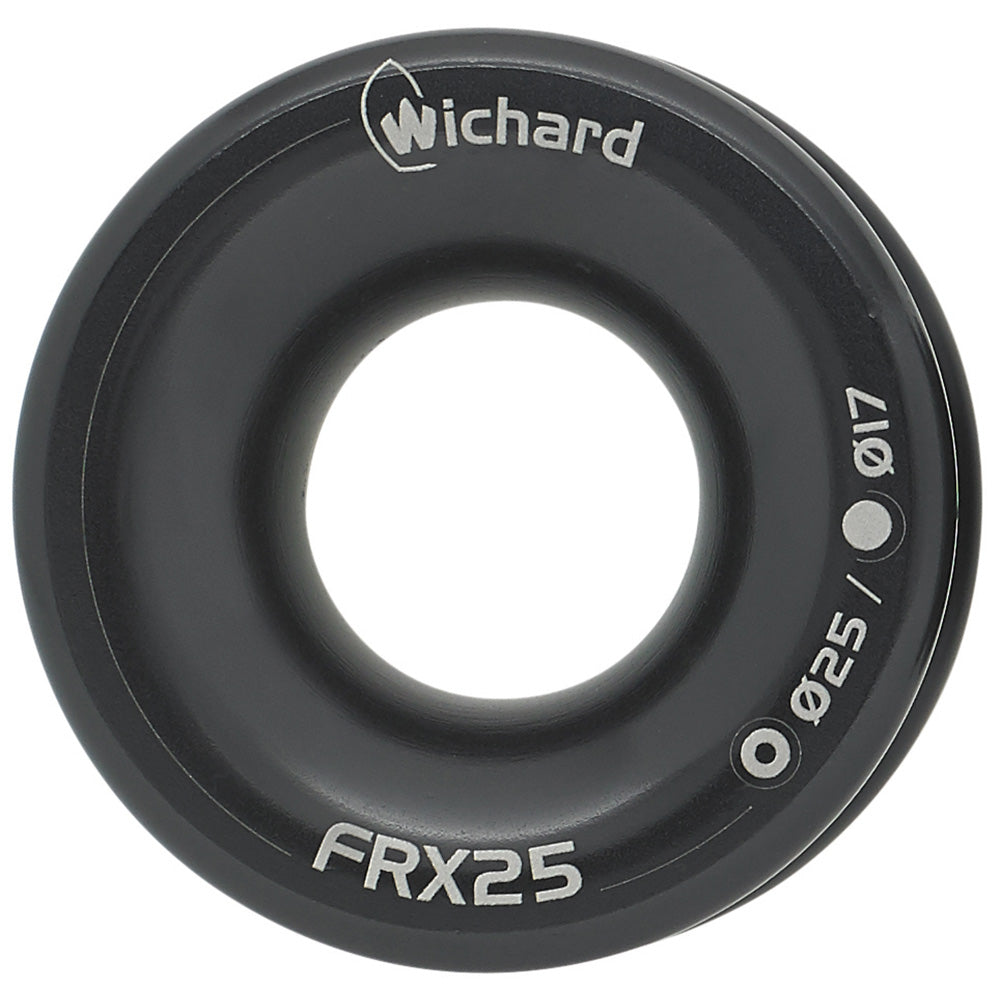

Wichard FRX25 Friction Ring - 25mm (63/64")

The Wichard Marine FRX25 friction ring guides sailing lines through a lightweight aluminium fitting. It suits heavy loads and semi-static lines, with applications ranging from barber-haulers and inhaulers to lazy jacks and running backstays.

Key features

• Smooth line travel helps keep rope wear to a minimum.
• A 50-micron hard-anodized finish helps extend the ring's service life.
• Lightweight construction keeps the fitting's weight down within a rigging setup.
• Suitability for heavy loads and semi-static lines gives sailors options across several rigging applications.

Specifications

• Brand: Wichard Marine
• Model: FRX25
• Nominal size: 25 mm (63/64 inch)
• Material: Anodized aluminium
• Hard-anodized coating thickness: 50 microns
• Nautical working load: 5,000 kg (11,020 lb)
• Weight: 57 g (0.126 lb)

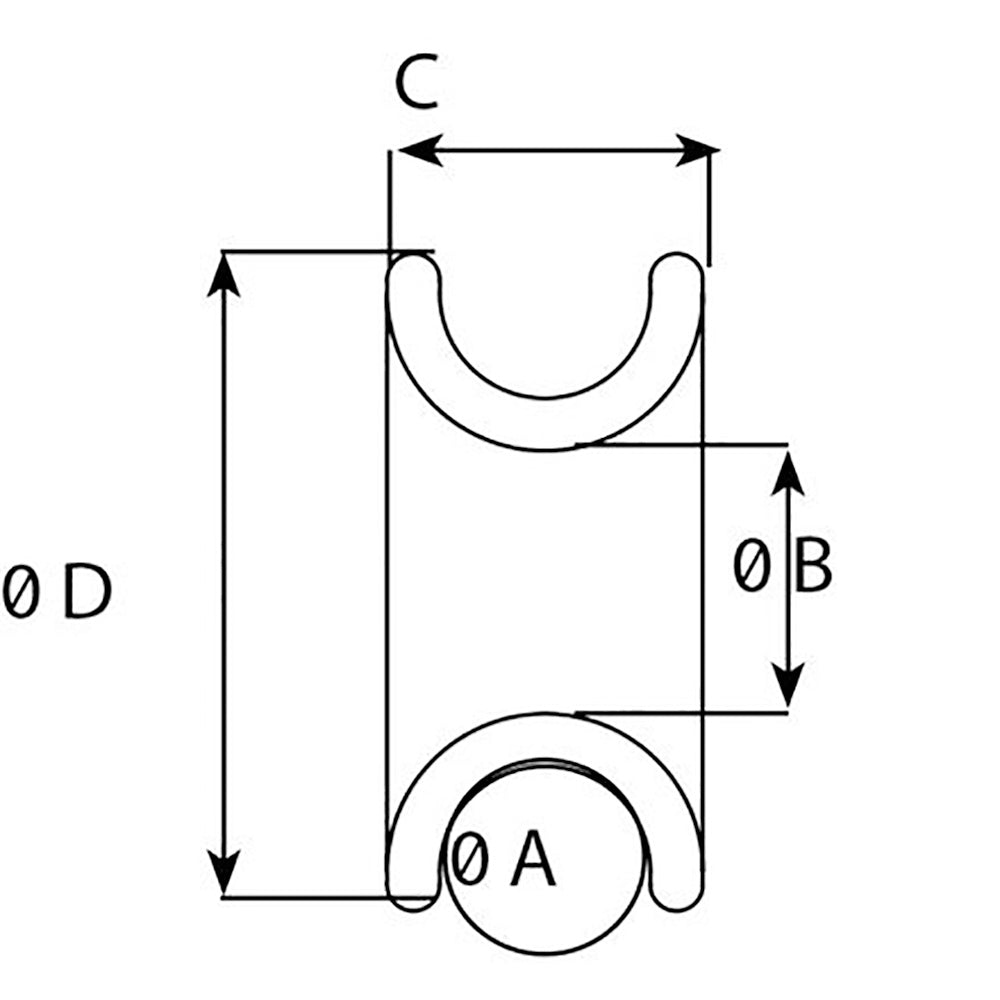

• Dimension A: 17 mm (43/64 inch)
• Dimension B: 25 mm (63/64 inch)
• Dimension C: 25 mm (63/64 inch)
• Diameter D: 60 mm (2 23/64 inches)

Good to know

Listed applications include mast-foot blocks, barber-haulers, inhaulers, loops, thimbles, lazy jacks, running backstays and tackle. The stated working load applies to nautical use; the manufacturer's industrial working load limit is defined separately as breaking load divided by five.
