• Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16"
  • 93122
1 2

Wichard Marine

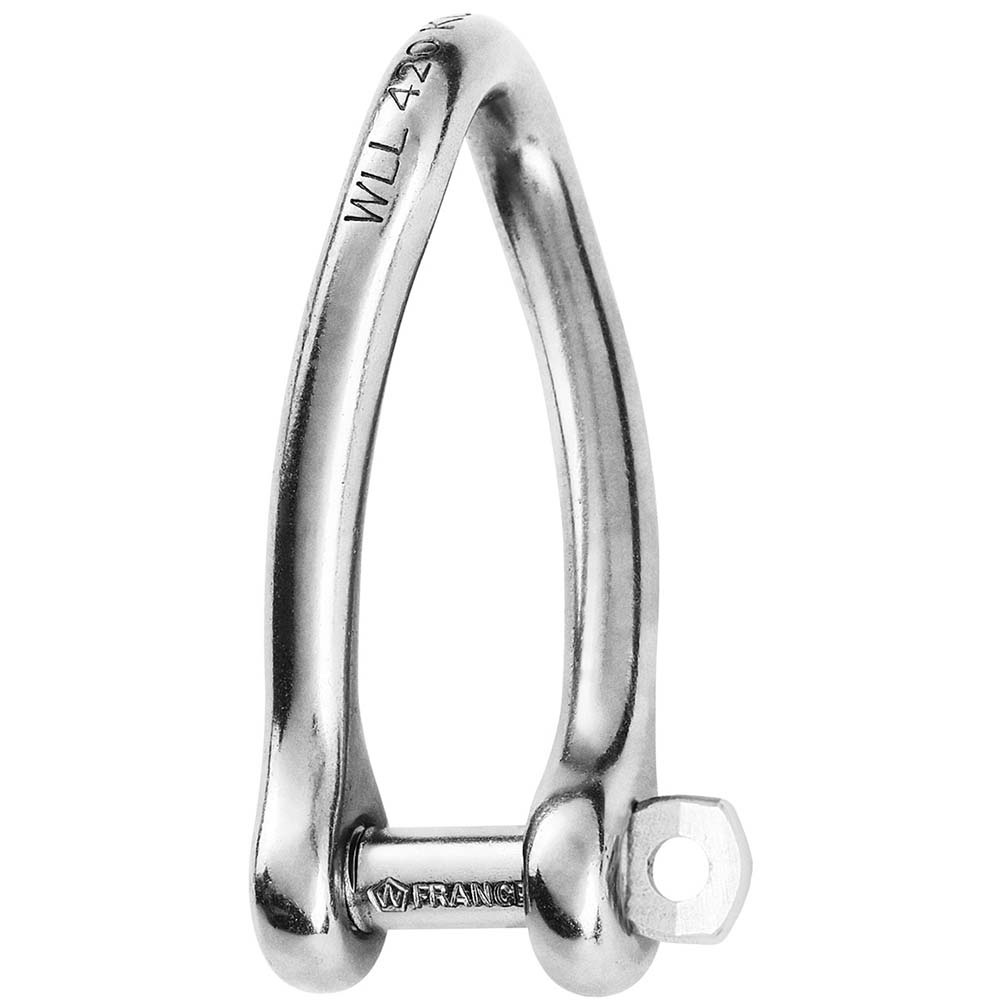

Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

OM-WICHARDMARIN-CAPTIVEPINTWIS-1424W

$70.84
$83.34 $70.84
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

When a sailing connection needs a 90° change in orientation, the Wichard Marine Captive Pin Twisted Shackle provides that turn. Its attached pin makes it useful for connecting unarticulated fittings, such as a block on a rail, or for use in purchase systems.

Key features

  • Twisted geometry accommodates connections that require a 90° orientation.
  • The pin stays attached when opened, keeping it from becoming a loose piece during handling.
  • An indentation holds the pin in its locked position to resist loosening from vibration.
  • Single-handed operation lets you open and close the shackle with one hand.

Specifications

  • Brand: Wichard Marine
  • Part number: 1424
  • Construction: Forged grade 316L stainless steel
  • Diameter: 8 mm / 5/16 inch
  • Working load: 2200 lb
  • Breaking load: 8150 lb
  • Weight: 0.198 lb

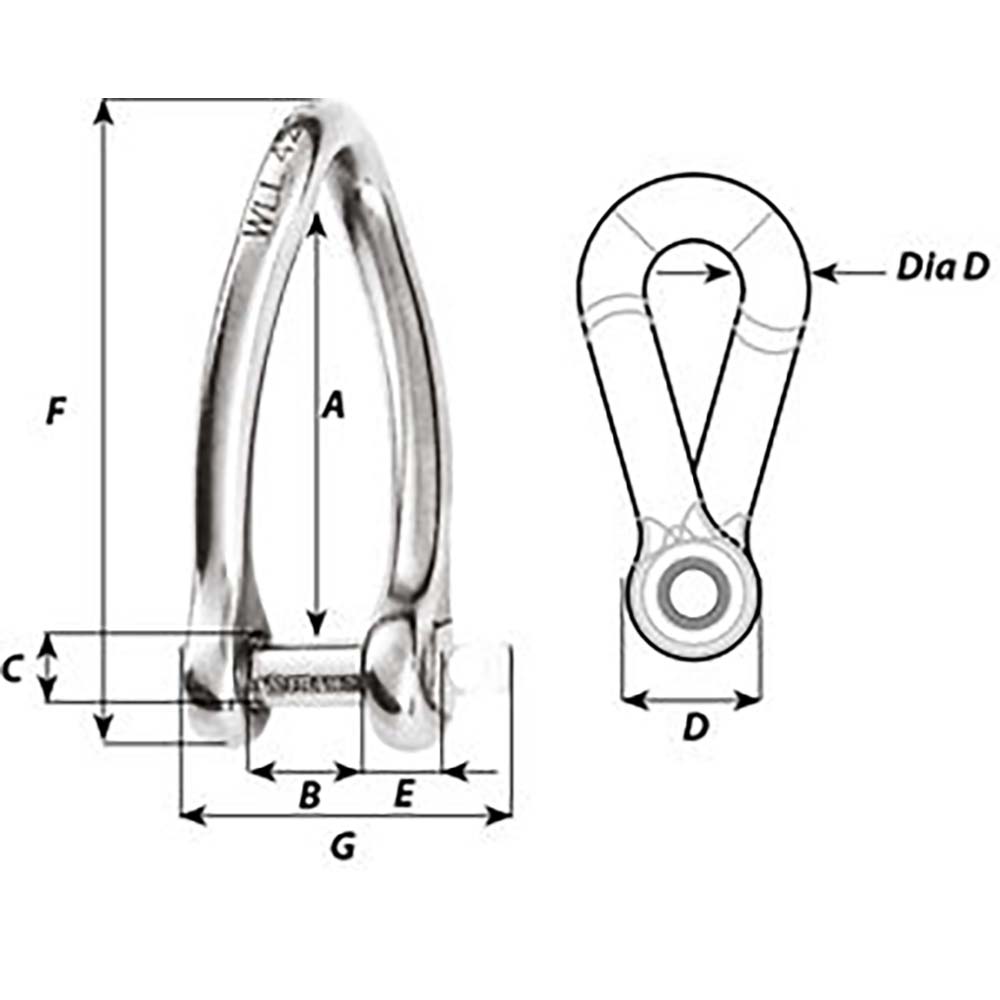

  • Dimension A: 2-21/64 inches
  • Dimension B: 5/8 inch
  • Dimension C: 23/64 inch
  • Dimension D: 45/64 inch
  • Dimension D diameter: 5/16 inch
  • Dimension E: 5/16 inch
  • Dimension F: 3-5/32 inches
  • Dimension G: 1-21/32 inches

Good to know

Part 1424 must not be used for lifting applications.

Specifications

BrandWichard Marine
Manufacturer part #1424W
UPC768536014242
Boxed dimensions6 x 3 x 2 in
Shipping weight0.2 lb
