• Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"
  • 93110
1 2

Wichard Marine

Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"

Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"

OM-WICHARDMARIN-CAPTIVEPIND-1402W

$31.29
$31.79 $31.29
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

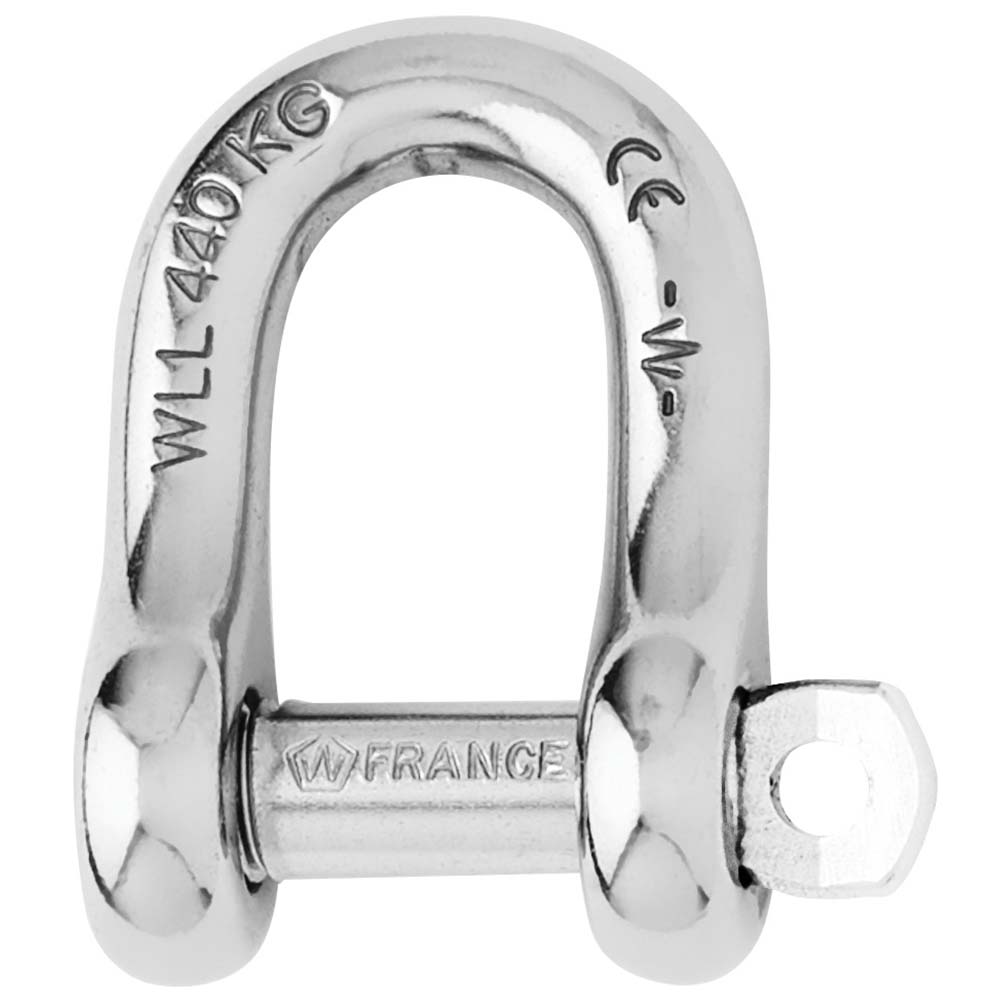

A pin that stays attached makes this Wichard Marine D shackle useful when opening and reconnecting sailing hardware. Suitable for general attachment tasks, including blocks, it has a forged stainless steel body and an indentation-locking pin that resists vibration-related loosening.

Key features

  • The captive pin remains connected to the body when open, preventing it from becoming a separate loose piece.
  • The pin seats in an indentation to resist loosening under vibration.
  • The D-shackle format serves general connections and block attachment applications.

Specifications

  • Brand: Wichard Marine
  • Type: Captive pin D shackle
  • Nominal diameter: 5mm / 3/16 inch
  • Construction: Forged grade 316L stainless steel
  • Working load: 1050 lb
  • WLL: 660 lb
  • Breaking load: 3300 lb
  • Weight: 0.035 lb

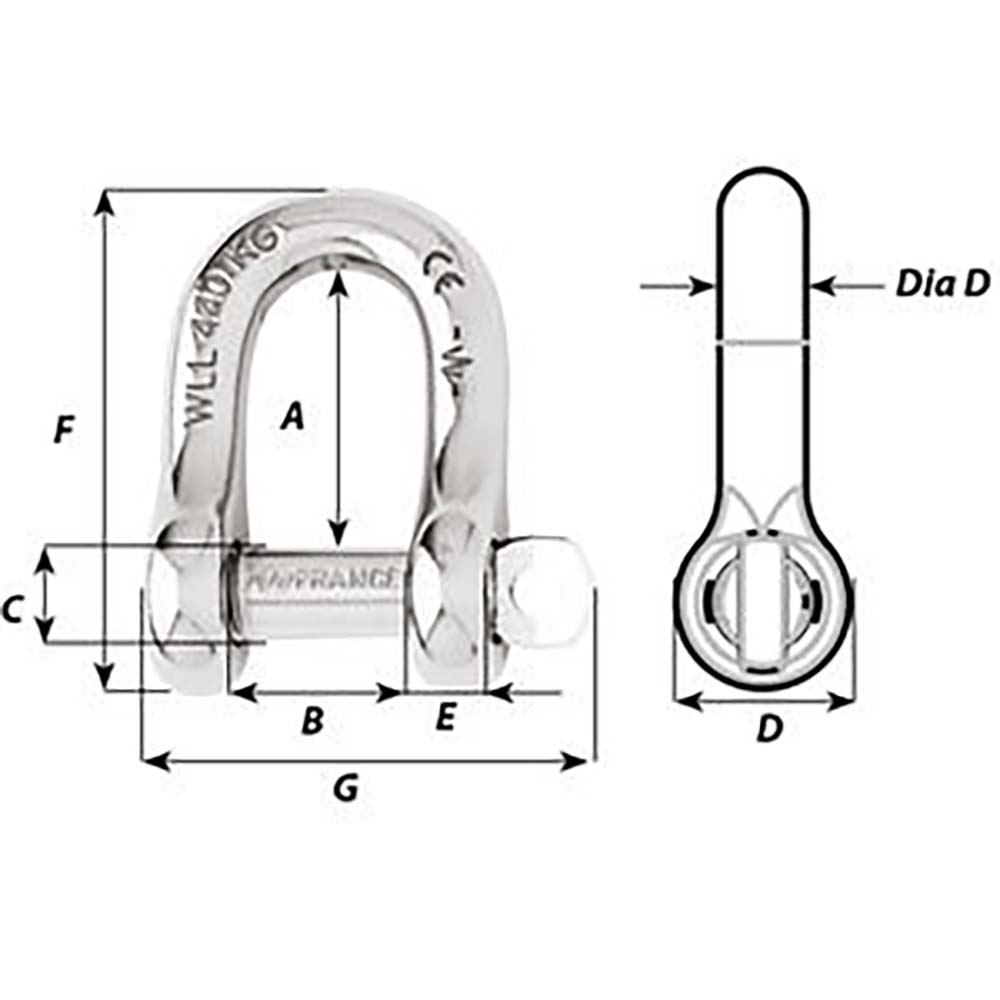

  • Dimension A: 5/8 inch
  • Dimension B: 25/64 inch
  • Dimension C: 15/64 inch
  • Dimension D: 7/16 inch
  • Dimension D diameter: 13/64 inch
  • Dimension E: 13/64 inch
  • Dimension F: 7/16 inch
  • Dimension G: 1-3/16 inches
  • Dimension H: 1-1/16 inches

Specifications

BrandWichard Marine
Manufacturer part #1402W
UPC768536014020
Boxed dimensions6 x 2 x 1 in
Shipping weight0.05 lb
