• Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"
  • 93114
1 2

Wichard Marine

Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"

Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"

OM-WICHARDMARIN-CAPTIVEPIND-1406W

$123.09
$144.81 $123.09
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Keep the pin attached while opening a connection with this Wichard Marine captive pin D shackle. For sailors connecting blocks and other fittings, its retained pin simplifies handling, and an indentation-based lock prevents vibration from loosening it.

Key features

  • The pin stays connected to the body when open, preventing it from becoming a loose part.
  • A pin-locking indentation secures the closure against vibration.
  • Forged stainless steel construction supports general shackle and block attachment applications.

Specifications

  • Brand: Wichard Marine
  • Product type: Captive pin D shackle
  • Construction: Forged grade 316L stainless steel
  • Diameter: 12 mm (15/32 inch)
  • Working load: 4,580 lb
  • WLL: 3,080 lb
  • Breaking load: 15,430 lb
  • Weight: 0.414 lb

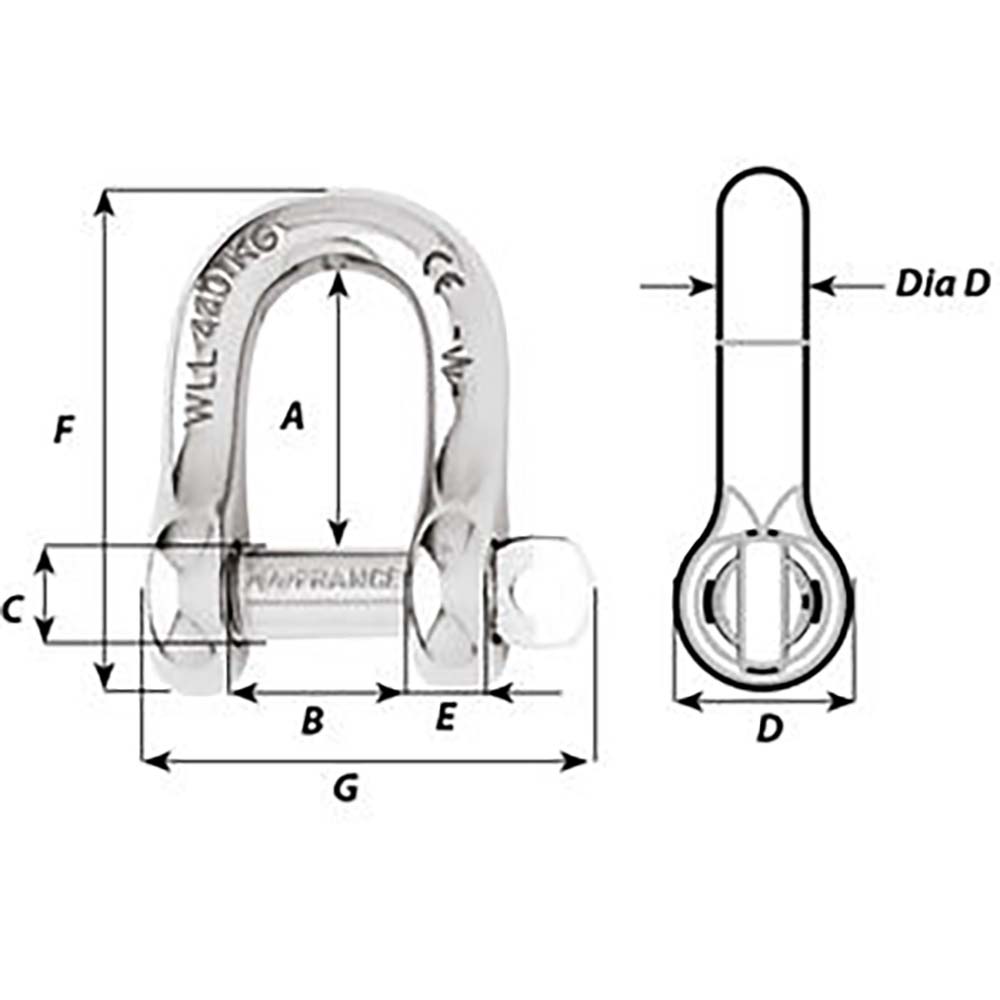

  • Dimension A: 1-17/32 inches
  • Dimension B: 15/16 inch
  • Dimension C: 33/64 inch
  • Dimension D: 15/16 inch
  • D diameter: 15/32 inch
  • Dimension E: 7/16 inch
  • Dimension F: 2-23/32 inches
  • Dimension G: 2-7/16 inches

Specifications

BrandWichard Marine
Manufacturer part #1406W
UPC768536014068
Boxed dimensions6 x 3 x 1 in
Shipping weight0.4 lb
