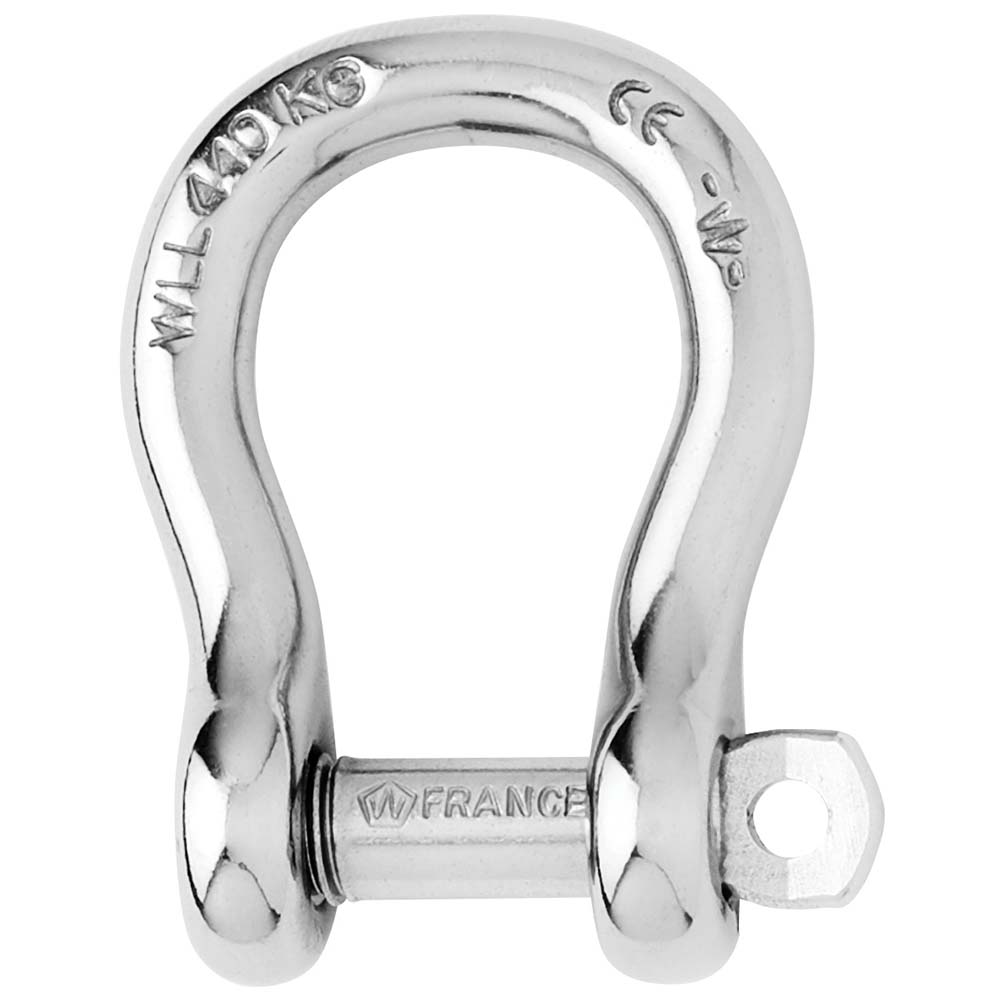

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4"

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4"

OM-WICHARDMARIN-CAPTIVEPINBOW-1443W

$39.43
$44.98 $39.43
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

When several lines or cables need to share a connection, the Wichard captive pin bow shackle provides room to attach them. Its retained pin stays with the body when opened, making it useful for sailors handling connections with one hand.

Key features

  • The captive pin remains attached during opening, so there is no loose pin to keep track of.
  • An indentation locks the pin in place to prevent vibration from loosening it.
  • The bow shape accommodates multiple lines or cables where extra space is needed.
  • One-handed operation lets you open and close the shackle with a single hand.
  • CE marking and a batch number provide identification on the shackle.

Specifications

  • Nominal diameter: 6 mm / 1/4 inch
  • Construction: Forged grade 316L stainless steel
  • Working load: 1320 lb
  • WLL: 970 lb
  • Breaking load: 4850 lb
  • Weight: 0.073 lb

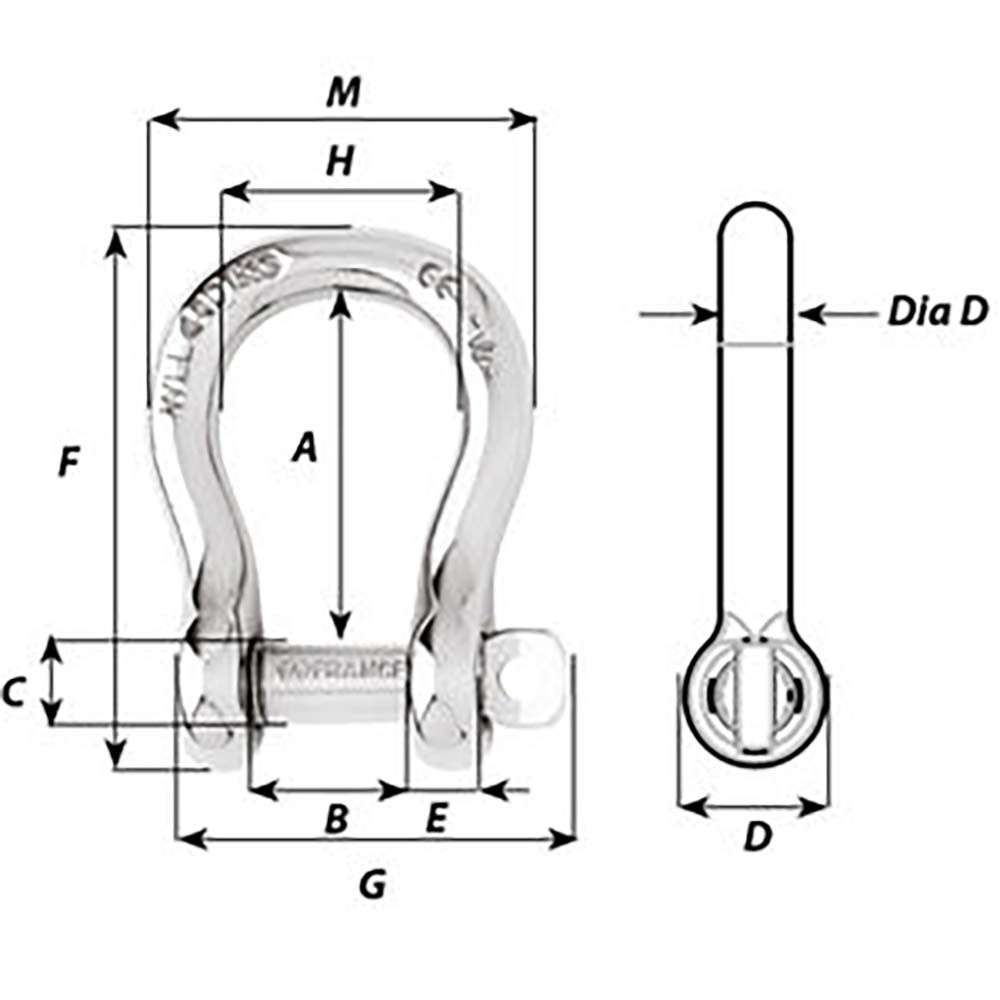

  • Dimension A: 1-1/16 inches
  • Dimension B: 15/32 inch
  • Dimension C: 9/32 inch
  • Dimension D: 35/64 inch
  • D diameter: 15/64 inch
  • Dimension E: 15/64 inch
  • Dimension M: 1-7/32 inches

Good to know

The WLL figure applies only to industrial applications, such as lifting.

Specifications

BrandWichard Marine
Manufacturer part #1443W
UPC3587790014433
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
