• Veratron EngineBox - Double Engine
1 1

Veratron

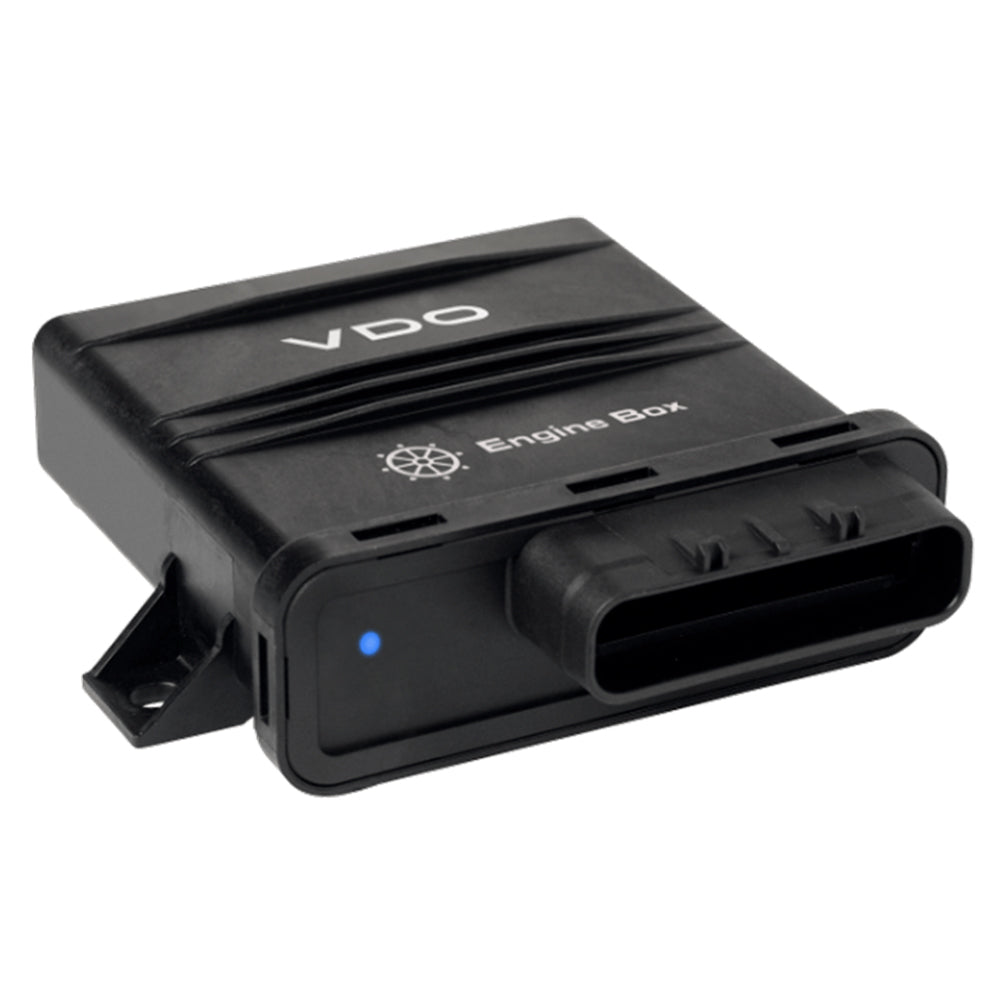

Veratron EngineBox - Double Engine

Veratron EngineBox - Double Engine

OM-VERATRON-ENGINEBOXDOUBL-A2C1767000001

$745.02
$827.80 $745.02
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

N/AGauge Size
NoBox Set
8-16vVoltage - Input Range (Volts)
MultifunctionGauge Type

Bring data from two engines into an NMEA 2000 system with the Veratron EngineBox Double Engine. It supports J1939 and analog engine signals, letting boat owners expand a NavBox installation or use the EngineBox on its own when navigation information is not needed.

Key features

  • Converts analog and J1939 engine information to NMEA 2000 for integration with the onboard network.
  • Accepts RPM, resistive and capacitive sensor signals to accommodate older, fully analog engines.
  • Provides dual-engine connections for installations monitoring two engines.
  • Allows input programming through a PC configuration tool.
  • Meets ISO 8846:1990 requirements for installation in engine compartments.
  • Includes a status LED for checking the unit's operating status.

Specifications

  • Brand: Veratron
  • Model: EngineBox Double Engine
  • Gateway functions: Analog to NMEA 2000; J1939 to NMEA 2000
  • J1939 ports: 2
  • NMEA 2000 connection: 1 M12, 5-pin
  • RPM inputs: 2, 0–4 kHz
  • Resistive inputs: Up to 8, 0–400 Ohm
  • Current inputs: 2, 4–20 mA
  • Voltage inputs: 2, 0–5 V
  • Operating temperature: -40°C to +85°C
  • Compliance: ISO 8846:1990

Good to know

Configuration requires the Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software. The PC configuration software is provided free of charge. Listed box contents are an engine cable, cable harness and safety instructions. Sold individually.

Specifications

Gauge SizeN/A
Box SetNo
Voltage - Input Range (Volts)8-16v
Gauge TypeMultifunction
BrandVeratron
Manufacturer part #A2C1767000001
UPC7640178724433
Boxed dimensions6 x 6 x 4 in
Shipping weight1.45 lb
Country of originSWITZERLAND
