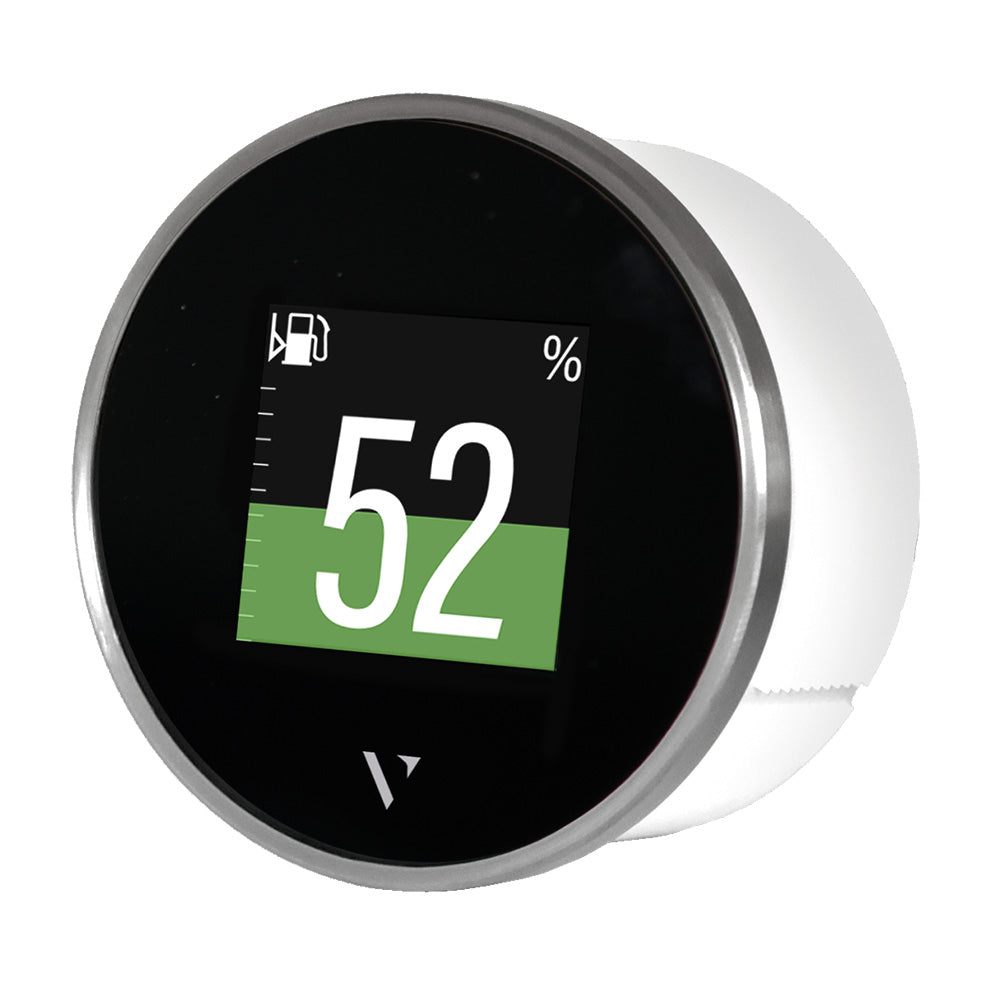

• Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000
1 1

Veratron

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000

OM-VERATRON-52MM21-B00186401

$175.59
$195.10 $175.59
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000

Small but powerful, the VMH Flex is the perfect com­­­pro­mise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens.

Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.

Features:

  • Up to 5 scrollable screens in single or dual layout
  • Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
  • Innovative laser touch-button reliable in every practical condition
  • NMEA 2000® connectivity
  • 2x analog resistive inputs for direct sensor connections
  • Embedded analog to NMEA 2000® converter
  • LIN port for Intelligent Battery Sensor

Technical Specifications:

  • Nominal Voltage - 12/24V
  • Operating Voltage - 9-32V
  • Protection Class - IPX7
  • Dimensions - 60mm (outer), 52mm (mounting hole)
  • Display - 1.44" sun-readable color TFT display
  • Resolution - 125 x 125 pixels
  • Analog Inputs - 1x resistive, 1x frequency
  • Connectors - Tyco / Hirschmann MQS connector 8 pin / Micro-C M12 5Pin
  • Digital Ports - NMEA2000, LIN bus
  • Wireless Interface - NFC

In the Box:

  • 1x VMH Flex – NMEA 2000®
  • 1x 52 mm Spinlock Nut
  • 1x Rubber Sealing Gasket
  • 1x Wiring Harness – NMEA 2000®
  • 1x Safety Instructions and Veratron Card

Specifications

BrandVeratron
Manufacturer part #B00186401
UPC7640190290565
Boxed dimensions4 x 3 x 3 in
Shipping weight0.35 lb

Manuals & documents

Owner's manualPDF ↓
